01 - Cooktop, Burner And Grate Parts


02 - Burner Box, Gas Valves, And Switches


03 - Chassis Parts


04 - Top Venting Parts


05 - Oven Parts


06 - Oven Door Parts


07 - Internal Oven Parts


08 - Optional Parts

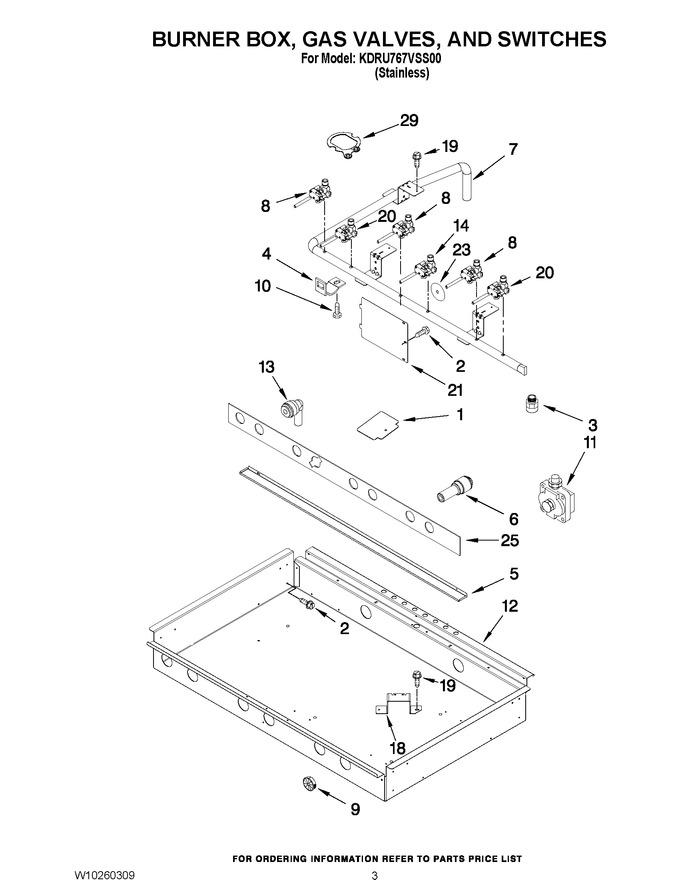

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10287036		Cover, Housing		Appelez-nous	-
2	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
3	4453116		Adapter (male)				$ 179.43
3	4453115		Adapter, Female				$ 126.70
4	W10189107		Bracket, Valve		Appelez-nous	-
5	W10269214		Tray, Drip		Appelez-nous	-
6	W10051680		Reducer, Stem				$ 54.62
7	W10115896		Manifold				$ 104.48
8	W10326645		Valve, Single Lr,cf,rr				$ 162.52
9	W10189097		Bushing, Burner Box				$ 8.00
10	W10189140		Screw, Valve Mtg				$ 6.82
11	W10293267		Regulator, Pressure				$ 313.91
12	W10250425		Burner Box		Appelez-nous	-
13	W10076960		Elbow, Plug In				$ 29.24
14	WPW10385583		Valve, Single (cr)   (Replaces: W10305286)			Immediately	$ 332.10
18	W10280796		Bracket, Burner ( Rr)		Appelez-nous	-
18	W10115929		Bracket, Burner (lf, Lr & Rf)		Appelez-nous	-
19	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
20	WPW10371235		Valve, Gas Lf,rf   (Replaces: W10305287)			Immediately	$ 268.41
21	W10115843		Cover, Ignition		Appelez-nous	-
23	W10189177		Seal, Switch Cover				$ 10.00
25	W11688578		Insulation   (Replaces: W10145622)		Appelez-nous	-
29	8286930		Gasket, Orifice				$ 95.73
NI	W10280797		Tubing, Gas Cr		Appelez-nous	-
NI	W10115910		Tubing, Gas Lf,cf,rf				$ 176.20
NI	W10115908		Tubing, Gas Lr,rr		Appelez-nous	-
NI	W10115911		Tubing, Gas (lf & Rf - Low)				$ 188.34
NI	W10269191		Tubing, Gas (regulator, Tube-pressure)				$ 217.69

    View Diagram in Separate Window       Print Part List
