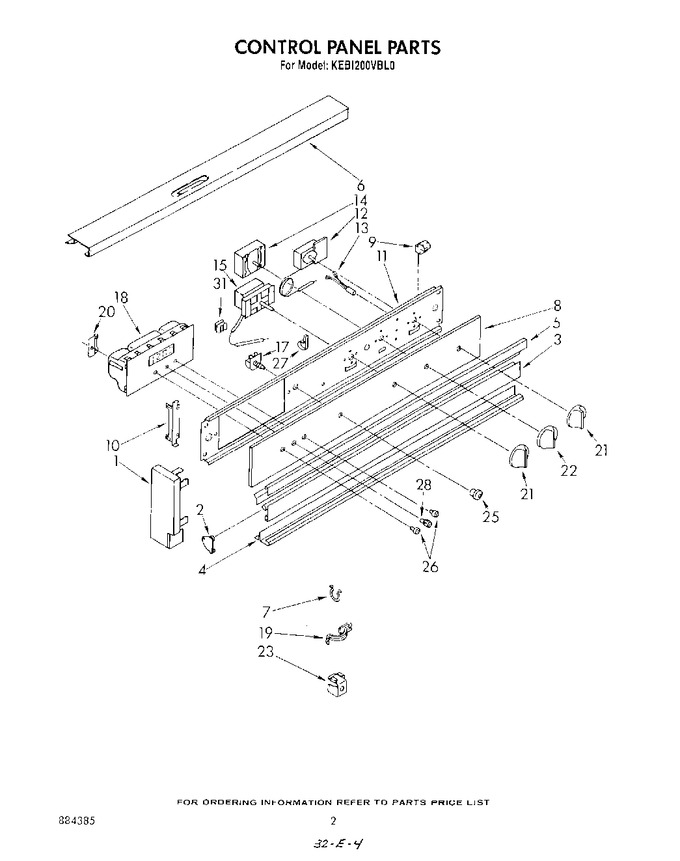

02 - Control Panel
03 - Upper Oven
04 - Lower Oven
05 - Lower Oven Door , Lit/optional
06 - Upper Oven Door
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3148014 | End Cap. L.h. |
|
- | |||||
| 1 | 3148905 | End Cap (washer) |
|
- | |||||
| 1 | 3148015 | End Cap R.h. |
|
- | |||||
| 2 | 3148698 | End Trim, Vent (left Side) |
|
- | |||||
| 2 | 3148697 | End Trim, Vent (right Side) |
|
- | |||||
| 3 | 314190 | Door, Vent |
|
- | |||||
| 4 | 314184 | Trim, Bottom |
|
- | |||||
| 4 | 342043 | Screw (2) |
|
- | |||||
| 5 | 314179 | Trim, Center |
|
- | |||||
| 5 | 342043 | Screw (2) |
|
- | |||||
| 6 | 312713 | Screw, 8-32 X 3/8 (2) |
|
- | |||||
| 6 | 3149437 | Rail, Top |
|
- | |||||
| 7 | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 20.53 | |||||
| 8 | 3148088 | Control Panel, Glass |
|
- | |||||
| 9 | 310823 | Retainer, Glass (4) |
|
- | |||||
| 10 | 98520 | Screw, 8a X 3/8 (4) |
|
- | |||||
| 10 | 310720 | Bracket, Control Panel (2) |
|
- | |||||
| 11 | 3148110 | Bracket, Control |
|
- | |||||
| 12 | 3148937 | Thermostat, Oven Pyro |
|
- | |||||
| 12 | 311491 | Screw (2) |
|
- | |||||
| 13 | 311802 | Light, Indicator (upper Oven On) |
|
- | |||||
| 13 | 3148720 | Light, Indicator (locked On) |
|
- | |||||
| 14 | 3148119 | Selector Switch |
|
- | |||||
| 14 | 155023 | Screw, 8-32 X 1/4 (2) |
|
Immediately | $ 7.91 | ||||
| 15 | 311481 | Thermostat, Oven Standard Clean |
|
- | |||||
| 15 | 311491 | Screw (2) |
|
- | |||||
| 17 | 312581 | Switch, Oven Light |
|
- | |||||
| 17 | 312796 | Lockwasher |
|
- | |||||
| 18 | 3148656 | Timer, Digital |
|
- | |||||
| 19 | WP98997 | Clip, Harness (Replaces: 98997) |
|
$ 11.64 | |||||
| 20 | WP965173 | Screw, 8a X 3/8 (2) (Replaces: 246132) |
|
Immediately | $ 11.87 | ||||
| 20 | 3148108 | Bracket, Timer |
|
- | |||||
| 21 | 3149106 | Knob, Control |
|
- | |||||
| 22 | 3149116 | Knob, Control |
|
- | |||||
| 23 | 3147832 | Adapter, 3-way |
|
- | |||||
| 25 | 313030 | Bezel Switch (1) |
|
- | |||||
| 26 | 3177121 | Knob, Push Button (2) |
|
- | |||||
| 27 | WP308605 | Strain Relief (3) (Replaces: 308605) |
|
$ 11.76 | |||||
| 28 | 3177122 | Knob, Rotary |
|
- | |||||
| 31 | 313570 | Clip, Tube |
|
- |
