Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 328747 Frame, Front Appelez-nous -
1 WP313808 Screw (4)   (Replaces: 313808) Special Order $ 7.60

2 307985 Pin, Hinge Ear (2) Special Order $ 29.54

4 308306 Pushnut (2) Appelez-nous -
5 311056 Screw (3) Appelez-nous -
5 328756 Oven, 30`` Appelez-nous -
6 WP681414 Screw, 10-16 X 1/2 (6)   (Replaces: 343641) In-Stock Immediately $ 7.85

6 310713 Bracket, Oven Mounting (2) Appelez-nous -
7 257314 Plug Button Appelez-nous -
8 98005642 Clip, Therm Bulb (2)   (Replaces: 313382) In-Stock Immediately $ 82.93

9 310770 Insulation Tray Appelez-nous -
9 WP488729 Screw, 8-18 X 1/2 (2)   (Replaces: 3148107) In-Stock Immediately $ 7.79

10 WP488729 Screw, 8-18 X 12/ (4)   (Replaces: 3148107) In-Stock Immediately $ 7.79

10 311774 Support, Side Wrapper (4) Appelez-nous -
11 311005 Side Wrapper (r.h.) Appelez-nous -
11 311008 Side Wrapper (l.h.) Appelez-nous -
12 328801 Hinge Ear, R.h. Appelez-nous -
12 328802 Hinge Ear, L.h. Appelez-nous -
13 310659 Plate, Side Panel (2) Appelez-nous -
13 WP308544 Screw, 10-24 X 1/2 (4)   (Replaces: 308544) In-Stock Immediately $ 7.76

14 329713 Channel Arm (2) Appelez-nous -
15 WP307986 Pin, Hinge (2)   (Replaces: 307986) Special Order $ 13.09

16 307594 Retainer Ring (2) Appelez-nous -
17 WP308125 Anchor, Spring (2)   (Replaces: 308125) Special Order $ 12.16

18 WP308126 Spring, Oven Door (2)   (Replaces: 308126) Special Order $ 42.39

19 310836 Vent, Extension (2) Appelez-nous -
20 310839 Eliminator, Smoke Appelez-nous -
20 WP681414 Screw,10-16 X 1/2   (Replaces: 343641) In-Stock Immediately $ 7.85

21 WP488729 Screw, 8-18 X 1/2 (2)   (Replaces: 3148107) In-Stock Immediately $ 7.79

21 310662 Plate, Cover Appelez-nous -
22 WP308180 Unit, Bake (alt.)   (Replaces: 311470) Special Order $ 107.69

22 WP308180 Unit, Bake   (Replaces: 660576) Special Order $ 107.69

22 WP308180 Unit, Bake (alt.)   (Replaces: 311652) Special Order $ 107.69

23 WP660579 Unit, Broil   (Replaces: 3148040) Special Order $ 156.44

23 246127 Screw, 10-32 X 5/8 (4) Appelez-nous -
24 660556 Socket, Oven Light Appelez-nous -
24 307856 Socket, Oven Light (alt.) Appelez-nous -
24 310208 Socket, Oven Light (alt.) In-Stock Immediately $ 36.34

25 8009 Bulb, Oven Light   (Replaces: 311255) In-Stock Immediately $ 18.67

26 308039 Cover, Light Appelez-nous -
27 308038 Retainer, Light Appelez-nous -
28 WP488729 Screw, 8-18 X 1/2 (2)   (Replaces: 3148107) In-Stock Immediately $ 7.79

28 310693 Baffle, Top Insulation Appelez-nous -
29 3171148 Latch Assembly Appelez-nous -
29 WP488729 Screw, 8-18 X 1/2 (2)   (Replaces: 3148107) In-Stock Immediately $ 7.79

30 98016 Screw (2) Appelez-nous -
30 308185 Safety Switch Appelez-nous -
31 309245 Insulator, Switch Appelez-nous -
32 313035 Terminal, Shield Appelez-nous -
32 309258 Screw, 6 X 3/8b (2) Appelez-nous -
33 310825 Latch, Handle Appelez-nous -
33 308422 Screw, 10-24 X 1/2 (2) Appelez-nous -
34 311253 Knob, Latch Handle Appelez-nous -
34 246135 Screw, 80 X 5/16 Appelez-nous -
35 310345 Switch, Door Special Order $ 94.86

36 3148669 Switch, Lock Appelez-nous -
37 314209 Switch, Percentage Broil Appelez-nous -
37 314215 Screw, No.6 Appelez-nous -
38 314210 Switch, Bake Appelez-nous -
38 314215 Screw, No.6 Appelez-nous -
39 WP8203546 Terminal Block   (Replaces: 258076) In-Stock Immediately $ 30.13

39 WP112432 Nut, (3)   (Replaces: 112432) Special Order $ 7.96

39 308043 Screw, 10-12 X 7/8 Appelez-nous -
40 310458 Cover, Top Appelez-nous -
40 WP488729 Screw, 8-18 X 12/ (4)   (Replaces: 3148107) In-Stock Immediately $ 7.79

41 310690 Side Trim (right Side) Appelez-nous -
41 310686 Side Trim (left Side) Appelez-nous -
42 310459 Panel, Back (2) Appelez-nous -
42 WP488729 Screw, 8-18 X 1/2 (6)   (Replaces: 3148107) In-Stock Immediately $ 7.79

43 307748 Screw, 10a X 1/2 Black (3) Appelez-nous -
43 329019 Hood, Lower Vent Appelez-nous -
44 311582 Stand Off Appelez-nous -
44 WP488729 Screw, 8-18 X 1/2   (Replaces: 3148107) In-Stock Immediately $ 7.79

45 4396923 Pan, Broiler   (Replaces: 3147845) In-Stock Immediately $ 57.82

46 4396923 Grid, Broiler   (Replaces: 3147563) In-Stock Immediately $ 57.82

47 308172 Rack, Oven (offset) Appelez-nous -
47 308173 Rack, Oven (straight) Appelez-nous -
48 WP488729 Screw, 8-18 X 1/2 (9)   (Replaces: 3148107) In-Stock Immediately $ 7.79

48 311011 Cover, Rear Appelez-nous -
50 312320 Shield, Insulation Appelez-nous -
50 WP488729 Screw, 8-18 X 1/2   (Replaces: 3148107) In-Stock Immediately $ 7.79

51 3148688 Relay, Light Appelez-nous -
51 3147001 Screw, 8 X 1/2 (2) Appelez-nous -
52 3147864 Insulator Appelez-nous -
54 WP488729 Screw, 8-18 X 12/ (4)   (Replaces: 3148107) In-Stock Immediately $ 7.79

54 WP488627 Screw (4)   (Replaces: 342055) Special Order $ 7.57

54 310719 Bracket, Control Panel Mounting (2) Appelez-nous -
56 311982 Coverplate Appelez-nous -
308043 Screw, 10-12 X 7/8 (2) Appelez-nous -
WP488729 Screw, 8-18 X 1/2 (2)   (Replaces: 3148107) In-Stock Immediately $ 7.79


    View Diagram in Separate Window     Print Icon   Print Part List

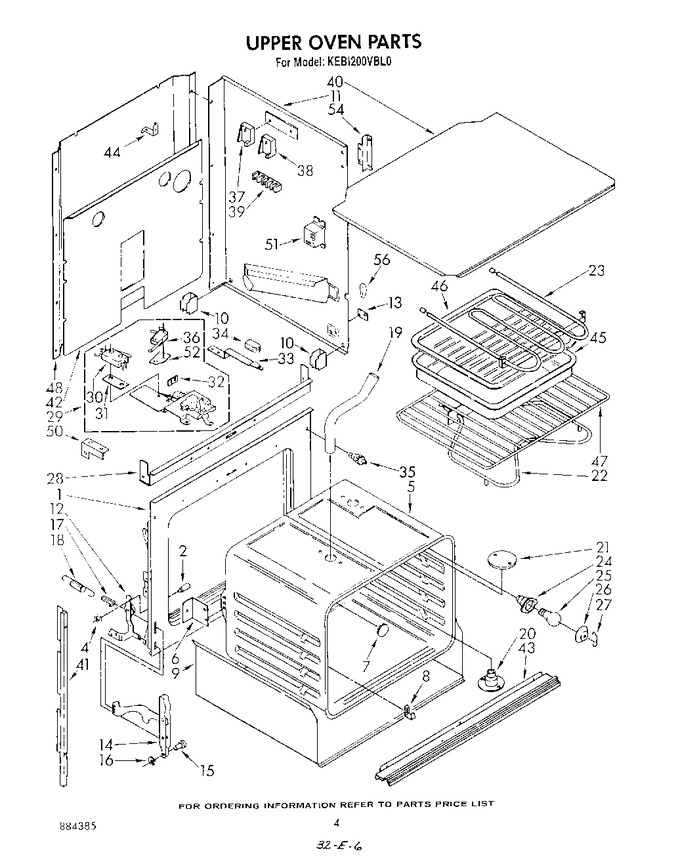

Diagram for KEBI200VBL0
