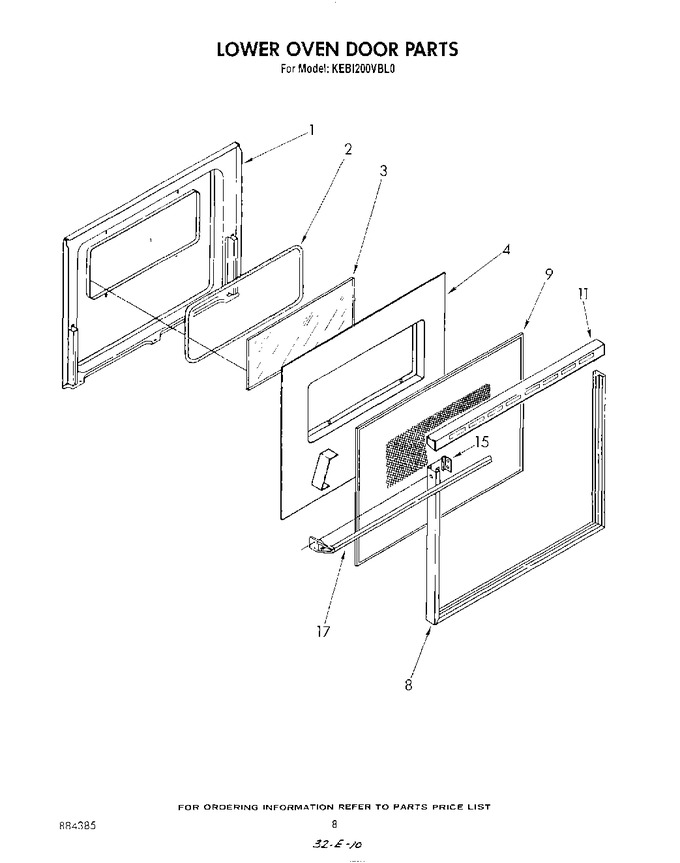

05 - Lower Oven Door , Lit/optional


06 - Upper Oven Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3170708		Liner, Door		Appelez-nous	-
1	WP488729		Screw, 8-18 X 1/2 (3)   (Replaces: 3148107)			Immediately	$ 8.28
1	311056		Screw, (4)		Appelez-nous	-
2	3148183		Seal, Door				$ 7.41
3	3148179		Glass, Inner		Appelez-nous	-
4	3148443		Screw (6)		Appelez-nous	-
4	3148793		Retainer, Insulation		Appelez-nous	-
8	3148784		Frame, Door		Appelez-nous	-
9	3148185		Glass, Outer		Appelez-nous	-
11	307748		Screw, 10a X 1/2 Black (2)		Appelez-nous	-
11	3148606		Top, Door Frame		Appelez-nous	-
15	314235		Clip (2)		Appelez-nous	-
17	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 137.86
17	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
17	3147636		Handle, Oven Door		Appelez-nous	-
17	WP355515		Screw, Handle (2)   (Replaces: 355515)				$ 8.48
17	350806		18 Ga. 80~c Rating (yellow)		Appelez-nous	-
17	10875		Wire (16 Ga. 80 C Blue)			Immediately	$ 20.64
17	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
17	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
17	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
17	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
17	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
17	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
17	242826		White		Appelez-nous	-
17	242829		Red		Appelez-nous	-
17	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
17	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
17	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
17	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
17	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
17	242832		Yellow		Appelez-nous	-
17	242831		Wire (14 Ga. 200 C Red)				$ 342.23
22	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
22	591014		Adhesive Loctite (1/3 Oz.)		Appelez-nous	-
22	WP75614		Line, Splice (5)   (Replaces: 309551)				$ 51.81
22	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
22	261881		Rotisserie Kit (rck 79)		Appelez-nous	-
22	832925		Rack, Cooking (bi-level)		Appelez-nous	-
22	350956		Paint, Spray 13 Oz. (almond)				$ 54.01
22	3149116		Knob, Control		Appelez-nous	-
22	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 117.11
22	WP261869		Citrine White (microwave Liner)   (Replaces: 261869)				$ 27.83
22	242860		Blue Gray		Appelez-nous	-
22	242757		Paint, Touch-up 1 Oz. (oven Liner) (light Gray)		Appelez-nous	-
22	8212471		Bronzetone   (Replaces: 242756)			Immediately	$ 87.22
22	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
22	261890		Harvest Gold		Appelez-nous	-
22	285365		Toast		Appelez-nous	-
22	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
22	786020		Paint, Pressurized Spray (12 Oz.) (black)		Appelez-nous	-
22	285006		Spray Paint (black) 13 Oz.   (Replaces: 830864)				$ 59.89
22	350942		Primer				$ 94.14
22	350941		Leveler (primer)		Appelez-nous	-
22	261900		Citrine White 5 Oz. (m/w Liner)				$ 59.89
22	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
22	978883		Almond		Appelez-nous	-
22	261891		Harvest Gold		Appelez-nous	-
22	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
22	285368		Platinum		Appelez-nous	-
22	786032		Ebony (microwave)		Appelez-nous	-
22	978849		Cleaner, (8oz.) Black Glass				$ 15.82
22	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 55.47
22	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 55.47
22	261582		Grease		Appelez-nous	-
22	WP482338		Sealer, Silastic (3 Oz.)   (Replaces: 482338)			Immediately	$ 63.51
