Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP488729 Screw, 8-18 X 1/2 (6)   (Replaces: 3148107) In-Stock Immediately $ 7.79

1 3170706 Liner, Door Appelez-nous -
3 3148441 Seal, Flange (2) Appelez-nous -
4 3148178 Glass, Reflective Appelez-nous -
5 3148183 Seal, Door Special Order $ 7.41

6 3148723 Retainer, Appelez-nous -
7 1N4004 Glass, Inside   (Replaces: 313003) Appelez-nous -
8 3148187 Retainer, Glass (2) Appelez-nous -
9 3148182 Bumper (4) Appelez-nous -
10 148185 Glass Panel Appelez-nous -
11 3148184 Foil, Door Appelez-nous -
12 3147636 Handle, Oven Door Appelez-nous -
12 WP355515 Screw, 8 X 7/8 (4)   (Replaces: 355515) Special Order $ 7.67

13 3148223 Sheild, Door Appelez-nous -
14 WP355515 Screw (4)   (Replaces: 355515) Special Order $ 7.67

14 3148606 Top, Door Appelez-nous -
15 3148282 Clip, Mtg (2) Special Order $ 8.69

16 3148234 Frame, Inner Glass Appelez-nous -
16 3148443 Screw (6) Appelez-nous -
17 WP3169203 Glass, Outer   (Replaces: 313005) Special Order $ 150.79

19 3148235 Frame, Panel Appelez-nous -

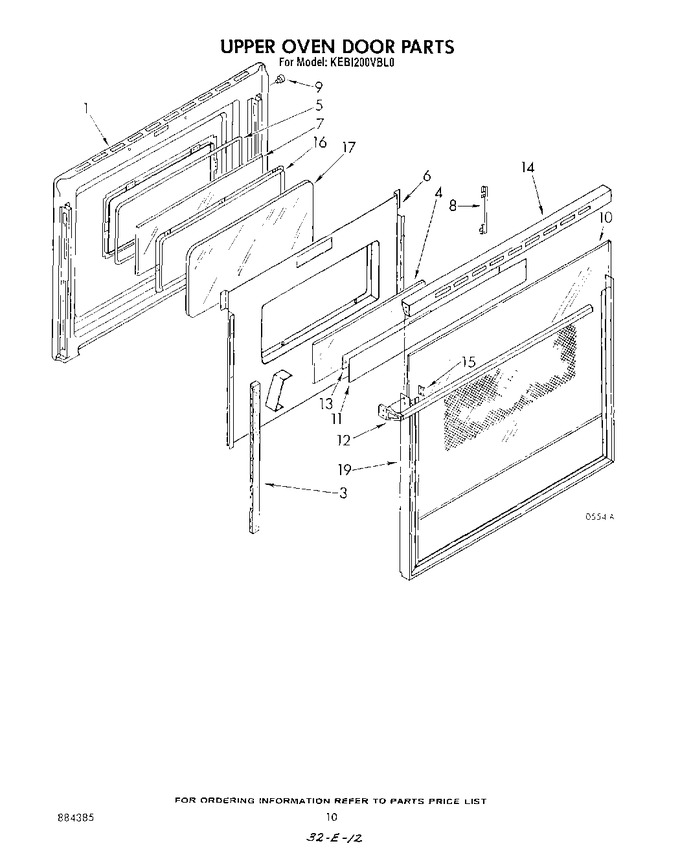

    View Diagram in Separate Window     Print Icon   Print Part List
