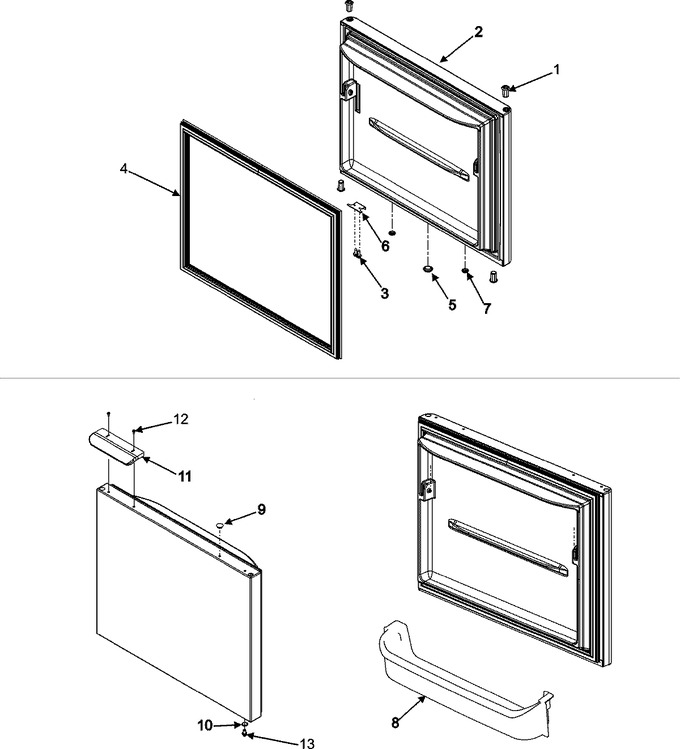

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67004978		Bushing, Door (blk)   (Replaces: 67003369)	10			$ 21.05
2	67004417		Fz Dr Foam Assy (stnls)	10	Appelez-nous	-
3	WPW10348409		Screw, Mounting   (Replaces: M0211533)	10		Immediately	$ 7.76
4	WPW10436250		Gasket, Fz Door (blk)   (Replaces: 67003555)	10		Immediately	$ 347.99
5	A3080001		Plug, Button (blk)	10	Appelez-nous	-
6	W11708403		Stop, Door (blk)   (Replaces: 10447109)	10		Immediately	$ 14.05
7	67004838		Plug, Button (blk)   (Replaces: 67001016)	10			$ 10.68
8	67003934		Retainer, Fz Door	10			$ 22.73
9	WP12246610		Plug, Handle Hole (stnls)   (Replaces: 12246606)	10		Immediately	$ 7.76
10	WPM0274062		Shim, Non Metal (blk)   (Replaces: M0274062)	10		Immediately	$ 24.43
11	12647901S		Spacer, Handle (stnls)   (Replaces: 67002470)	10			$ 14.62
11	WP67003572		Handle, Fz Dr (stnls)   (Replaces: 67003572)	10			$ 169.22
12	67006529		Screw, Sm (stnls)   (Replaces: M0213530)	10			$ 12.83
13	67007018		Pin, Hinge (btm)   (Replaces: 10200801)	10		Immediately	$ 8.21
