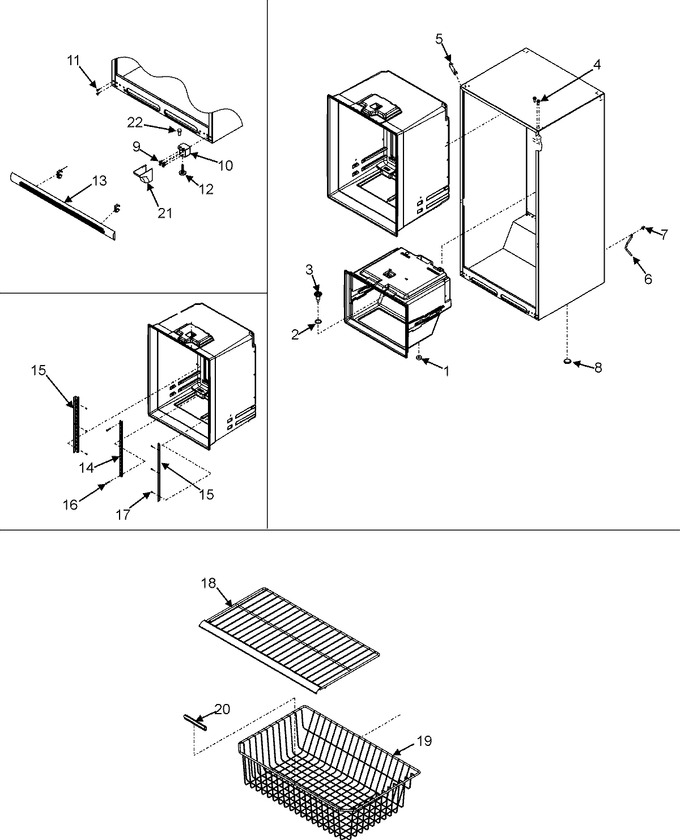

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPB8381501		Gasket, Drain Tube   (Replaces: B8381501)	10			$ 7.78
2	WPM0500703		Seal, O Ring   (Replaces: M0500703)	10			$ 11.47
3	W10815413		Funnel, Drain   (Replaces: D7753903)	10		Immediately	$ 51.50
4	A4539607		Pop Rivet	10	Appelez-nous	-
5	67003485		Cover, Corner (blk)	10		Immediately	$ 22.14
6	67001066		Tube, Drain	10			$ 55.82
7	67001067		Clip, Drain Tube	10			$ 9.66
8	A3076901		Plug-button	10			$ 5.70
9	67003858		Screw, Bottom Hinge	10	Appelez-nous	-
10	67001068		Hinge, Bottom E-ct (blk)	10	Appelez-nous	-
11	WP67006715		Screw   (Replaces: M0233847)	10			$ 7.55
12	W11177593		Brake, Foot   (Replaces: 10354001)	10			$ 12.18
13	12627302		Clip, Toe Grille	10			$ 5.84
13	67002224		Grille Assy., Toe (blk)	10			$ 38.59
14	67001073		Ladder, Center	10			$ 56.89
15	67001317		Ladder, Sides	10			$ 39.13
16	W10709795		Screw   (Replaces: M0231425)	10			$ 13.79
17	67006425		Screw, Sm   (Replaces: M0238642)	10		Immediately	$ 7.30
18	67001075		Shelf, Frz.	10	Appelez-nous	-
19	67003330		Basket, Lower 33``	10	Appelez-nous	-
20	10508506		Handle, Basket/shelf	10	Appelez-nous	-
21	12561901B		Cover, Lwr Hinge (blk)	10			$ 11.62
22	M0310343		Plug, Button (wht)	10			$ 11.20
