MBF2254HES | Leon's : Appliance Model Lookup

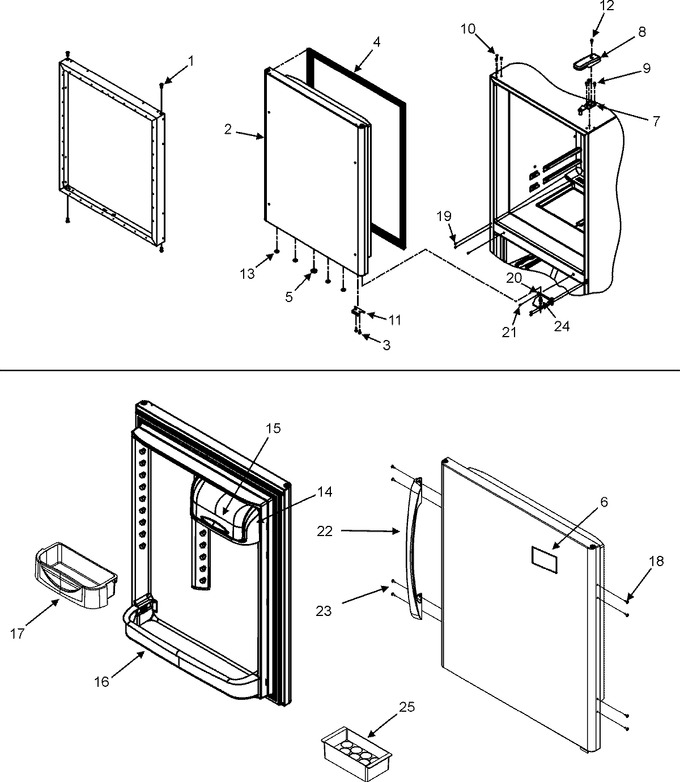

Diagram #	Part Number	Description	Series	Availability	Ships	Price
1	67004978	Bushing, Door (blk) (Replaces: 67003369)	10			$ 21.05
2	67004362	Door Assy., Ref. Foam (stnls)	10	Appelez-nous	-
3	WPW10348409	Screw, Mounting (Replaces: M0211533)	10		Immediately	$ 7.76
4	WPW10436248	Gasket, Ref Door (blk) (Replaces: 67003553)	10			$ 286.97
5	A3080001	Plug, Button (blk)	10	Appelez-nous	-
6	2324038	Nameplate (Replaces: 67003877)	10			$ 68.18
7	WP12566606ED	Hinge, Top (blk) (Replaces: 67001011)	10		Immediately	$ 44.89
8	67001012	Cover, Top Hinge (blk)	10			$ 47.34
9	R9800670	Screw, Tf (Replaces: M0238731)	10			$ 9.38
10	WP12246608	Plug, Top Hinge Button (blk) (Replaces: M0310731)	10		Immediately	$ 7.76
11	W11708403	Stop, Door (blk) (Replaces: 10447109)	10		Immediately	$ 14.05
12	WPW10348409	Screw, Mounting (Replaces: M0211533)	10		Immediately	$ 7.76
13	67004838	Plug, Button (blk) (Replaces: 67001016)	10			$ 10.68
14	WP67001279	Tray, Dairy (Replaces: 67001279)	10		Immediately	$ 83.82
15	WP67003637	Door, Dairy (Replaces: 67003637)	10		Immediately	$ 78.73
16	67001748	Retainer, Door	10	Appelez-nous	-
17	67004040	Bucket, Ref Dr (med)	10			$ 91.42
18	WP12246610	Plug, Handle Hole (stnls) (Replaces: 12246606)	10		Immediately	$ 7.76
19	WP489349	Screw, Tf (Replaces: M0239730)	10		Immediately	$ 7.88
20	WP12607104ED	Hinge, Center (blk) (Replaces: 67001167)	10			$ 152.73
21	W11573362	Screw, T. F. (Replaces: M0226233)	10			$ 14.02
22	12846204S	Handle Assy., Ref Door (stnls) (Replaces: 67004045)	10			$ 393.56
23	67004048	Screw (clear)	10	Appelez-nous	-
24	WPM0274062	Shim, Non Metal (blk) (Replaces: M0274062)	10		Immediately	$ 24.43
24	WP67006744	Pin, Hinge (ctr) (Replaces: 10351001)	10			$ 8.27
25	67215-2	Tray, Egg	10	Appelez-nous	-
