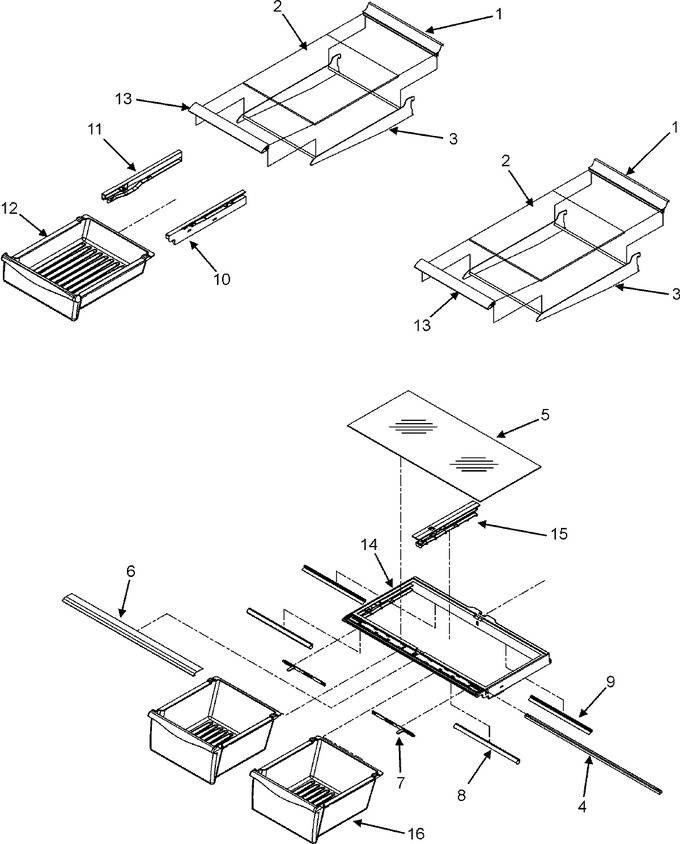

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10946008		Extr, Rear Shelf	10	Appelez-nous	-
2	10370099		Glass, Shelf	10	Appelez-nous	-
3	10460107		Frame, Shelf	10	Appelez-nous	-
4	WP12227303WD		Brace, Crisper E-ct   (Replaces: 67001059)	10			$ 105.95
5	WP67006878		Glass, Crisper   (Replaces: 67001060)	10		Immediately	$ 185.19
6	WPW10231343		Extr, Front Crisper   (Replaces: 67004369)	10		Immediately	$ 99.65
7	WP67005864		Slide, Humidity Control   (Replaces: Y67001287)	10		Immediately	$ 7.81
8	67001063		Seal, Front Crisper	10			$ 38.97
9	67001768		Seal, Rear Crisper	10			$ 9.45
10	WP67001053		Glide (rt)   (Replaces: 67001053)	10		Immediately	$ 9.24
10	W11233072		Screw   (Replaces: M0214931)	10		Immediately	$ 14.02
11	W11233072		Screw   (Replaces: M0214931)	10		Immediately	$ 14.02
11	WP67001054		Glide (lt)   (Replaces: 67001054)	10		Immediately	$ 8.40
12	WP67001314		Pan, Deli   (Replaces: 67001314)	10			$ 155.33
13	10459927		Extr, Front Shelf	10	Appelez-nous	-
14	WPW10568041		Frame, Crisper   (Replaces: 67001056)	10		Immediately	$ 137.23
15	WPW10671238		Rail, Center Crisper   (Replaces: 67001057)	10		Immediately	$ 112.82
16	WP67002633		Pan, Crisper   (Replaces: 67002633)	10		Immediately	$ 149.12
