01 - Cabinet, Literature
02 - Refrigerator Liner
03 - Refrigerator Shelf
04 - Freezer Liner
05 - Refrigerator Door
06 - Freezer Door
07 - Air Flow
08 - Control
09 - Unit
SELECT A DIAGRAM
New Model Search:

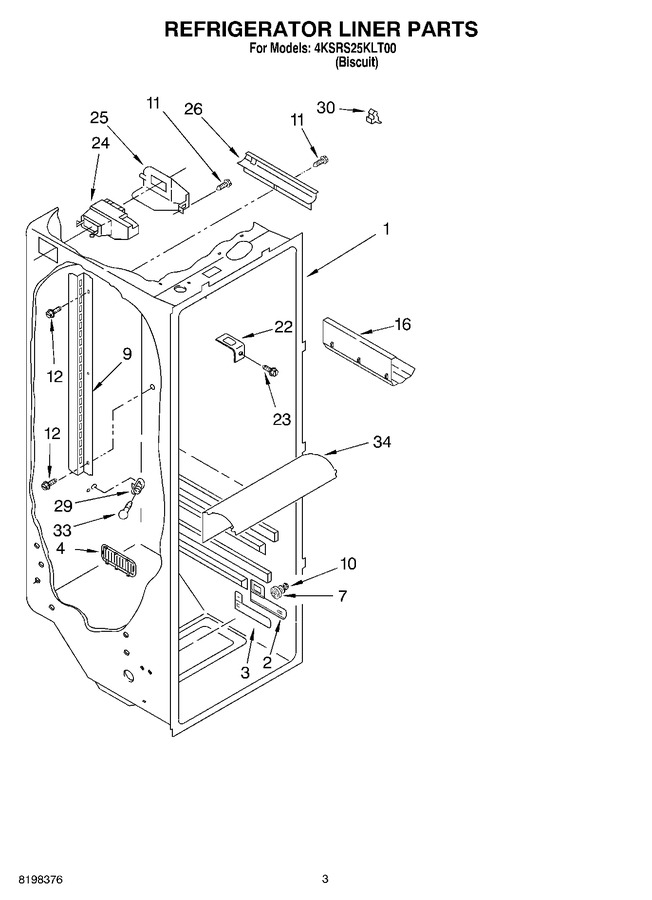

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | 2194744 | Escutcheon, Meat Pan Control |
|
$ 91.28 | |||||
| 3 | 2182757 | Slide Meat Pan Control |
|
$ 75.15 | |||||
| 4 | 2182147 | Louver |
|
- | |||||
| 7 | W11223328 | Stud Assy (Replaces: 2196485) |
|
Immediately | $ 14.07 | ||||
| 9 | 2206273 | Ladder, Shelf (2) |
|
- | |||||
| 10 | WP3-24004-109 | Screw (Replaces: 3400894) |
|
$ 8.05 | |||||
| 11 | W10759522 | Screw (2) (Replaces: 486298) |
|
$ 7.75 | |||||
| 12 | WP488729 | Screw (Replaces: 487539) |
|
Immediately | $ 7.79 | ||||
| 16 | W10777924 | Rack, Wine & Egg (Replaces: 2179404) |
|
$ 23.60 | |||||
| 22 | WP2256085 | Bracket, Retainer (Replaces: 1123919) |
|
$ 34.38 | |||||
| 23 | WP488488 | Screw (2) (Replaces: 489290) |
|
$ 7.68 | |||||
| 24 | WPW10151374 | Air Diffuser Assembly (Replaces: 2209753) |
|
Immediately | $ 99.78 | ||||
| 25 | 2152019 | Air Diffuser Cover |
|
$ 86.03 | |||||
| 26 | 2150331 | Cover, Conduit |
|
$ 24.40 | |||||
| 29 | 4387478 | Socket (Replaces: 2162085) |
|
Immediately | $ 110.16 | ||||
| 30 | 2215823 | Clip, Air Duct (Replaces: 842534) |
|
$ 10.42 | |||||
| 33 | WP67002552 | Light Bulb (Replaces: 851682) |
|
Immediately | $ 11.75 | ||||
| 34 | 2209769 | Light Lens |
|
- |
