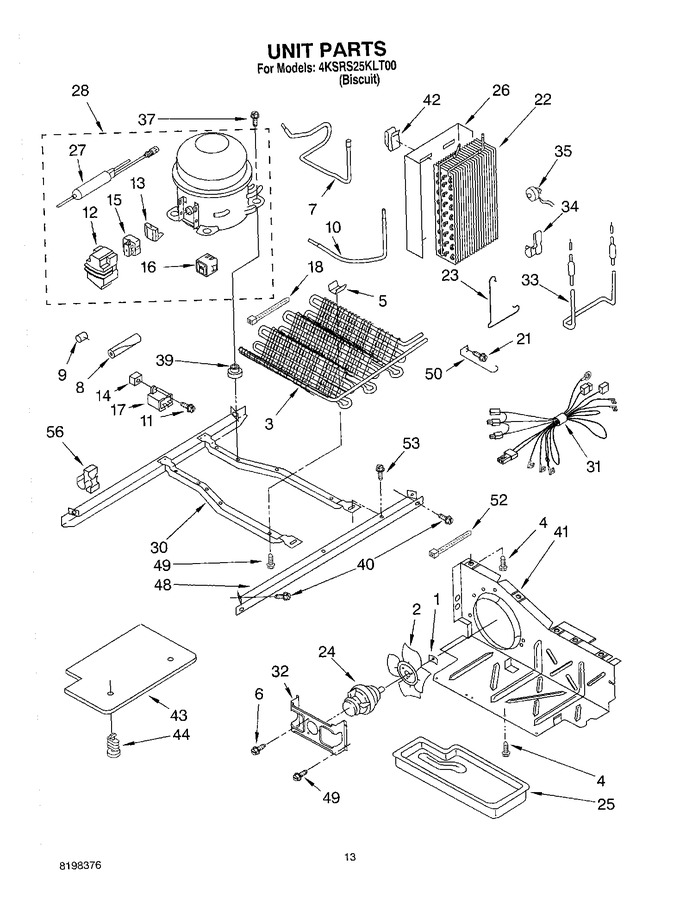

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP486692		Speed Nut   (Replaces: 486692)				$ 7.82
2	2190685		Fan, Blade				$ 52.00
3	2204484		Condenser Assembly		Appelez-nous	-
4	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.83
5	W10683556		Clip, Condenser   (Replaces: 2216914)				$ 18.46
6	681390		Screw   (Replaces: 489099)				$ 13.06
7	2205765		Tube Suction				$ 36.04
8	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 20.30
9	WP2158826		Dampener   (Replaces: 2158826)				$ 1.73
10	2211760		Tube, Condenser To Heat Loop		Appelez-nous	-
11	W11693756		Screw   (Replaces: 488687)			Immediately	$ 14.06
12	WP2162358		Cover   (Replaces: 4387731)				$ 90.75
13	2176790		Overload ((service))   (Replaces: 4387960)				$ 124.17
14	509812		Grommet		Appelez-nous	-
15	WP2262184		Relay (service)   (Replaces: 4387957)				$ 117.58
16	2188509		Start-device, Combination (start Relay And Overload) For Production Compressor Only)		Appelez-nous	-
17	WP2201147		Capacitor (service)   (Replaces: 4387874)				$ 128.97
17	WP2201147		Capacitor (production)   (Replaces: 2201147)				$ 128.97
18	WPW10339879		Wire Tie   (Replaces: 2221306)				$ 7.90
21	WP489478		Screw   (Replaces: 489478)				$ 7.75
22	WP2188823		Evaporator   (Replaces: 2209611)			Immediately	$ 363.32
23	2161324		Clamp		Appelez-nous	-
24	8201703		Fan, Motor   (Replaces: 2188539)				$ 354.00
25	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 113.18
26	2149294		Heat Shield		Appelez-nous	-
27	W10843121		Drier   (Replaces: 2199167)			Immediately	$ 52.57
28	W10309997		Compressor (includes Items 12, 13, 16, 17, 27) (also Order   (Replaces: 2187153)				$ 556.12
28	876765		Tube Kit			Immediately	$ 86.33
30	2304904		Unit Mounting Frame   (Replaces: 2157397)		Appelez-nous	-
31	2187404		Unit, Harness		Appelez-nous	-
32	WP2181929		Fan, Motor Bracket   (Replaces: 2181929)				$ 12.31
33	WPW10123653		Heater, Defrost   (Replaces: 2188177)				$ 156.66
34	2161330		Clip		Appelez-nous	-
35	WPW10225581		Bi-metal, Defrost   (Replaces: 2196155)			Immediately	$ 50.77
37	W11661574		Screw   (Replaces: 489473)				$ 13.61
39	WP4387558		Grommet (4) (service)   (Replaces: 4387558)				$ 6.95
39	W11661108		Grommet (4) (production)   (Replaces: 2183042)				$ 14.49
40	489340		Screw		Appelez-nous	-
41	W10896764		Air Baffle   (Replaces: 2196202)				$ 96.38
42	2155547		Clip, Heat Shield		Appelez-nous	-
43	2200468		Unit Cover, Bottom		Appelez-nous	-
44	489396		Clip				$ 10.72
48	2305374		Unit Mounting Rail   (Replaces: 1127911)				$ 80.64
49	W11544659		Screw   (Replaces: 8281232)				$ 13.67
50	1110663		Guard, Fan		Appelez-nous	-
52	WPW10339879		Strap   (Replaces: 2172840)				$ 7.90
53	WP489427		Screw   (Replaces: 489427)				$ 7.47
56	W11729596		Kims9   (Replaces: 2155468)			Immediately	$ 150.98
56	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
56	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.18
56	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 117.94
56	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 173.95
56	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 231.56
56	876370		Kit, Insulation (14 Pcs. X 3`` X 24`` X 48``)   (Replaces: 876305)				$ 231.56
56	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
56	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 17.91
56	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
56	4392901		Paint, Pressurized Spray (12oz.) (biscuit)		Appelez-nous	-
56	350956		Xenamel, Almond (12 Oz. Spray Can)				$ 51.44
56	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
56	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
56	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
56	4392900		Paint, Bulk (1 Qt.) (biscuit) (uncut)		Appelez-nous	-
56	1117510		Torx Key				$ 5.84
56	2208280		Clip, Wire & Tube		Appelez-nous	-
56	978026		Valve, Access (5/16``)			Immediately	$ 128.09
56	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
56	978028		Valve, Access (1/2)		Appelez-nous	-
56	978029		Valve Access (5/8``)				$ 93.85
56	978030		Valve, Access (3/4``)				$ 130.71
56	876764		Valve, Access(3/16``)			Immediately	$ 91.35
56	350942		Primer, White (12 Oz. Spray Can)				$ 89.66
56	285006		Enamel, Black (12 Oz. Spray Can)   (Replaces: 350939)				$ 57.04
56	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
56	4392899		Brush Touch-up Kit (biscuit			Immediately	$ 26.45
56	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
56	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
56	876370		Kit, Insulation 2 Pcs. X 3`` X 24`` X 48``)				$ 231.56
56	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
56	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 49.29
56	606755		Bag, Insulation (36-5/8`` X 46``)				$ 78.45
56	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
56	833938		Kit, Terminal Connector				$ 8.07
56	2006783		Cleaner, Stainless Steel		Appelez-nous	-
56	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
