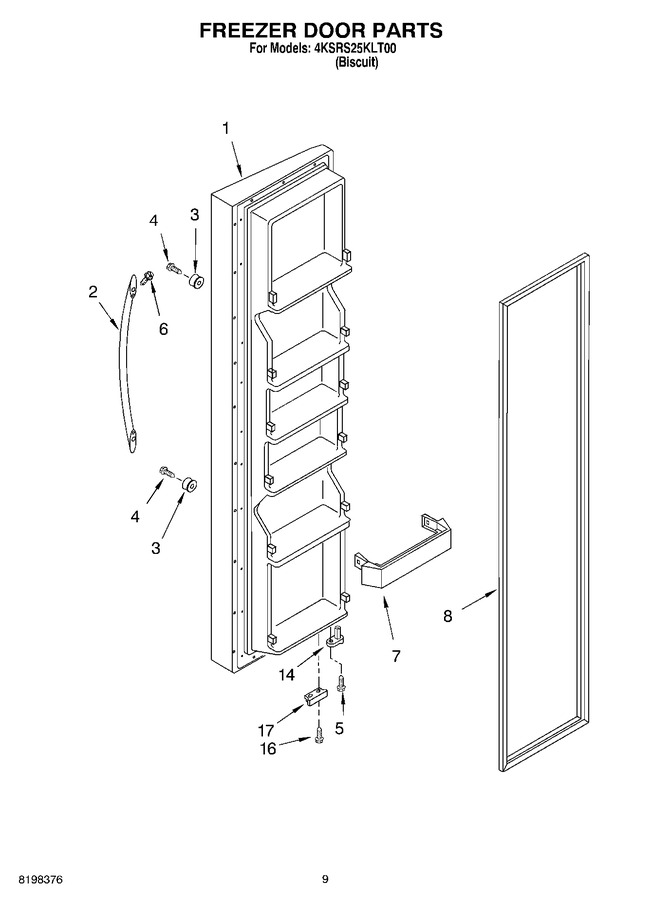

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2219854T		Freezer Door (includes No.8 And Dispenser Front Parts) (biscuit)		Appelez-nous	-
2	2188635T		Handle (biscuit)		Appelez-nous	-
3	2203690		Stud, Handle Mounting		Appelez-nous	-
4	WP488163		Screw   (Replaces: 488208)				$ 7.54
5	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
6	98654		Screw, Set		Appelez-nous	-
7	2171070		Shelf Bin (4)		Appelez-nous	-
8	2159074		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221303)				$ 310.19
14	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
16	WP489483		Screw   (Replaces: 489420)				$ 10.87
17	2200082		Bracket, Door Stop (chrome)				$ 5.83
