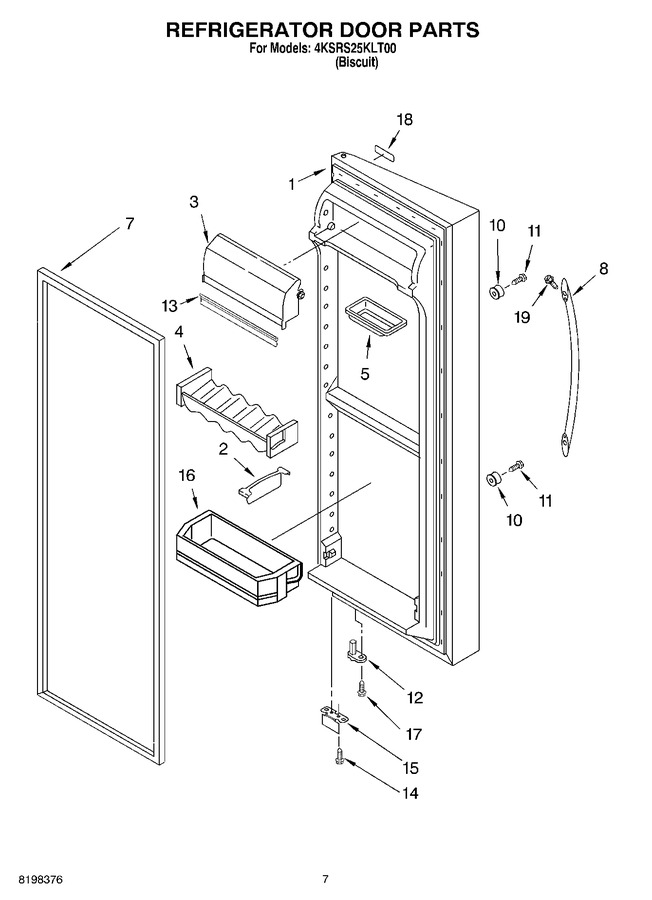

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2206779T		Refrigerator Door (includes No.7) (biscuit)		Appelez-nous	-
2	2195497		Divider (4)		Appelez-nous	-
3	2182399		Door, Compartment		Appelez-nous	-
4	2193409		Beverage Holder				$ 48.13
5	2165792		Butter, Dish		Appelez-nous	-
7	2159075		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221302)			Immediately	$ 317.14
8	2188635T		Handle (biscuit)		Appelez-nous	-
10	2203690		Stud, Handle Mounting		Appelez-nous	-
11	WP488163		Screw   (Replaces: 488208)				$ 7.54
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
13	2159124		Gasket		Appelez-nous	-
14	WP489483		Screw   (Replaces: 489420)				$ 10.87
15	2200082		Bracket, Door Stop (chrome)				$ 5.83
16	2171063		Shelf Bin (4)		Appelez-nous	-
17	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
18	2212761		Nameplate (biscuit)		Appelez-nous	-
19	98654		Screw, Set		Appelez-nous	-
