SELECT A DIAGRAM

01 - Cover Sheet

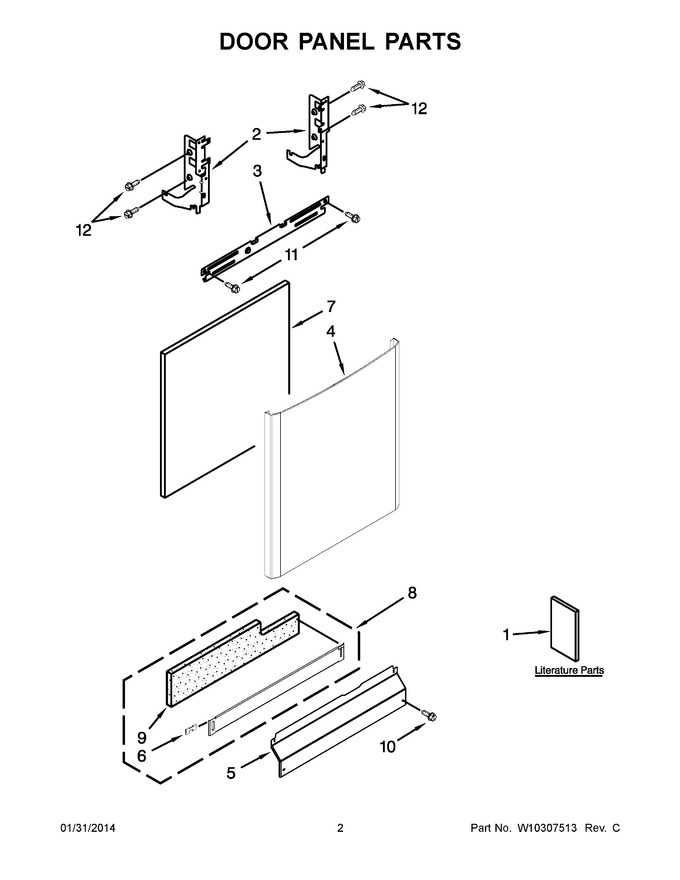

02 - Door Panel Parts


03 - Control Panel And Latch Parts


04 - Inner Door Parts


05 - Fill, Drain And Overfill Parts


06 - Tub And Frame Parts


07 - Pump And Motor Parts


08 - Upper Wash And Rinse Parts


09 - Heater Parts


10 - Upper Rack And Track Parts


11 - Lower Rack Parts


12 - Lower Washarm Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10255114		Guide, Use & Care (english/french)		Appelez-nous	-
1	W10255095		Instructions, Installation		Appelez-nous	-
1	W10255026		Energy Guide		Appelez-nous	-
1	W10142800		Tech Sheet		Appelez-nous	-
2	W11806565		Arm, Hinge (left Hand)   (Replaces: 8534854)			Immediately	$ 142.39
2	W11806608		Arm, Hinge (right Hand)   (Replaces: 8534853)			Immediately	$ 142.24
3	8268983		Brace, Door Cross				$ 38.77
4	W10199758		Panel Front (black)				$ 128.78
4	W10199759		Panel Front (white)				$ 128.31
4	W10199761		Panel Front (stainless)				$ 157.37
5	W11763736		Access Panel (black)   (Replaces: 8573255)			Immediately	$ 42.25
5	WPW10441007		Access Panel (white)   (Replaces: 8573256)				$ 170.94
6	WP8269016		Clip, Ground   (Replaces: 8269016)				$ 11.21
7	WPW10073520		Insulation, Door   (Replaces: W10073520)				$ 96.23
8	W10871196		Toe Panel (black)   (Replaces: W10205336)				$ 174.04
8	W10799406		Toe Panel (white)   (Replaces: W10205337)				$ 170.13
9	W10831329		Insulation Toe Panel   (Replaces: W10073540)			Immediately	$ 43.30
10	WP3400836		Screw (white)   (Replaces: 3400836)				$ 8.10
10	WP302868		Screw (black)   (Replaces: 302868)			Immediately	$ 8.18
11	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40
12	WP3400071		Screw   (Replaces: 3400071)				$ 8.26

    View Diagram in Separate Window       Print Part List
