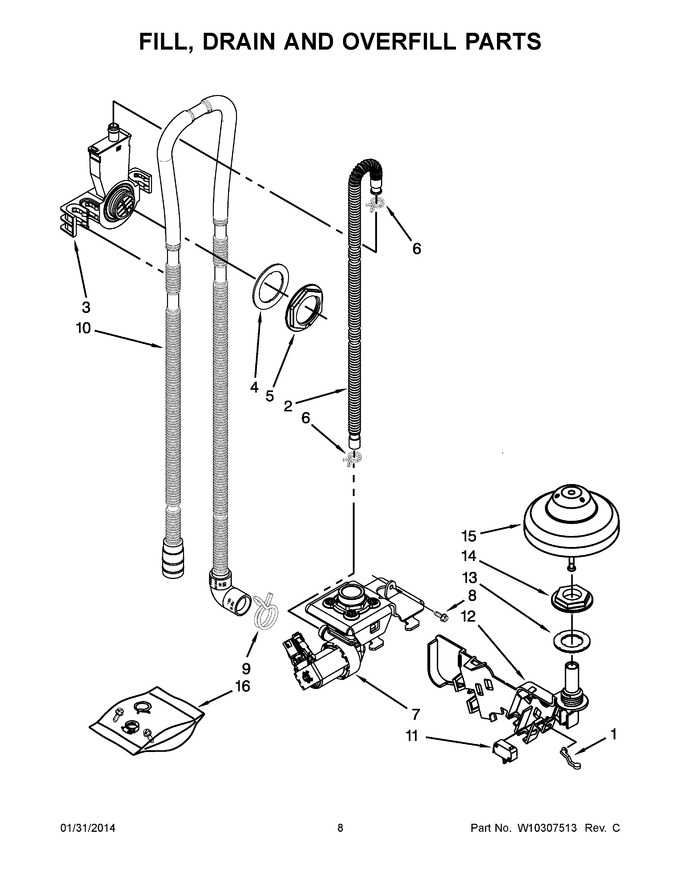

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP8268892 | Lever, Overflow Switch (Replaces: 8268892) |
|
Immediately | $ 57.46 | ||||
| 2 | W10878507 | Hose (Replaces: 8531412) |
|
Immediately | $ 77.06 | ||||
| 3 | WPW10195536 | Inlet, Water (also Order Item 4) (Replaces: W10195536) |
|
Immediately | $ 86.31 | ||||
| 4 | WP8531323 | Gasket (Replaces: 8531323) |
|
Immediately | $ 41.07 | ||||
| 5 | WPW10213825 | Nut, Water Inlet (also Order Item 4) (Replaces: W10213825) |
|
$ 8.39 | |||||
| 6 | WP596669 | Clamp, Hose (Replaces: 371505) |
|
Immediately | $ 8.82 | ||||
| 7 | W10648041 | Fill Valve Assembly (Replaces: W10219505) |
|
Immediately | $ 107.33 | ||||
| 8 | WP489069 | Screw (Replaces: 304392) |
|
Immediately | $ 8.40 | ||||
| 9 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 8.52 | ||||
| 10 | WPW10545278 | Drain Loop With Check Valve (Replaces: W10137608) |
|
Immediately | $ 74.41 | ||||
| 11 | WP8268909 | Switch, Overfill Support (Replaces: 8268909) |
|
$ 82.06 | |||||
| 12 | 8193506 | Housing, Overfill (includes Item 13) (Replaces: 8545946) |
|
Immediately | $ 126.20 | ||||
| 13 | WP8531743 | Gasket, Flat (Replaces: 8531743) |
|
Immediately | $ 47.27 | ||||
| 14 | WP9741998 | Nut, Standpipe (Replaces: 9741998) |
|
$ 7.97 | |||||
| 15 | WP8268895 | Float And Retainer Assembly (Replaces: 8268895) |
|
$ 105.41 | |||||
| 16 | WPW10292170 | Micellaneous Parts Bag (includes 2 Screws And 2 Hose Clamps) (Replaces: 8269297) |
|
$ 96.92 |
