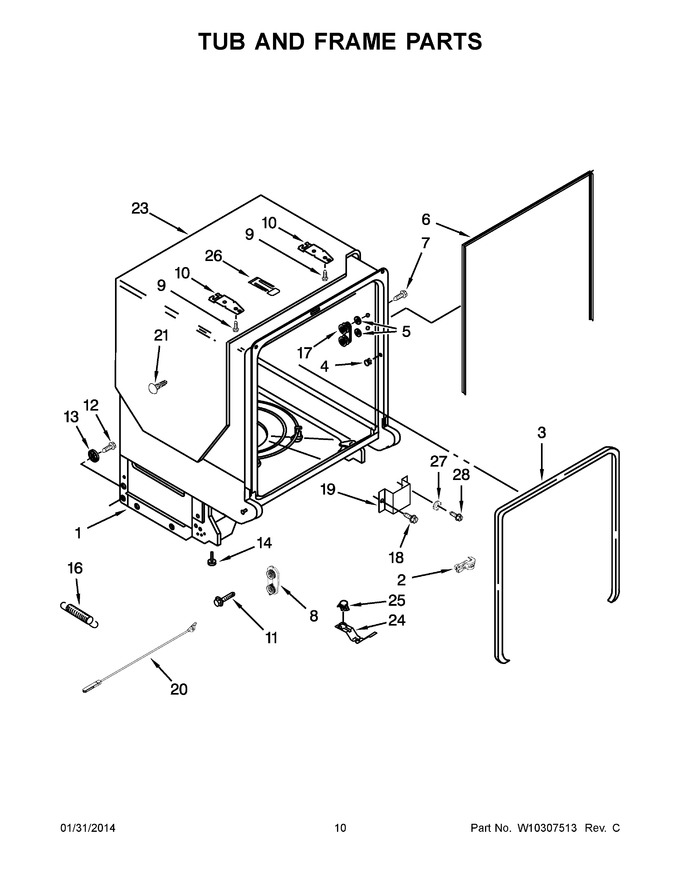

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10213822 | Tub Assembly (also Includes Heater Assembly) |
|
- | |||||
| 2 | W11384788 | Relief, Strain (Replaces: 8573061) |
|
$ 21.51 | |||||
| 3 | W11196317 | Gasket, Tub (Replaces: W10112096) |
|
Immediately | $ 94.26 | ||||
| 4 | W10795980 | Plug, Tub (Replaces: W10082838) |
|
Immediately | $ 14.34 | ||||
| 5 | WP9743002 | Gasket, Mounting Bracket (Replaces: 9743002) |
|
Immediately | $ 9.56 | ||||
| 6 | W10864081 | Seal Kit (Replaces: 8269110) |
|
Immediately | $ 84.31 | ||||
| 7 | WPW10348407 | Screw (Replaces: 3400072) |
|
$ 7.69 | |||||
| 8 | WPW10084086 | Door Balance Assembly (Replaces: W10084086) |
|
Immediately | $ 31.45 | ||||
| 9 | WP308685 | Screw (Replaces: 3367670) |
|
Immediately | $ 7.87 | ||||
| 10 | WP8269145 | Bracket, Undercounter (Replaces: 8269145) |
|
Immediately | $ 19.33 | ||||
| 11 | WP3400074 | Screw (Replaces: 3400074) |
|
$ 7.19 | |||||
| 12 | 3370389 | Screw |
|
$ 5.70 | |||||
| 13 | WP8268977 | Wheel, Leg (Replaces: 8268977) |
|
$ 14.47 | |||||
| 14 | 8193716 | Leg, Leveling (Replaces: 8524584) |
|
Immediately | $ 84.72 | ||||
| 16 | WP8270020 | Spring, Door Balance (Replaces: 8270020) |
|
Immediately | $ 34.94 | ||||
| 17 | WP8270019 | Wheel And Mount Assembly (Replaces: 8270019) |
|
Immediately | $ 9.04 | ||||
| 18 | WP3400892 | Screw (Replaces: 3400892) |
|
$ 7.75 | |||||
| 19 | W11779375 | Cover, Terminal Box (Replaces: 8268991) |
|
$ 26.79 | |||||
| 20 | 8194001 | Cable, Door (Replaces: W10158291) |
|
Immediately | $ 41.06 | ||||
| 21 | WP304666 | Retainer (Replaces: 304666) |
|
$ 28.05 | |||||
| 23 | W11086533 | Shield, Tub Sound (Replaces: 8573240) |
|
Immediately | $ 31.30 | ||||
| 24 | 9742648 | Bracket, Thermostat |
|
$ 51.51 | |||||
| 25 | WP661566 | Thermostat (Replaces: 661566) |
|
Immediately | $ 31.28 | ||||
| 26 | W10077370 | Strike, Plate |
|
- | |||||
| 27 | WP3378128 | Washer, Pronged Cup (Replaces: 3378128) |
|
$ 9.03 | |||||
| 28 | WP3400014 | Screw, Grounding (Replaces: 3400014) |
|
$ 7.75 |
