SELECT A DIAGRAM
New Model Search:

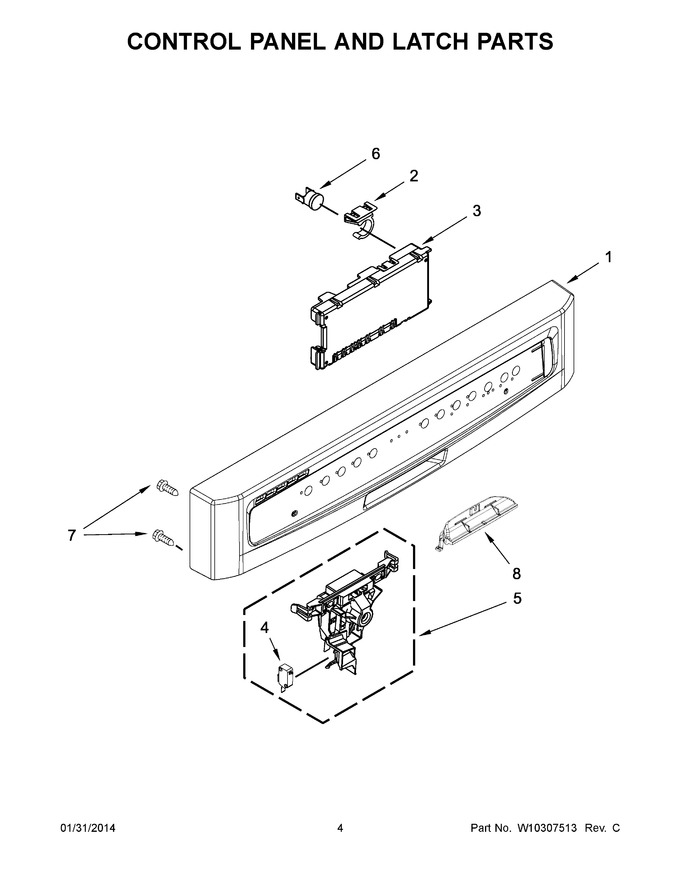

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10811155 | Console Assembly (includes Active Overlay & Insert) (black) (Replaces: W10240112) |
|
Immediately | $ 176.11 | ||||
| 1 | W10811156 | Console Assembly (includes Active Overlay & Insert) (white) (Replaces: W10240113) |
|
$ 382.62 | |||||
| 2 | 8546546 | Clip, Bi-metal |
|
$ 7.82 | |||||
| 3 | W11202746 | Control Electronic (Replaces: W10250166) |
|
$ 314.94 | |||||
| 4 | WP8269209 | Switch, Door (Replaces: 8269209) |
|
Immediately | $ 43.30 | ||||
| 5 | WPW10404412 | Latch Assembly (Replaces: W10077360) |
|
Immediately | $ 85.50 | ||||
| 6 | W10258275 | Bi-metal (Replaces: 661663) |
|
Immediately | $ 41.71 | ||||
| 7 | WPW10348409 | Screw (Replaces: 3369051) |
|
Immediately | $ 8.20 | ||||
| 8 | W10205889 | Handle, Latch (black) |
|
$ 49.75 | |||||
| 8 | WPW10205890 | Handle, Latch (white) (Replaces: W10205890) |
|
$ 126.51 |
