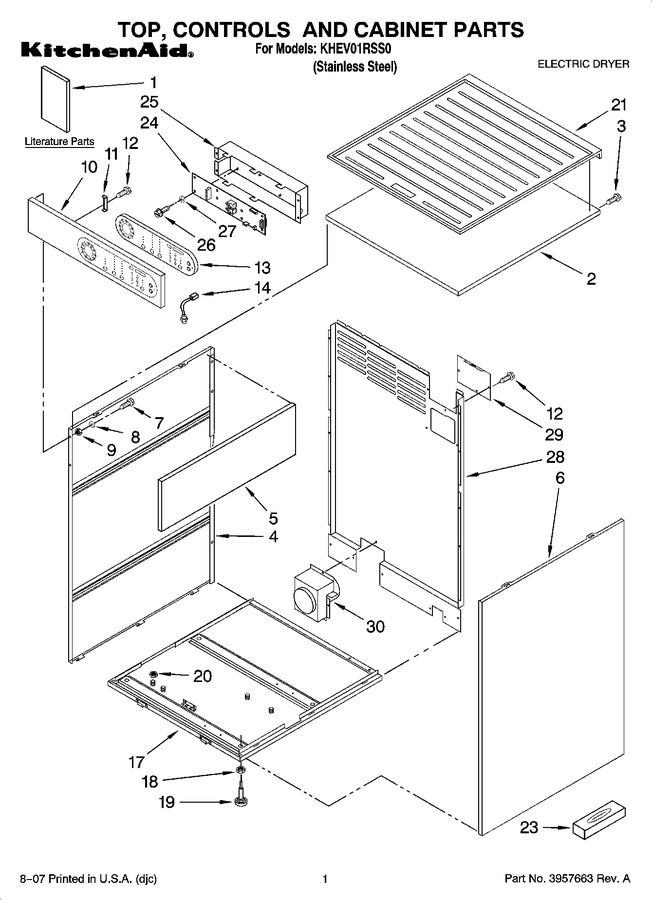

01 - Top, Controls And Cabinet Parts


02 - Drum, Rear Bulkhead And Motor Parts


03 - Front/toe Panel And Heater Parts


04 - Door And Blower Assembly Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3957654		Guide, Use & Care		Appelez-nous	-
1	3957658		Instructions, Installation (dryer)		Appelez-nous	-
1	3957662		Tech Sheet		Appelez-nous	-
1	W10109961		Instructions, Installation (decorative Mat)		Appelez-nous	-
2	8182866		Top Assembly		Appelez-nous	-
3	8182954		Screw		Appelez-nous	-
4	8182833		Side Panel, (lh) (includes Illus. 5)		Appelez-nous	-
5	8182832		Insulation		Appelez-nous	-
6	8182831		Side Panel, (rh) (includes Illus. 5)		Appelez-nous	-
7	8182929		Screw, Phillips		Appelez-nous	-
8	8182941		Washer, Star		Appelez-nous	-
9	8182955		Locknut, Nylon		Appelez-nous	-
10	8182896		Panel, Control (includes Bevel)		Appelez-nous	-
11	8182897		Support, Stiffener (control Panel)		Appelez-nous	-
12	8182931		Screw		Appelez-nous	-
13	8182895		User Interface		Appelez-nous	-
14	8182839		Switch, Door Sensor		Appelez-nous	-
17	8182824		Base Assembly		Appelez-nous	-
18	WP3359452		Nut, Foot Leveling   (Replaces: 8182827)			Immediately	$ 6.80
19	WPW10001130		Foot, Leveling   (Replaces: 8182826)			Immediately	$ 7.02
20	8182935		Nut, Hex		Appelez-nous	-
21	8182905		Mat, Decorative		Appelez-nous	-
23	8212510		Wipe, Stainless Steel		Appelez-nous	-
24	8182840		Control Board		Appelez-nous	-
25	8182841		Front, Electrical Box		Appelez-nous	-
26	8182928		Screw, Phillips		Appelez-nous	-
27	8182942		Washer, Star		Appelez-nous	-
28	8182828		Panel, Rear		Appelez-nous	-
29	8182829		Cover, Terminal		Appelez-nous	-
30	8182879		Harness, Main Control		Appelez-nous	-
30	8182825		Outlet, Blower Housing		Appelez-nous	-
30	8182890		Harness, U/i Control Board		Appelez-nous	-
30	8182880		Harness, Main Power		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
