01 - Top, Controls And Cabinet Parts

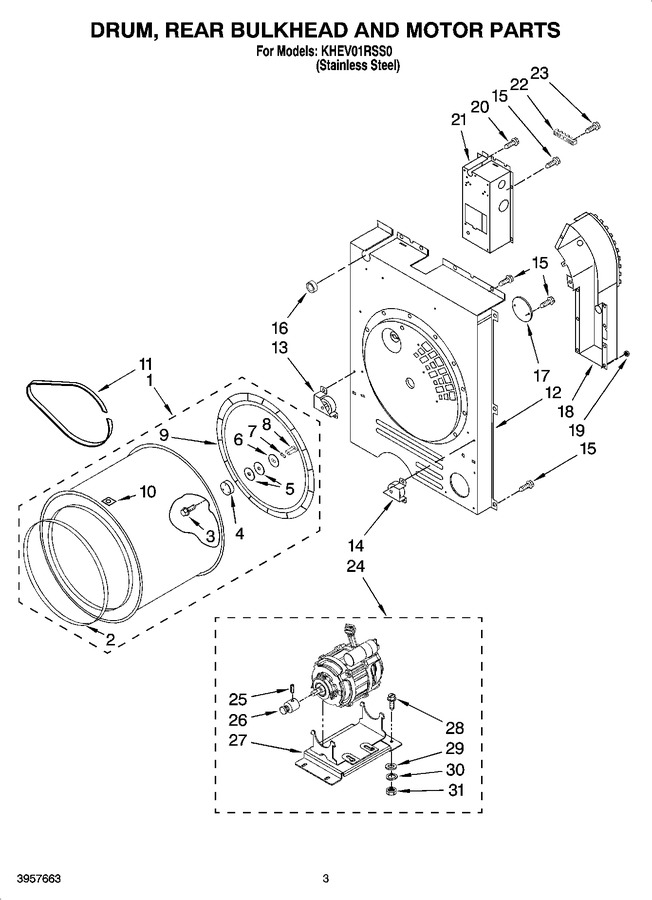

02 - Drum, Rear Bulkhead And Motor Parts


03 - Front/toe Panel And Heater Parts


04 - Door And Blower Assembly Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8182805		Drum Assembly		Appelez-nous	-
2	8182806		Seal, Drum Front (includes Illus. 9)		Appelez-nous	-
3	8182808		Screw, W/patch		Appelez-nous	-
4	8182822		Shaft, Hub		Appelez-nous	-
5	8182813		Pad, Friction Inner (2)		Appelez-nous	-
6	8182823		Washer, Back-up		Appelez-nous	-
7	8182947		Washer, Lock		Appelez-nous	-
8	8182809		Screw, Black (socket Head)		Appelez-nous	-
9	8182807		Seal, Drum Rear (includes Illus. 2)		Appelez-nous	-
11	8182802		Belt, Drum		Appelez-nous	-
12	8182898		Panel, Rear Bulkhead/support		Appelez-nous	-
13	8182886		Roller Assembly (left Rear)		Appelez-nous	-
14	8182885		Roller Assembly (right Rear)		Appelez-nous	-
15	8182931		Screw		Appelez-nous	-
16	8182894		Grommet, Large		Appelez-nous	-
17	8182887		Cover, Rear Access		Appelez-nous	-
18	8182889		Duct, Heater		Appelez-nous	-
19	8182948		Nut, Keps		Appelez-nous	-
20	8182803		Screw, Ground		Appelez-nous	-
21	8182888		Box, Electrical		Appelez-nous	-
22	WP3397659		Terminal Block   (Replaces: 3397659)				$ 21.75
23	8182954		Screw		Appelez-nous	-
24	8182899		Motor Assembly		Appelez-nous	-
25	8182952		Screw, Set		Appelez-nous	-
26	8182910		Pulley		Appelez-nous	-
27	8182909		Base, Motor		Appelez-nous	-
28	8182951		Bolt		Appelez-nous	-
29	8182938		Washer, Flat		Appelez-nous	-
30	8182939		Washer, Lock		Appelez-nous	-
31	8182933		Nut, Hex		Appelez-nous	-
