SELECT A DIAGRAM

01 - Top, Controls And Cabinet Parts


02 - Drum, Rear Bulkhead And Motor Parts


03 - Front/toe Panel And Heater Parts

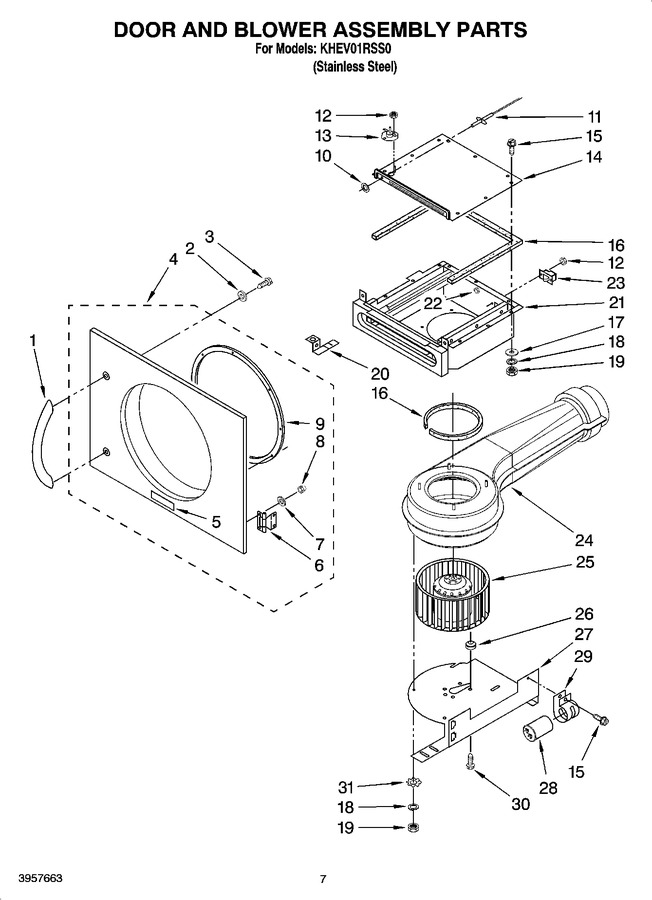

04 - Door And Blower Assembly Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2252312		Handle, Door		Appelez-nous	-
2	8182936		Washer, Nylon		Appelez-nous	-
3	8182930		Screw, W/nylon Patch		Appelez-nous	-
4	8182892		Door Assembly Complete		Appelez-nous	-
6	8182856		Hinge, Door		Appelez-nous	-
7	8182937		Washer		Appelez-nous	-
8	8182965		Nut, Acorn		Appelez-nous	-
9	8182893		Seal, Door		Appelez-nous	-
10	8182949		Fastener, Push-on		Appelez-nous	-
11	8182871		Harness, Temperature Sensor		Appelez-nous	-
12	8182984		Nut, Keps		Appelez-nous	-
13	8182868		Thermostat, Temperature Sensor				$ 35.97
14	8182877		Top, Lint Box		Appelez-nous	-
15	8182931		Screw		Appelez-nous	-
16	8182835		Tape, Sponge		Appelez-nous	-
17	8182946		Washer		Appelez-nous	-
18	8182945		Washer, Split/lock		Appelez-nous	-
19	8182934		Nut, Hex		Appelez-nous	-
20	8182896		Plate, Circuit Connector		Appelez-nous	-
21	8182876		Lint Box Body (includes Illus. 22)		Appelez-nous	-
23	8182878		Switch & Bracket, Lint Drawer		Appelez-nous	-
24	8182874		Housing, Blower		Appelez-nous	-
25	8182875		Motor, Blower Assembly		Appelez-nous	-
26	8182872		Grommet		Appelez-nous	-
27	8182873		Plate, Blower Mount		Appelez-nous	-
28	8182867		Capacitor		Appelez-nous	-
29	8182870		Bracket, Capacitor		Appelez-nous	-
30	8182927		Bolt, Shoulder		Appelez-nous	-
31	8182941		Washer, Star		Appelez-nous	-
	8182983		Dry Rack		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
