SELECT A DIAGRAM

01 - Top, Controls And Cabinet Parts


02 - Drum, Rear Bulkhead And Motor Parts

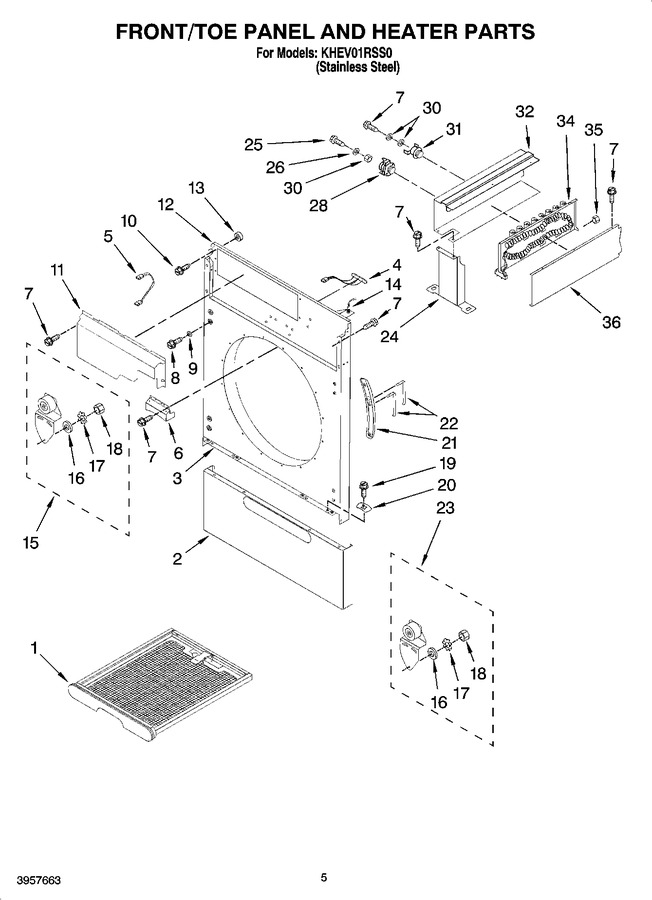

03 - Front/toe Panel And Heater Parts


04 - Door And Blower Assembly Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8182891		Lint Drawer Assembly		Appelez-nous	-
2	8182834		Toe Panel		Appelez-nous	-
3	8182844		Panel, Front		Appelez-nous	-
4	8182836		Light, Led		Appelez-nous	-
5	8182901		Harness, Light		Appelez-nous	-
6	8182861		Enclosure, Light (top)		Appelez-nous	-
7	8182931		Screw		Appelez-nous	-
8	8182966		Screw, Torx		Appelez-nous	-
9	8182908		Magnet, Door Closure		Appelez-nous	-
10	8182803		Screw, Ground		Appelez-nous	-
11	8182838		Cover, Electronic Box		Appelez-nous	-
12	8182835		Tape, Sponge		Appelez-nous	-
13	8182894		Grommet, Large		Appelez-nous	-
14	8182839		Switch, Drum Rotation		Appelez-nous	-
15	8182843		Roller Assembly (left/front)		Appelez-nous	-
16	8182944		Washer, Flat		Appelez-nous	-
17	8182940		Washer, Split/lock		Appelez-nous	-
18	8182932		Nut, Hex		Appelez-nous	-
19	8182954		Screw		Appelez-nous	-
20	8182950		Nut, Retainer (tinnerman)		Appelez-nous	-
21	8182846		Pad, Sensor Strips		Appelez-nous	-
22	8182845		Electrode, Sensor		Appelez-nous	-
23	8182842		Roller Assembly (right/front)		Appelez-nous	-
24	8182882		Bracket, Heater Box		Appelez-nous	-
25	8182928		Screw		Appelez-nous	-
26	8182942		Washer, Star		Appelez-nous	-
28	8182881		Thermostat, Hi-limit		Appelez-nous	-
30	8182953		Washer, Flat		Appelez-nous	-
31	8182900		Thermal Cut-off (tco)				$ 97.08
32	8182883		Heater Box (top & Left Side)		Appelez-nous	-
34	WP3387747		Element   (Replaces: 3387747)			Immediately	$ 84.77
35	8182948		Nut, Keps		Appelez-nous	-
36	8182884		Heater Box (right Side)		Appelez-nous	-
