Diagram for 01 - Top And Cabinet Parts

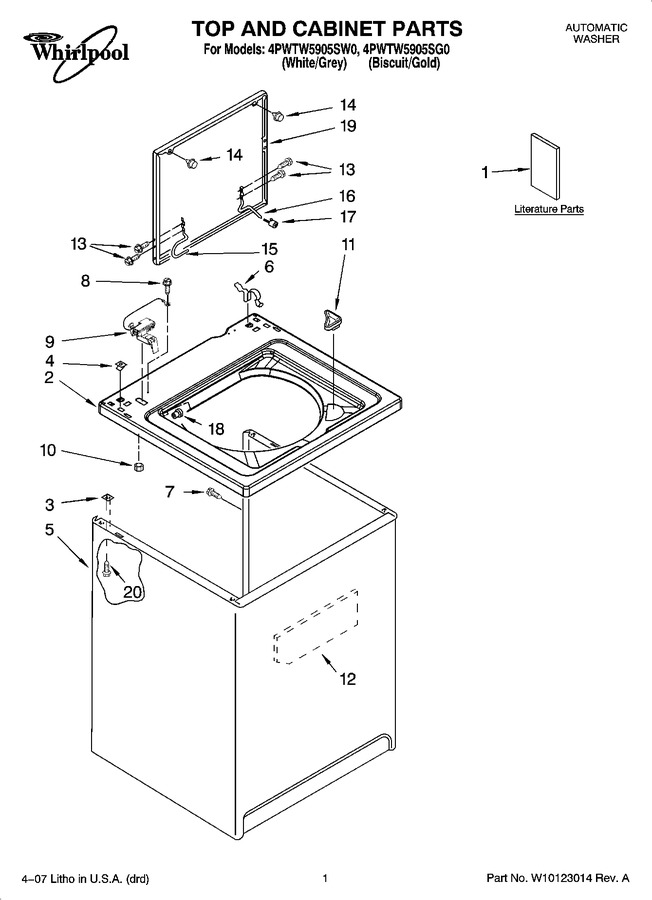

01 - Top And Cabinet Parts

Diagram for 02 - Controls And Rear Panel Parts
02 - Controls And Rear Panel Parts

Diagram for 03 - Agitator, Basket And Tub Parts
03 - Agitator, Basket And Tub Parts

Diagram for 04 - Brake, Clutch, Gearcase, Motor And Pump Parts
04 - Brake, Clutch, Gearcase, Motor And Pump Parts

Diagram for 05 - Machine Base Parts
05 - Machine Base Parts

Diagram for 06 - Wiring Harness Parts
06 - Wiring Harness Parts

Diagram for 07 - Brake And Drive Tube Parts
07 - Brake And Drive Tube Parts

Diagram for 08 - Gearcase Parts, Optional Parts (not Included)
08 - Gearcase Parts, Optional Parts (not Included)


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10096749 Installation Instructions (english/korean) Appelez-nous -
1 W10110469 Wiring Diagram Appelez-nous -
1 W10096804 Feature Sheet (arabic) Appelez-nous -
1 W10096776 Installation Instructions (arabic) Appelez-nous -
1 W10096777 Use & Care Guide (arabic) Appelez-nous -
1 W10096744 Use & Care Guide (english/korean) Appelez-nous -
2 8318066 Top (biscuit) Appelez-nous -
2 8318064 Top (white) Special Order $ 135.68

3 WP62750 Spacer, Cabinet To Top (4)   (Replaces: 62750) In-Stock Immediately $ 7.69

4 WP357213 Nut,push-in   (Replaces: 357213) Special Order $ 7.39

5 3954357 Cabinet (biscuit) Special Order $ 268.04

5 63424 Cabinet (white) Special Order $ 370.02

6 WP62780 Clip, Top & Cabinet & Rear Panel (2)   (Replaces: 62780) In-Stock Immediately $ 7.80

7 WP308685 Screw,10-16 X 1/2   (Replaces: 3357011) In-Stock Immediately $ 7.87

8 WP3351614 Screw, Ground   (Replaces: 3351614) In-Stock Immediately $ 6.95

9 WP8318084 Switch, Lid   (Replaces: 8318084) In-Stock Immediately $ 39.82

10 W10080180 Nut, Hex   (Replaces: 8533959) Special Order $ 13.48

11 WP3362952 Dispenser, Bleach   (Replaces: 3362952) In-Stock Immediately $ 12.09

12 3976348 Sound Dampener, Cabinet Special Order $ 37.92

13 WPW10119828 Screw, Lid Hinge Mounting (4)   (Replaces: W10119872) In-Stock Immediately $ 7.19

14 WP9724509 Bumper, Lid (2)   (Replaces: 9724509) In-Stock Immediately $ 7.93

15 8318088 Hinge, Lid (l.h.) Appelez-nous -
16 WP54583 Hinge, Lid (r.h.)   (Replaces: 54583) Special Order $ 29.56

17 19119 Bumper, Lid Hinge Special Order $ 5.75

18 WP21258 Bearing, Lid Hinge (2)   (Replaces: 21258) In-Stock Immediately $ 7.63

19 8541743 Lid (white) Appelez-nous -
19 WP3957511 Lid (biscuit)   (Replaces: 8541742) Special Order $ 210.53

20 WP3390631 Screw, 10-16 X 3/8 (4)   (Replaces: 3390631) Special Order $ 7.82


    View Diagram in Separate Window     Print Icon   Print Part List
