Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10846509 Screw, Bracket Mounting (10-32 X 5/8)   (Replaces: 3400076) In-Stock Immediately $ 7.76

2 WP64067 Bracket, Spring Outer (2)   (Replaces: 64067) In-Stock Immediately $ 8.75

3 WP63907 Spring Suspension,(3)   (Replaces: 63907) In-Stock Immediately $ 8.86

4 8575214 Support & Brake, Tub Appelez-nous -
5 100092723 Bracket, Spring Outer (l.f.)   (Replaces: 64065) Special Order $ 463.13

6 63466 Link, Leveling Mechanism (2) Special Order $ 37.51

7 8316845 Spring, Leveling Mechanism   (Replaces: 62597) In-Stock Immediately $ 7.50

8 WP62837 Pin, Knurled   (Replaces: 62837) Special Order $ 10.73

9 285244 Foot, Rear (2)   (Replaces: 62596) In-Stock Immediately $ 18.26

10 WP8546455 Bearing, Centerpost (2)   (Replaces: 8546455) In-Stock Immediately $ 27.96

11 W11095997 Seal, Centerpost (3)   (Replaces: 357409) In-Stock Immediately $ 22.30

12 WPW10250667 Spring, Counterweight   (Replaces: 388492) In-Stock Immediately $ 9.59

13 285219 Pad, Plate   (Replaces: 62568) In-Stock Immediately $ 22.43

14 WP3946509 Plate, Suspension (includes Item 13)   (Replaces: 3946509) Special Order $ 201.32

15 285744 Pad, Base   (Replaces: 3363660) In-Stock Immediately $ 18.30

16 3946512 Base Assembly (includes Items 6, 7, 8, 9, 13, 14, 15 & 22) Appelez-nous -
17 WP3359452 Nut, Lock (2) (3/8-16)   (Replaces: 3359452) In-Stock Immediately $ 7.19

18 WPW10001130 Foot, Front (2)   (Replaces: W10001130) In-Stock Immediately $ 7.80

19 WP8577376 Seal, Centerpost   (Replaces: 8577376) In-Stock Immediately $ 7.19

20 285203 Centerpost Bearing Kit (includes Items10, 11 & 19) In-Stock Immediately $ 104.95

21 WP63134 Ring, Sound Deadening   (Replaces: 63134) Special Order $ 8.17

22 WPW10145155 Retainer, Suspension Spring   (Replaces: 63806) In-Stock Immediately $ 5.01

23 3361812 Sound Absorber Appelez-nous -

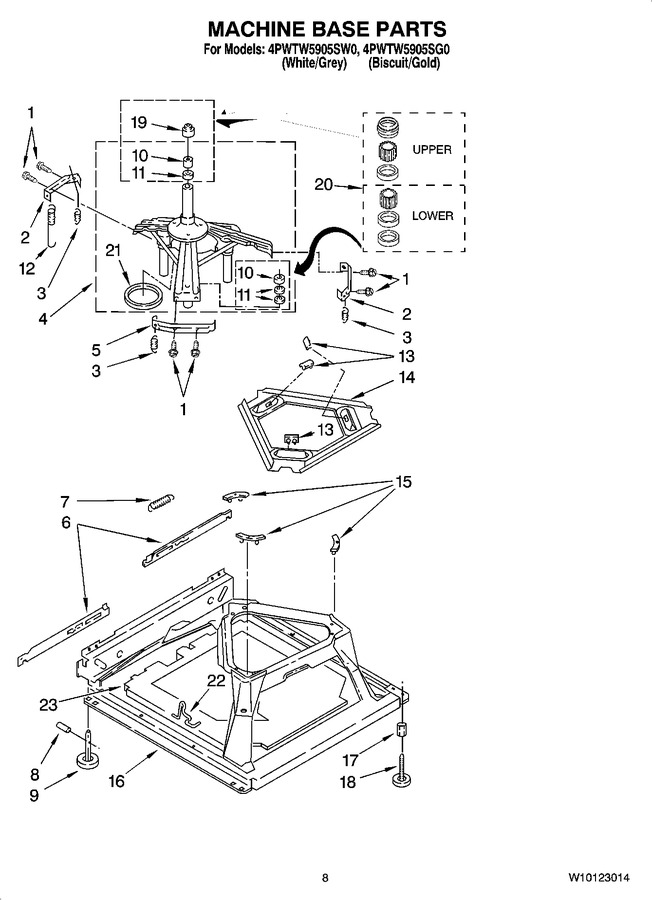

    View Diagram in Separate Window     Print Icon   Print Part List
