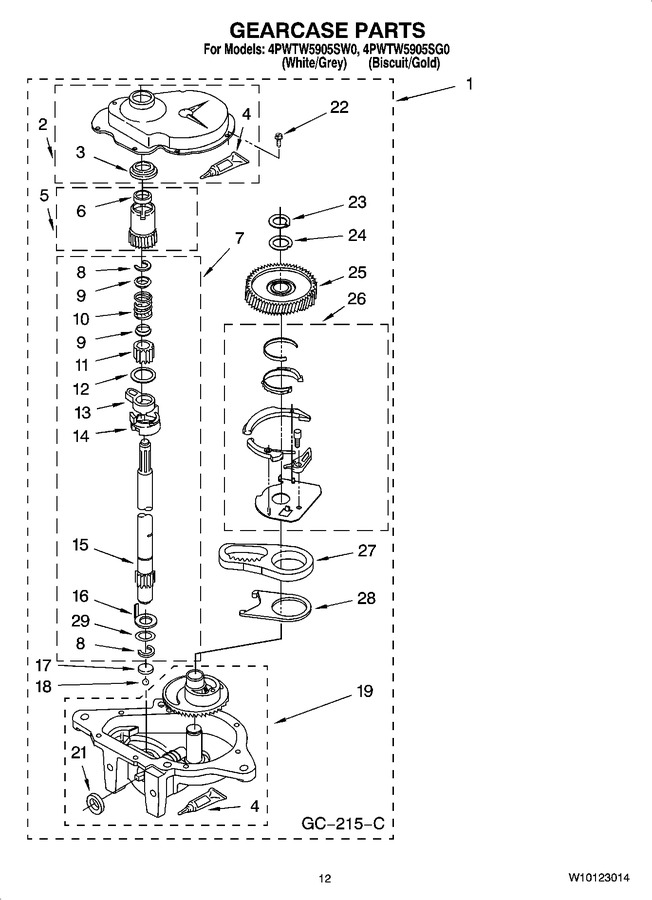

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3360629		Gearcase (complete)   (Replaces: 3360630)			Immediately	$ 469.13
2	285202		Cover, Gearcase		Appelez-nous	-
3	WP3349985		Seal, Gearcase Cover   (Replaces: 3349985)			Immediately	$ 26.21
4	WP285195		Sealer, Gasket (20 Fl. Oz.) (6 Ml)   (Replaces: 285195)			Immediately	$ 104.39
5	3360629		Pinion, Spin (includes Item 25)   (Replaces: 63320)			Immediately	$ 469.13
6	WP356427		Seal, Spin Pinion   (Replaces: 356427)			Immediately	$ 7.19
7	WP389387		Shaft, Agitator (complete)   (Replaces: 389387)				$ 269.70
8	90369		Ring, Retaining (2)				$ 5.04
9	62677		Retainer, Spring				$ 6.25
10	62676		Spring, Agitate				$ 56.99
11	WP389387		Gear, Agitate (includes 15 And 29)   (Replaces: 63273)				$ 269.70
12	62619		Washer, Agitate Gear				$ 13.46
13	WP389387		Cam Follower (includes 14)   (Replaces: 62580)				$ 269.70
14	WP389387		Cam, Agitate (includes 13)   (Replaces: 62581)				$ 269.70
15	WP389387		Shaft, Agitator (includes 11 And 29)   (Replaces: 285509)				$ 269.70
16	62618		Washer, Cam Thrust		Appelez-nous	-
17	285205		Bearing, Thrust   (Replaces: 16018)				$ 7.52
18	285205		Ball, Bearing   (Replaces: 85529)				$ 7.52
19	389230		Bottom And Pinion, Gearcase		Appelez-nous	-
21	285352		Seal, Thrust Plug			Immediately	$ 42.25
22	WP3351614		Screw, Gearcase Cover, Mounting (8) (10-24 X 3/8)   (Replaces: 3351614)			Immediately	$ 6.95
23	3362552		Ring, Retaining		Appelez-nous	-
24	285735		Washer Kit, Thrust		Appelez-nous	-
25	3360629		Gear, Spin   (Replaces: 62570)			Immediately	$ 469.13
26	388253A		Neutral Assembly   (Replaces: 388253)			Immediately	$ 58.73
27	3360629		Rack, Connecting   (Replaces: 3349296)			Immediately	$ 469.13
28	3360629		Actuator, Shift   (Replaces: 62621)			Immediately	$ 469.13
29	WP388815		Washer, Intermediate   (Replaces: 388815)				$ 7.80
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
	4392901		Paint, Pressurized Spray (12oz.) (biscuit)		Appelez-nous	-
	WP285195		Sealer, Gasket (20 Fl. Oz.) (6 Ml)   (Replaces: 285195)			Immediately	$ 104.39
	4392899		Paint, Touch-up (1/2oz.) (biscuit)			Immediately	$ 26.45
	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
	4392900		Paint, Bulk (1 Qt.) (biscuit) (uncut)		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	40922		Drain Hose Extension Kit   (Replaces: 280131)				$ 64.54
	280130		Drain Hose Adapter Kit		Appelez-nous	-
	280129A		Siphon Break Kit   (Replaces: 280129)				$ 111.71
	367031		Drain Protector		Appelez-nous	-
	285208		Lubricant (use Only In Brake Shoe Assembly On Roller An D Pin)				$ 41.86
	350572		Oil, Gearcase (16 Oz.)			Immediately	$ 91.61
