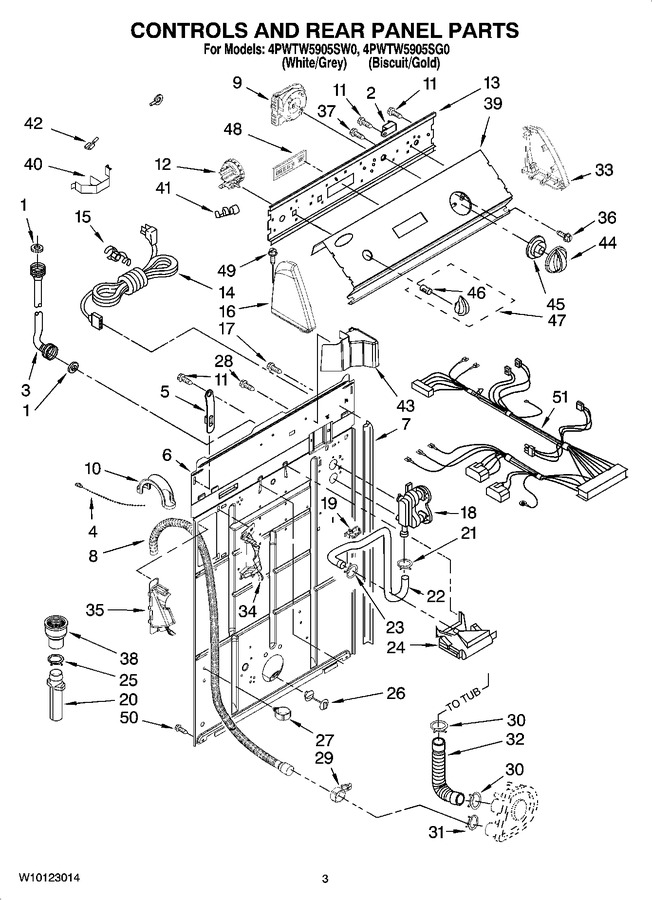

02 - Controls And Rear Panel Parts


03 - Agitator, Basket And Tub Parts


04 - Brake, Clutch, Gearcase, Motor And Pump Parts


05 - Machine Base Parts


06 - Wiring Harness Parts


07 - Brake And Drive Tube Parts


08 - Gearcase Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP16123		Washer, Water Inlet Hose (4) 1-1/16 X 5/8   (Replaces: 3976300)				$ 7.70
2	3952439		Mini-buzzer		Appelez-nous	-
3	WP89503		Hose, Water Inlet (2) (blue Coupler)   (Replaces: 8571377)			Immediately	$ 24.09
3	WP89503		Hose, Water Inlet (2) (red Coupler)   (Replaces: 8571378)			Immediately	$ 24.09
4	WPW10339879		Cable Tie   (Replaces: 3347868)				$ 7.90
5	WP8568314		Strap, Console (2)   (Replaces: 8568314)				$ 7.78
6	8318015		Panel, Rear				$ 148.59
7	WP62747		Pad, Rear Panel   (Replaces: 62747)				$ 26.26
8	WPW10096921		Drain Hose Assembly (includes Items 27 & 29)   (Replaces: 8559373)			Immediately	$ 67.38
9	WPW10110460		Timer, Control (60 Hz.) (motor Not A Service Part)   (Replaces: W10110460)				$ 340.53
10	WP8577378		U-bend, Drain Hose   (Replaces: 8577378)				$ 7.97
11	WP90767		Screw, 8-18 X 3/8   (Replaces: 90767)			Immediately	$ 7.82
12	W10339250		Switch, Water Level   (Replaces: 8577842)				$ 211.80
13	3950194		Bracket, Control		Appelez-nous	-
14	W10111548		Cord, Power		Appelez-nous	-
15	8559337		Strain Relief, Power Cord		Appelez-nous	-
16	8271368		Cap, End (l.h.) (biscuit)		Appelez-nous	-
16	8271365		Cap, End (l.h.) (white)		Appelez-nous	-
17	WP3351614		Screw, Ground   (Replaces: 3351614)			Immediately	$ 6.95
18	285874		Valve, Water Mixing   (Replaces: 3952165)				$ 203.68
19	3352944		Clip, Harness		Appelez-nous	-
20	3363920A		Adapter-drain Hose   (Replaces: 3363920)				$ 8.79
21	WP596669		Clamp, Hose   (Replaces: 301958)			Immediately	$ 8.40
22	WP3357328		Hose, Vacuum Break   (Replaces: 8541607)			Immediately	$ 24.78
23	WP596669		Clamp, Hose   (Replaces: 370450)			Immediately	$ 8.40
24	WP3360977		Break, Vacuum   (Replaces: 387606)			Immediately	$ 50.46
25	WP285655		Clamp, Hose (2)   (Replaces: 285655)			Immediately	$ 8.39
26	WP8519200		Support, Rear Panel   (Replaces: 8519200)			Immediately	$ 18.90
27	8541667		Clamp, Hose				$ 5.86
28	WP9740848		Screw, 8-18 X 1/2   (Replaces: 9740848)			Immediately	$ 7.86
29	8541668		Clamp, Hose				$ 21.26
30	WP616099		Clamp, Hose   (Replaces: 3363366)			Immediately	$ 7.81
31	WP285655		Clamp, Hose   (Replaces: 8317496)			Immediately	$ 8.39
32	285871		Hose, Pump To Tub (includes Item 30)   (Replaces: 3951449)			Immediately	$ 26.68
33	8271359		Cap, End (r.h.) (white)		Appelez-nous	-
33	8271362		Cap, End (r.h.) (biscuit)		Appelez-nous	-
34	WPW10096921		Bucket, Drain Hose (left Half)   (Replaces: 8541669)			Immediately	$ 67.38
35	WPW10096921		Bucket, Drain Hose (right Half)   (Replaces: 8541658)			Immediately	$ 67.38
36	WP3400818		Screw, Timer Mounting   (Replaces: 3400818)				$ 7.96
37	3400073		Screw, Ground		Appelez-nous	-
38	WP8577375		Coupler, Drain Hose   (Replaces: 8577375)				$ 8.07
39	W10095590		Panel, Console (gold)		Appelez-nous	-
39	W10096550		Panel, Console (silver)		Appelez-nous	-
40	8055003		Clip, Harness & Pressure Hose				$ 36.24
41	W10113937		Clip, Grounding   (Replaces: 357572)				$ 10.83
42	3398893		Wire, Ground		Appelez-nous	-
43	8539874		Shield, Suds				$ 7.01
44	W10034730		Knob, Timer (silver)				$ 25.16
44	W10034740		Knob, Timer (biscuit)				$ 87.62
45	WP8566018		Dial, Timer   (Replaces: 8566018)				$ 51.04
46	WP8536939		Clip, Knob   (Replaces: 8536939)			Immediately	$ 7.81
47	W10034390		Knob, Control (biscuit)				$ 34.42
47	W10034380		Knob, Control (silver)				$ 25.06
48	W10096869		Switch, Clean Touch (7 Pad) (silver)   (Replaces: W10096816)		Appelez-nous	-
48	W10096817		Switch, Clean Touch (7 Pad) (gold)		Appelez-nous	-
49	WP388326		Screw, 8-18 X 1.25 (panel To Top)   (Replaces: 388326)				$ 8.11
50	WP3390631		Screw, 10-16 X 3/8   (Replaces: 62863)				$ 7.82
51	W10111599		Harness, Wiring (for Detail See Pages 9 & 10)		Appelez-nous	-
