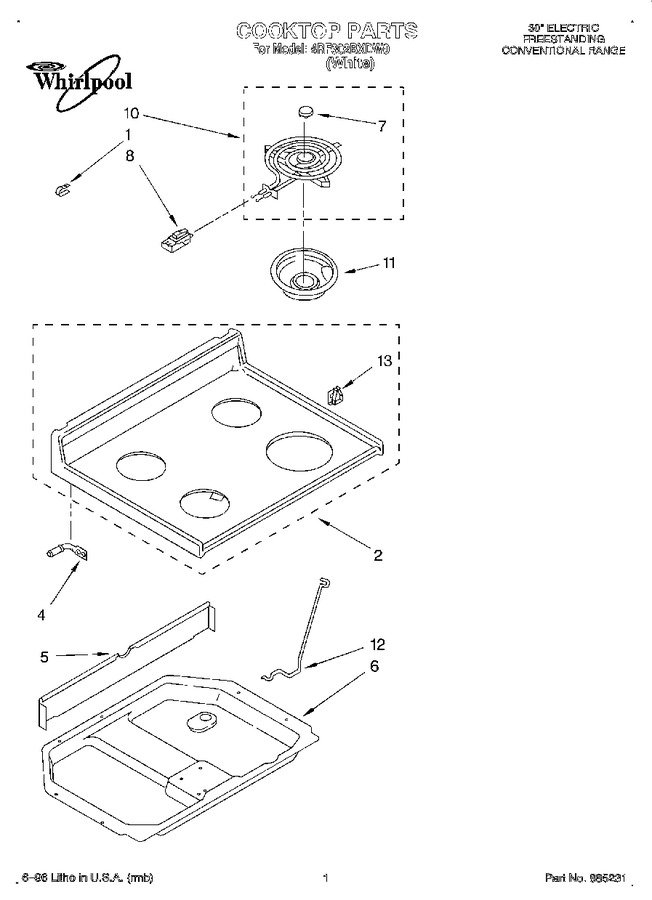

01 - Cooktop, Lit/optional


02 - Control Panel


03 - Door And Drawer


04 - Oven


05 - Unit


06 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.85
1	WP308605		Strain, Relief   (Replaces: 308605)				$ 11.20
2	3170989		Cooktop (white)		Appelez-nous	-
2	WP681414		Cooktop (screw 10-32 X 1/2)   (Replaces: 690989)			Immediately	$ 7.85
4	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.85
4	3169384		Pin, Hinge (2)		Appelez-nous	-
5	307973		Shield, Wiring		Appelez-nous	-
5	WP681414		Screw, 10-16 X 1/2 (2)   (Replaces: 343641)			Immediately	$ 7.85
6	WP3390631		Screw, 10a X 3/8 (4)   (Replaces: 309112)				$ 7.82
6	3169186		Box, Burner		Appelez-nous	-
7	309926		Medallion (4)		Appelez-nous	-
8	330031		Receptacle, Clip (4)   (Replaces: 312606)			Immediately	$ 16.09
8	WP313808		Screw, 6-32 X 9/32 (4)   (Replaces: 313808)				$ 7.60
10	WP660532		Element, Coil (includes No.7) (alt.)   (Replaces: 309191)			Immediately	$ 41.00
10	WP660533		Element, Coil (includes No.7) (alt.)   (Replaces: 309185)			Immediately	$ 43.86
10	WP660533		Element, Coil (includes No.7) (alt.)   (Replaces: 313966)			Immediately	$ 43.86
10	WP660532		Element, Coil (includes No.7) (6`` (3))   (Replaces: 660528)			Immediately	$ 41.00
10	WP660532		Element, Coil (includes No.7) (alt.)   (Replaces: 313968)			Immediately	$ 41.00
10	WP660533		Element, Coil (includes No.7) (8`` (1))   (Replaces: 660530)			Immediately	$ 43.86
11	WPW10196405		Pan, Reflector (8`` (1))   (Replaces: 3150247)			Immediately	$ 17.29
11	WPW10196406		Pan, Reflector (6`` (3))   (Replaces: 3150246)			Immediately	$ 13.39
12	3148659		Rod, Cooktop		Appelez-nous	-
13	814102		Nut (4)				$ 5.27
13	00487887		Screw (4)   (Replaces: 487887)				$ 244.80
13	814103		Hold Down Clip (4)   (Replaces: 3148790)				$ 10.02
	LIT3189985		Instructions, Installation		Appelez-nous	-
	LIT3169512		Wiring Diagram		Appelez-nous	-
	LIT3189066		Guide, Use & Care		Appelez-nous	-
	LIT3150400		Installation Instr (templet)		Appelez-nous	-
