SELECT A DIAGRAM

01 - Cooktop, Lit/optional


02 - Control Panel


03 - Door And Drawer


04 - Oven


05 - Unit


06 - Wiring Harness

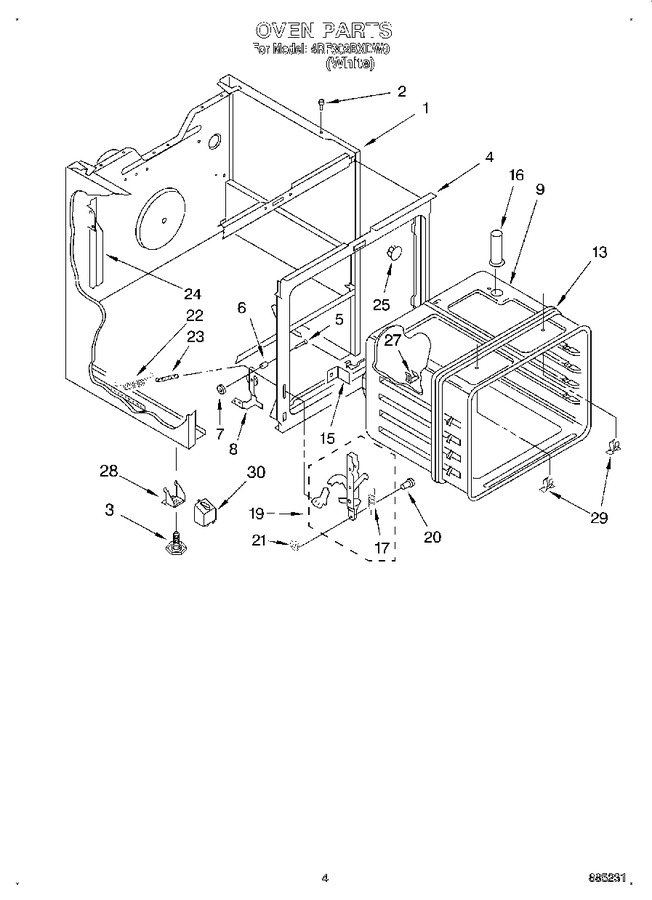

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	330086		Main Chassis (white)		Appelez-nous	-
1	WP681414		Main Chassis (screw 10-32 X 1/2)   (Replaces: 690989)			Immediately	$ 7.85
2	238614		Bumper (2)				$ 80.76
3	3169499		Leg Leveling (4)		Appelez-nous	-
4	3150537		Screw		Appelez-nous	-
4	3176714		Frame, Front		Appelez-nous	-
5	307985		Pin, Hinge (2)				$ 29.54
6	309111		Snubber, Door (2)		Appelez-nous	-
7	308306		Pushnut		Appelez-nous	-
8	3176711		Hinge, L.h.		Appelez-nous	-
8	3176710		Hinge, R.h.		Appelez-nous	-
8	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.85
9	3176612		Oven (30`` Conv.)		Appelez-nous	-
13	3169283		Seal		Appelez-nous	-
15	311220		Bracket, Oven (mounting)		Appelez-nous	-
15	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.85
16	307748		Screw, 10a X 1/2 (2)		Appelez-nous	-
16	9755804		Vent, Oven   (Replaces: 3169143)				$ 123.68
17	308207		Spring, Door Stop		Appelez-nous	-
19	3176708		Channel, Arm (2)		Appelez-nous	-
20	WP307986		Hinge Pin (2)   (Replaces: 307986)				$ 13.09
21	307594		Ring, Retainer (2)		Appelez-nous	-
22	308127		Spring, Oven Door (2)				$ 11.75
23	WP308125		Anchor, Spring (2)   (Replaces: 308125)				$ 12.16
24	313197		Support, R.h. Channel		Appelez-nous	-
24	313196		Support, L.h. Channel		Appelez-nous	-
24	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.85
25	308535		Plug Button		Appelez-nous	-
27	98005642		Clip, Therm Bulb (2)   (Replaces: 313382)			Immediately	$ 82.93
28	WP681414		Screw, (2) 10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.85
28	3169418		Support, Foot (2)		Appelez-nous	-
29	3169107		Plug, Button (2)		Appelez-nous	-
30	3169448		Cover, Foot (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
