SELECT A DIAGRAM

01 - Cooktop, Lit/optional


02 - Control Panel


03 - Door And Drawer


04 - Oven


05 - Unit


06 - Wiring Harness

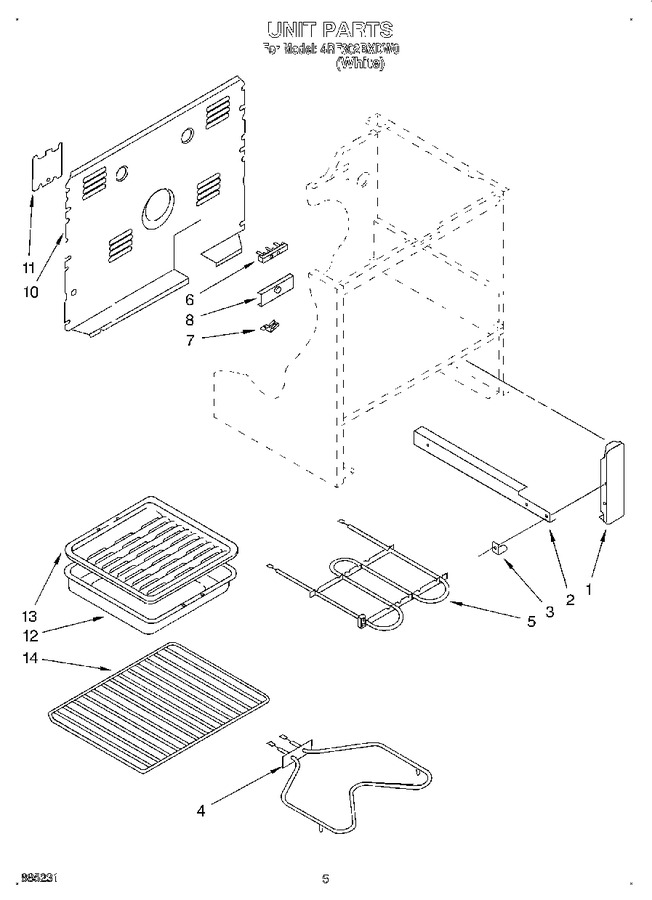

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3169420		Bracket, Mounting (2)		Appelez-nous	-
2	3149255		Rail R.h. (includes Illus. 3)		Appelez-nous	-
2	3149256		Rail L.h. (includes Illus. 3)		Appelez-nous	-
2	307748		Screw, 10a X 1/2 (2)		Appelez-nous	-
3	3149257		Glide, Front (2)		Appelez-nous	-
4	WP308180		Unit, Bake (240v) (alt.)   (Replaces: 308180)				$ 107.69
4	WP308180		(alt.)   (Replaces: 313827)				$ 107.69
4	3150532		Screw, 10-32 X 7/16 (2)		Appelez-nous	-
4	WP308180		Element, Bake 240 V   (Replaces: 661170)				$ 107.69
5	WP660579		(alt.)   (Replaces: 311713)				$ 156.44
5	3150532		Screw, 10-32 X 7/16 (2)		Appelez-nous	-
5	WP660579		Element, Broil 240 V   (Replaces: 660579)				$ 156.44
5	WP660579		(alt.)   (Replaces: 311714)				$ 156.44
6	WP8203546		Terminal Block   (Replaces: 258076)			Immediately	$ 30.13
6	WP112432		Nut (6)   (Replaces: 112432)				$ 7.96
6	98884		Screw, 10-16 X 1 (2)		Appelez-nous	-
7	313660		Clip		Appelez-nous	-
7	WP681414		Screw 10-32 X 1/2   (Replaces: 690989)			Immediately	$ 7.85
7	308498		Ground Strap		Appelez-nous	-
8	WP681414		Screw, 10-16 X 1/2 (2)   (Replaces: 343641)			Immediately	$ 7.85
8	3150190		Bracket, Service		Appelez-nous	-
10	WP681414		Screw, 10-16 X 1/2 (7)   (Replaces: 343641)			Immediately	$ 7.85
10	3148975		Cover, Rear (cabinet)		Appelez-nous	-
11	307972		Cover, Service		Appelez-nous	-
11	WP681414		Screw, 10-16 X 1/2 (2)   (Replaces: 343641)			Immediately	$ 7.85
12	4396923		Pan, Broiler   (Replaces: 3169076)			Immediately	$ 57.82
13	4396923		Rack, Broiler   (Replaces: 3147563)			Immediately	$ 57.82
14	8273888A		Anti-tip Kit (floor Mount)   (Replaces: 814091)				$ 31.07
14	308173		Rack, Oven (2)		Appelez-nous	-
14	309961		Insulation, Oven Wrap		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
