SELECT A DIAGRAM

01 - Cooktop, Lit/optional

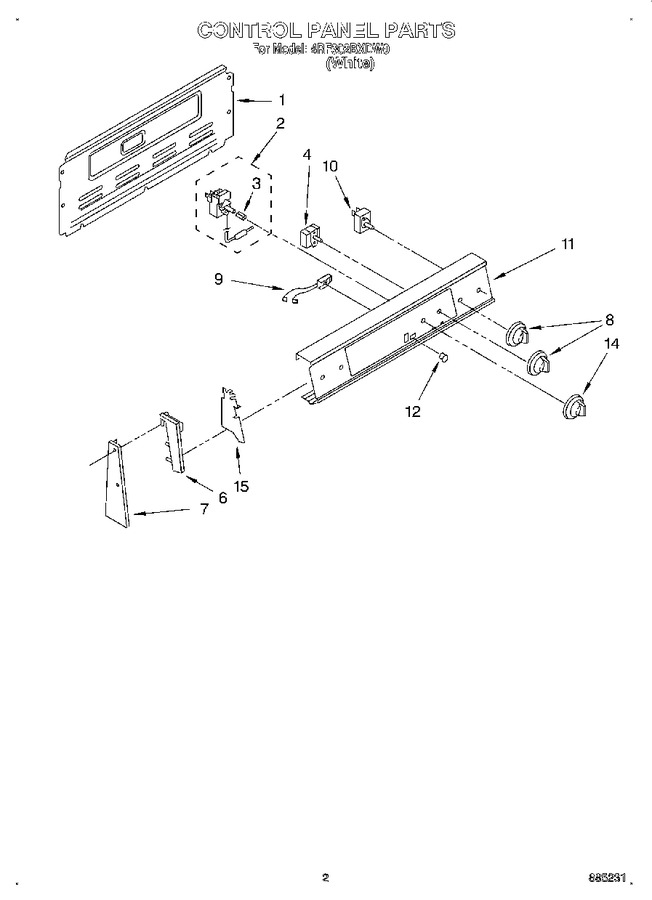

02 - Control Panel


03 - Door And Drawer


04 - Oven


05 - Unit


06 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP681414		Screw, 10-16 X 1/2 (8)   (Replaces: 343641)			Immediately	$ 8.47
1	3187332		Cover, Rear		Appelez-nous	-
2	WP313808		Screw (2)   (Replaces: 311932)				$ 8.30
2	3169302		Thermostat, Oven				$ 193.75
3	3169525		Sleeve, Adaptor		Appelez-nous	-
4	308119		Screw, 8-32 X 1/4 (2)		Appelez-nous	-
4	WP3188987		Switch, 3 Pos. Selector   (Replaces: 3188987)				$ 162.14
6	254225		(end Cap, L.h.) (screw 8bt X 1/4 (4))		Appelez-nous	-
6	3187792		End Cap L.h. (black)		Appelez-nous	-
6	3187791		End Cap, R.h. (black)		Appelez-nous	-
7	WP3390631		(end Trim L.h.) (screw, 10a X 3/8 (2))   (Replaces: 309112)				$ 8.25
7	3187672		End Trim (lh, Black)		Appelez-nous	-
7	WP681414		(end Trim L.h.) (screw, 10-16 X 1/2 (4))   (Replaces: 343641)			Immediately	$ 8.47
7	3187671		End Trim R.h. (black)		Appelez-nous	-
8	WP3196231		Knob, (5) Sel. & Infinite (black)   (Replaces: 3188721)			Immediately	$ 22.00
9	314031		Light, Indicator (includes No. 12) (oven Unit On)				$ 62.88
9	3169457		Light, Indicator (includes No. 12) (surface Unit On)		Appelez-nous	-
10	5500-287		Switch, Infinite (6`` Element (3))   (Replaces: 3148951)			Immediately	$ 52.39
10	308119		Switch, Infinite (screw, 8-32 X 1/4 (8))		Appelez-nous	-
10	5500-287		Switch, Infinite (8`` Element (1))   (Replaces: 3148953)			Immediately	$ 52.39
11	312604		Panel, Control (screw, 8-18 X 5/8 (4))		Appelez-nous	-
11	3188671		Panel, Control (black)		Appelez-nous	-
11	WP681414		Panel, Control (screw, 10-32 X 1/2)   (Replaces: 690989)			Immediately	$ 8.47
12	313101		Lens, Amber (2)		Appelez-nous	-
14	3188724		Knob, Temperature (black)		Appelez-nous	-
15	WP965173		Screw, No.8x3/8 (2)   (Replaces: 246132)			Immediately	$ 11.87
15	313608		Shield (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
