SELECT A DIAGRAM

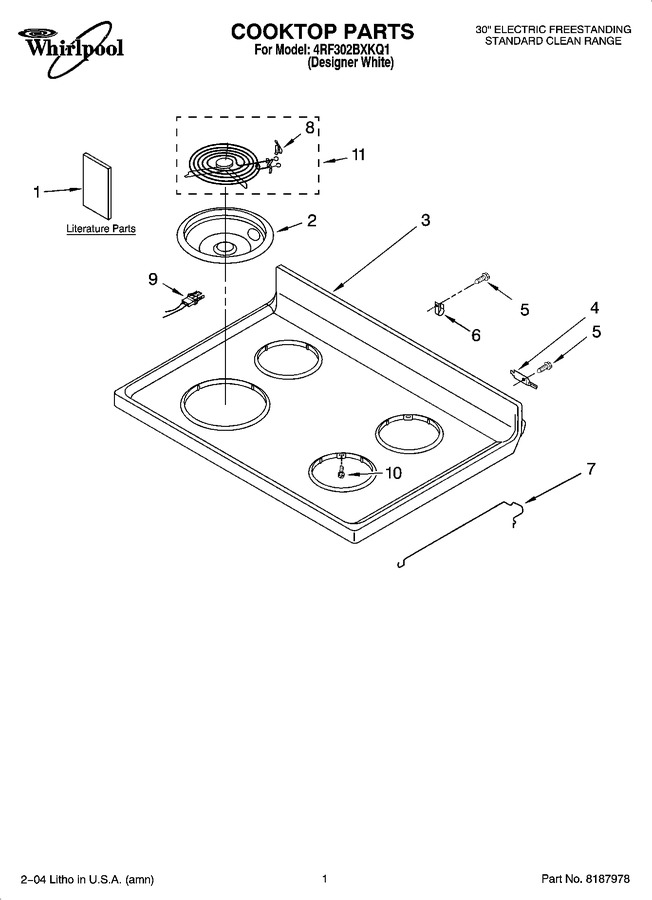

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts, Miscellaneous Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT9757983 | Literature Parts (instructions, Installation) |
|
- | |||||
| 1 | LIT9756849 | Installation Instr (french) |
|
- | |||||
| 1 | LIT8523048 | Literature Parts (installation Instr (spanish)) |
|
- | |||||
| 1 | LIT8054039 | Installation, Instr (saudi) |
|
- | |||||
| 1 | LIT8523324 | Literature Parts (guide, Use & Care (saudi)) |
|
- | |||||
| 1 | LIT8522768 | Literature Parts (guide, Use & Care) |
|
- | |||||
| 1 | LIT4454084 | Literature Parts (sheet, Tech) |
|
- | |||||
| 2 | W10196405RW | Bowl, Drip (8`` Chrome (1)) (Replaces: 3195209) |
|
Immediately | $ 20.78 | ||||
| 2 | WPW10196406 | Bowl, Drip (6`` Chrome (3)) (Replaces: 3195208) |
|
Immediately | $ 13.39 | ||||
| 3 | 3186235 | Cooktop |
|
- | |||||
| 4 | WP3195060 | Hinge, Cooktop (2) (Replaces: 3195060) |
|
Immediately | $ 12.55 | ||||
| 5 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.02 | ||||
| 6 | WP308605 | Strain, Relief (Replaces: 308605) |
|
$ 11.20 | |||||
| 7 | WP3195812 | Rod, Support (2) (Replaces: 3195812) |
|
Immediately | $ 8.31 | ||||
| 8 | WP3195917 | Clip, Spring (Replaces: 3195917) |
|
Immediately | $ 7.73 | ||||
| 9 | 814399 | Receptacle, Elmnt. |
|
Immediately | $ 43.19 | ||||
| 10 | WP3196154 | Screw (Replaces: 3196154) |
|
$ 7.82 | |||||
| 11 | WP9761346 | Element, Surface (includes 8) (8`` (1)) (Replaces: 8053267) |
|
Immediately | $ 104.62 | ||||
| 11 | WPW10345407 | Element, Surface (includes 8) (6`` (3)) (Replaces: 8053265) |
|
Immediately | $ 157.54 |
