SELECT A DIAGRAM

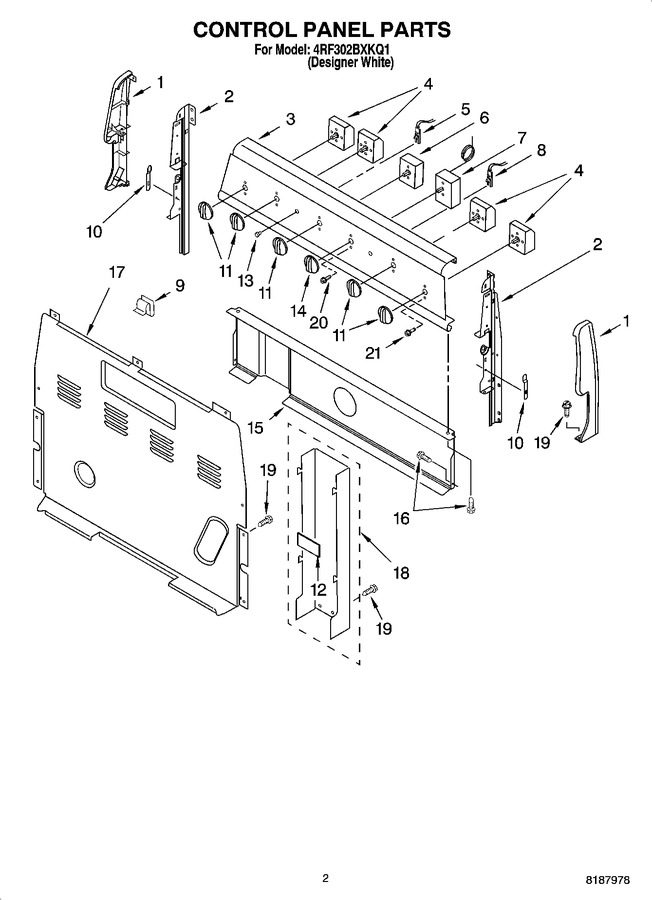

01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Drawer & Broiler Parts


05 - Door Parts, Miscellaneous Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3186190		Endcap (left Hand White)		Appelez-nous	-
1	3186191		Endcap (right Hand White)		Appelez-nous	-
2	8523408		Support, Endcap (left Hand)		Appelez-nous	-
2	8523409		Support, Endcap (right Hand)		Appelez-nous	-
3	3186161		Panel, Backguard		Appelez-nous	-
4	5500-287		Switch, Infinite (use W/ 6`` Element)   (Replaces: 3148951)			Immediately	$ 52.39
4	5500-287		Switch, Infinite (use W/ 8`` Element)   (Replaces: 3148953)			Immediately	$ 52.39
5	8273303		Indicator, Surface		Appelez-nous	-
6	WP3188987		Switch, Selector   (Replaces: 3188987)				$ 154.42
7	WP9762852		Thermostat   (Replaces: 8524329)				$ 387.57
8	314031		Indicator, Oven				$ 62.88
9	WP8273564		Clip   (Replaces: 8273564)				$ 12.06
10	3196200		Clip, Spring (2)				$ 9.95
11	WP8522565		Knob, Infinite (5)   (Replaces: 8522565)			Immediately	$ 19.90
12	9757309		Insulator, Card		Appelez-nous	-
13	WP3196068		Lens, Ind. (2)   (Replaces: 3196068)			Immediately	$ 6.26
14	8522619		Knob, Thermostat		Appelez-nous	-
15	8053912		Shield, Heat				$ 34.55
16	W10276642		Screw   (Replaces: 4449746)				$ 6.10
17	WP8272473		Cover, Upper Rear   (Replaces: 8272473)				$ 208.61
18	WPW10326122		Box, Cover   (Replaces: 9757965)				$ 132.95
19	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.02
20	WP3196170		Screw   (Replaces: 3196170)				$ 7.19
21	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 7.19
