01 - Cooktop Parts
02 - Control Panel Parts

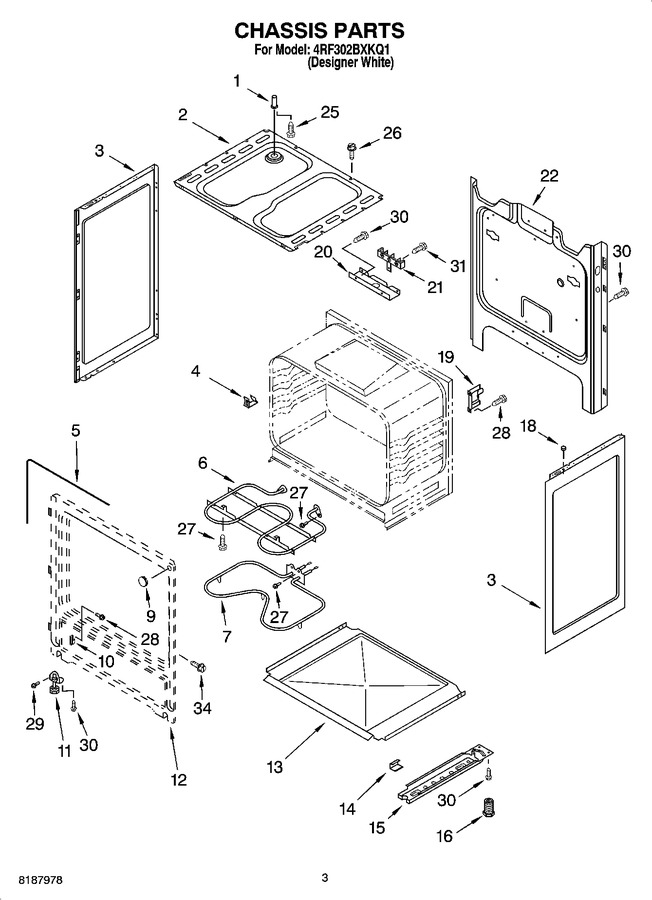

03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts, Miscellaneous Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9755804 | Vent Tube (Replaces: 3169143) |
|
$ 123.68 | |||||
| 2 | W11699791 | Box, Burner (Replaces: 3186144) |
|
$ 249.81 | |||||
| 3 | WPW10575396 | Panel, Side (2) (white-textured) (Replaces: 8053830) |
|
$ 148.71 | |||||
| 4 | 98005642 | Clip, Thermobulb (Replaces: 313382) |
|
Immediately | $ 82.93 | ||||
| 5 | W11542153 | Seal, Oven Door (Replaces: 3186152) |
|
Immediately | $ 50.20 | ||||
| 6 | W10856603 | Element, Broil (Replaces: 8053712) |
|
Immediately | $ 154.62 | ||||
| 7 | WPW10308477 | Element, Bake (Replaces: 9758519) |
|
Immediately | $ 71.86 | ||||
| 9 | 308535 | Plug Button |
|
- | |||||
| 10 | WP3195546 | Glide, Drawer Front (Replaces: 3195546) |
|
Immediately | $ 7.93 | ||||
| 11 | WP3196037 | Foot, Front (2) (Replaces: 3196037) |
|
$ 82.97 | |||||
| 13 | WP8054068 | Tray, Insulation (Replaces: 8054068) |
|
$ 99.39 | |||||
| 14 | 3196576 | Clip, Panel (6) |
|
- | |||||
| 15 | W11818353 | Rail, Base (2) (Replaces: 8053335) |
|
$ 59.68 | |||||
| 16 | WPW10058460 | Foot, Rear (2) (Replaces: 312701) |
|
Immediately | $ 7.85 | ||||
| 18 | 238614 | Bumper, Side (2) (Replaces: 3195809) |
|
$ 80.76 | |||||
| 19 | W10404688 | Support, Oven (2) (Replaces: 3186116) |
|
$ 16.85 | |||||
| 20 | W11763591 | Bracket, Service (Replaces: 3186034) |
|
- | |||||
| 21 | WP112432 | Nut, (3) (Replaces: 112432) |
|
$ 7.96 | |||||
| 21 | WP9761958 | Block, Terminal (Replaces: 9757136) |
|
Immediately | $ 44.13 | ||||
| 22 | 8274034 | Back, Main |
|
$ 123.95 | |||||
| 25 | WP3196567 | Screw (Replaces: 3196567) |
|
$ 7.68 | |||||
| 26 | WP3400832 | Screw (Replaces: 3196168) |
|
Immediately | $ 7.75 | ||||
| 27 | WP3196174 | Screw (Replaces: 3196174) |
|
Immediately | $ 7.82 | ||||
| 28 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.19 | ||||
| 29 | WP98008545 | Screw (Replaces: 3196179) |
|
$ 17.71 | |||||
| 30 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.02 | ||||
| 31 | WP3400016 | Screw (Replaces: 3400016) |
|
$ 7.95 | |||||
| 34 | W11311894 | Insulation, Back (Replaces: 8272611) |
|
$ 106.09 | |||||
| 34 | WP7101P246-60 | Screw (Replaces: 3196177) |
|
$ 7.75 | |||||
| 34 | N/A | Insulation |
|
- | |||||
| 34 | WPW10208653 | Insulation, Wrap (Replaces: 8273263) |
|
Immediately | $ 55.47 |
