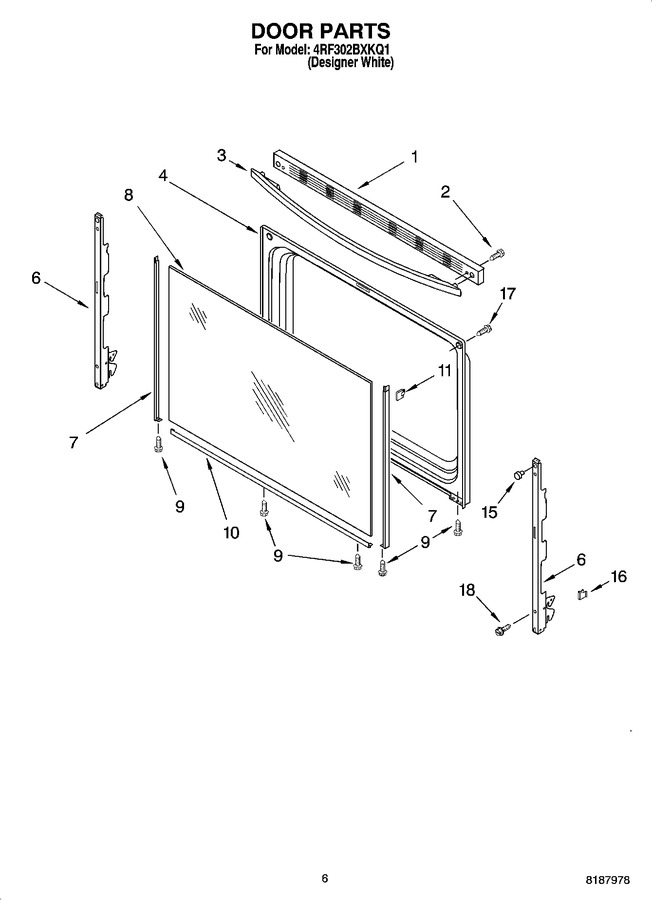

05 - Door Parts, Miscellaneous Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8522433		Trim, Top		Appelez-nous	-
2	WP3196164		Screw   (Replaces: 3196164)			Immediately	$ 8.69
3	WPW10202216		Handle, Door   (Replaces: 8522444)				$ 353.02
4	3186294		Liner, Door		Appelez-nous	-
6	8053809		Hinge, Door (2)		Appelez-nous	-
7	WP8523166		Trim, Door (2) (right Hand-white)   (Replaces: 8523166)			Immediately	$ 84.23
7	WP8523172		Trim, Door (2) (left Hand-white)   (Replaces: 8523172)			Immediately	$ 69.93
8	3196810		Glass, Door		Appelez-nous	-
9	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 7.19
10	W11594186		Trim, Lower   (Replaces: 8523175)			Immediately	$ 58.45
11	3196025		Clip, Glass (4)				$ 20.10
15	238614		Bumper, Door (2)   (Replaces: 3195809)				$ 80.76
16	3196925		Clip, Door Stop				$ 9.06
17	WP179051		Screw   (Replaces: 3196161)			Immediately	$ 7.96
18	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 7.19
	N/A		Miscellaneous		Appelez-nous	-
	350956		Paint, Pressurized Spray (12 Oz.) (almond)				$ 51.44
	WPW10295595		Harness, Cooktop   (Replaces: 3196793)			Immediately	$ 156.06
	9757473		Harness, Oven		Appelez-nous	-
	3400964		Clip, Wire   (Replaces: 3196520)				$ 84.76
	313660		Clip, Ground Wire		Appelez-nous	-
	3184020		Wire, Ground   (Replaces: 311227)				$ 82.78
	WP3196154		Screw, Grnd-cktop   (Replaces: 3196154)				$ 7.82
	WP3196174		Screw, Grnd-back   (Replaces: 3196174)			Immediately	$ 7.82
	814381		Pin Kit-dr Removal				$ 8.59
	4392901		Paint, Pressurized Spray (12oz.) (biscuit)		Appelez-nous	-
	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 17.91
	8316781		Wire, Black 14 Ga. 150 C		Appelez-nous	-
	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
	242829		Wire, Red 12 Ga. 150~c		Appelez-nous	-
	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
	242831		Wire (14 Ga. 200 C Red)				$ 342.23
	242826		Wire, White 14 Ga. 150~c		Appelez-nous	-
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
	242832		Wire, Yellow 14 Ga. 200~c		Appelez-nous	-
	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
	8212471		Touch-up Self-clean(1/2 Pt)   (Replaces: 242756)			Immediately	$ 83.07
	261582		Grease		Appelez-nous	-
	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 55.47
	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 55.47
	4392899		Paint, Touch-up (1/2oz.) (biscuit)			Immediately	$ 26.45
	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 49.29
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	285006		Paint, Pressurized Spray 12 Oz.) (superior Black)				$ 57.04
	350942		Paint, Pressurized Spray (12 Oz.) (primer, White)   (Replaces: 206922)				$ 89.66
	978883		Paint, Bulk (1 Qt.) (almond (uncut))		Appelez-nous	-
	4392900		Paint, Bulk (1 Qt.) (biscuit) (uncut)		Appelez-nous	-
	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
	3184478		Cleaner, Glass		Appelez-nous	-
	8273888A		Anti-tip Kit   (Replaces: 3176830)				$ 31.07
