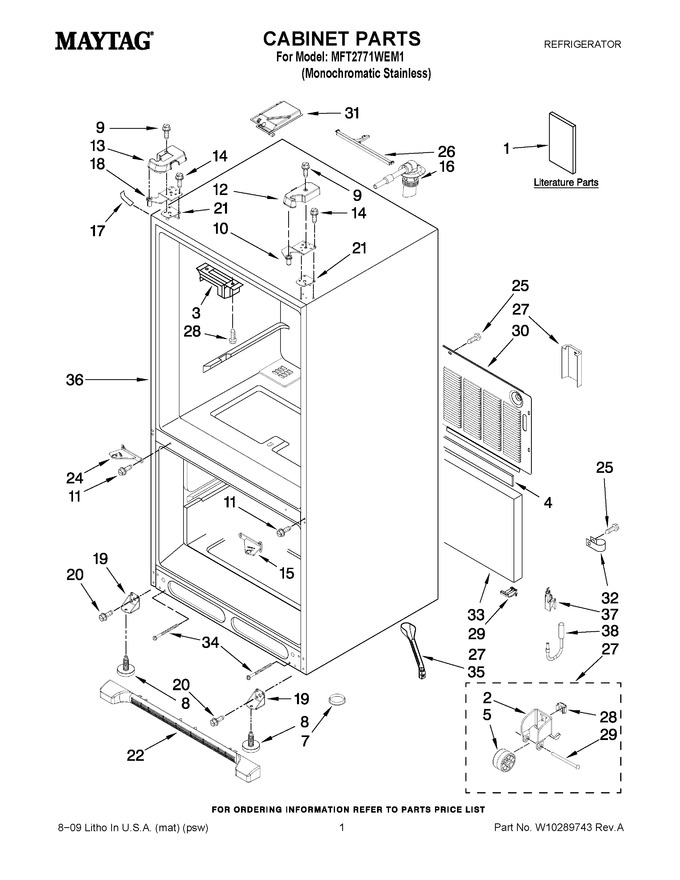

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10238852 | Tech Sheet |
|
- | |||||
| 1 | W10276053 | Tag, Energy |
|
- | |||||
| 1 | W10252999 | Owners Manual |
|
- | |||||
| 2 | 12456801V | Bracket |
|
$ 50.57 | |||||
| 3 | WP67003405 | Block, Pivot (Replaces: 12698403) |
|
Immediately | $ 7.82 | ||||
| 4 | B5759655 | Gasket |
|
$ 12.41 | |||||
| 5 | WP10450603 | Roller (Replaces: 10450603V) |
|
$ 7.88 | |||||
| 7 | A3076901 | Plug-button |
|
$ 5.70 | |||||
| 8 | 10354002 | Brake, Foot |
|
Immediately | $ 7.38 | ||||
| 9 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 7.19 | ||||
| 10 | W11592374 | Hinge, Top Right (Replaces: 12963205ED) |
|
Immediately | $ 29.02 | ||||
| 11 | W11573362 | Screw (6) (Replaces: 12992201) |
|
$ 14.02 | |||||
| 12 | W10272998 | Cover, Right Hinge (apollo Grey) |
|
- | |||||
| 13 | W10272481 | Cover, Left Hinge (apollo Grey) |
|
- | |||||
| 14 | WP489349 | Screw (6) (Replaces: 12992403) |
|
Immediately | $ 7.88 | ||||
| 15 | W10917988 | Hinge, Center (rt) (apollo Grey) (Replaces: 13000002AP) |
|
Immediately | $ 91.08 | ||||
| 16 | W10213219 | Fill Tube, Icemaker |
|
$ 59.52 | |||||
| 17 | WP12587703AP | Cover, Corner (2) (apollo Grey) (Replaces: 12587703AP) |
|
$ 7.69 | |||||
| 18 | W10213415 | Hinge, Top Left |
|
$ 75.00 | |||||
| 19 | 12906303WD | Foot, Cabinet |
|
$ 84.36 | |||||
| 20 | 67006564 | Screw (8) (Replaces: 12991302) |
|
Immediately | $ 7.69 | ||||
| 21 | 12999502 | Shim, Hinge (right) |
|
$ 95.81 | |||||
| 21 | 12999501 | Shim, Hinge (left) |
|
$ 94.79 | |||||
| 22 | WPW10534155 | Grille, Toe (apollo Grey) (Replaces: W10244558) |
|
Immediately | $ 119.56 | ||||
| 24 | W10917988 | Hinge, Center (lt) (apollo Grey) (Replaces: 13000001AP) |
|
Immediately | $ 91.08 | ||||
| 25 | 67006425 | Screw (10) (Replaces: 12990511) |
|
Immediately | $ 6.95 | ||||
| 26 | W10253811 | Cover, Water Line (apollo Grey) |
|
- | |||||
| 27 | 12580304 | Roller Bracket Assembly |
|
$ 5.84 | |||||
| 28 | M0286708 | Nut, Speed (Replaces: M0286708V) |
|
$ 45.57 | |||||
| 29 | M1205302V | Rivet |
|
- | |||||
| 30 | WPW10270394 | Cover, Unit (Replaces: W10270394) |
|
$ 198.79 | |||||
| 31 | W10237969 | Sump, Cabinet Top (icemaker) (apollo Grey) |
|
- | |||||
| 32 | W11456069 | Clamp-tube (Replaces: M0108107) |
|
Immediately | $ 21.33 | ||||
| 33 | 12820505 | Insulation, Sound |
|
$ 71.70 | |||||
| 34 | 71003131 | Bolt, Roller Adjust (Replaces: 12606103) |
|
Immediately | $ 6.74 | ||||
| 35 | W10619951 | Tube, Drain (Replaces: W10210988) |
|
Immediately | $ 42.39 | ||||
| 36 | N/P | Cabinet (not A Servicable Part) |
|
- | |||||
| 37 | W10236761 | Cover, Water Valve |
|
$ 16.11 | |||||
| 38 | W10223786 | Waterline, Household |
|
- |
