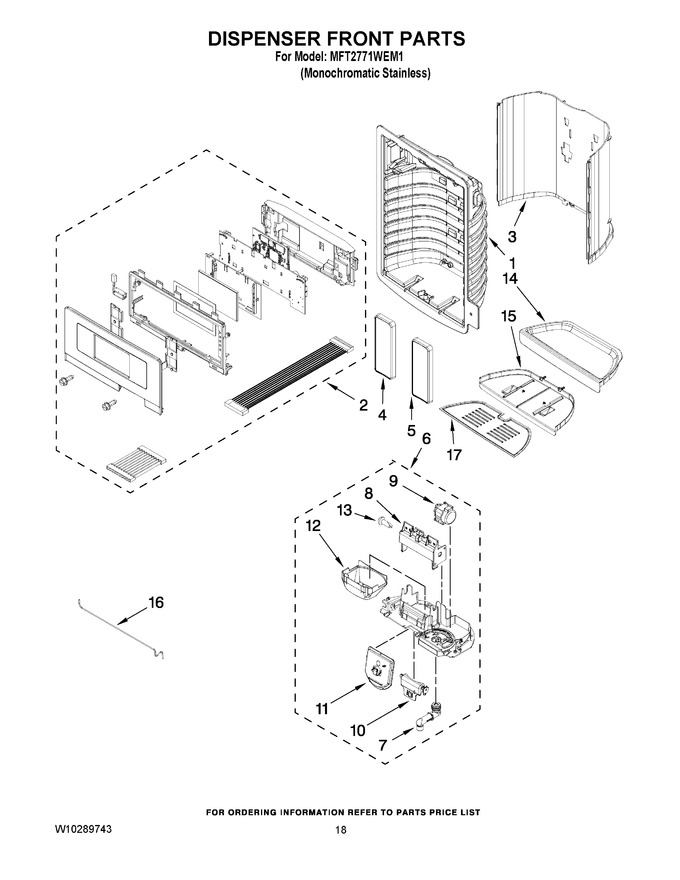

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	W10271914		Ui Assembly (stainless)		Appelez-nous	-
3	W10268792		False Wall, Dispenser (stainless)		Appelez-nous	-
4	W10270560		Pad, Ice (nickel)		Appelez-nous	-
5	W10270564		Pad, Water (nickel)		Appelez-nous	-
6	W10215954		Separator Assembly (stainless)		Appelez-nous	-
7	W11227371		Spigot   (Replaces: 2316647)				$ 136.38
8	W10174827		Bracket, Ice Door				$ 76.42
9	WPW10205979		Motor, Ice Door   (Replaces: W10205979)			Immediately	$ 107.60
10	W10499850		Support, Ice Door   (Replaces: W10174809)				$ 104.67
11	W10346235		Door, Ice   (Replaces: W10174811)				$ 170.32
12	W10499850		Guide, Ice   (Replaces: W10174808)				$ 104.67
13	WP4449745		Screw   (Replaces: 4449745)				$ 7.98
14	WPW10305897		Tray, Dispenser (stainless)   (Replaces: W10267864)				$ 84.81
15	WPW10267863		Slide, Tray Dispenser (apollo Grey)   (Replaces: W10267863)				$ 73.22
16	W10180827		Tube, Water (dispenser)		Appelez-nous	-
17	W10215957		Grate, Drip Tray				$ 52.76

    View Diagram in Separate Window       Print Part List
