SELECT A DIAGRAM

01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Refrigerator Liner Parts


04 - Refrigerator Door Parts

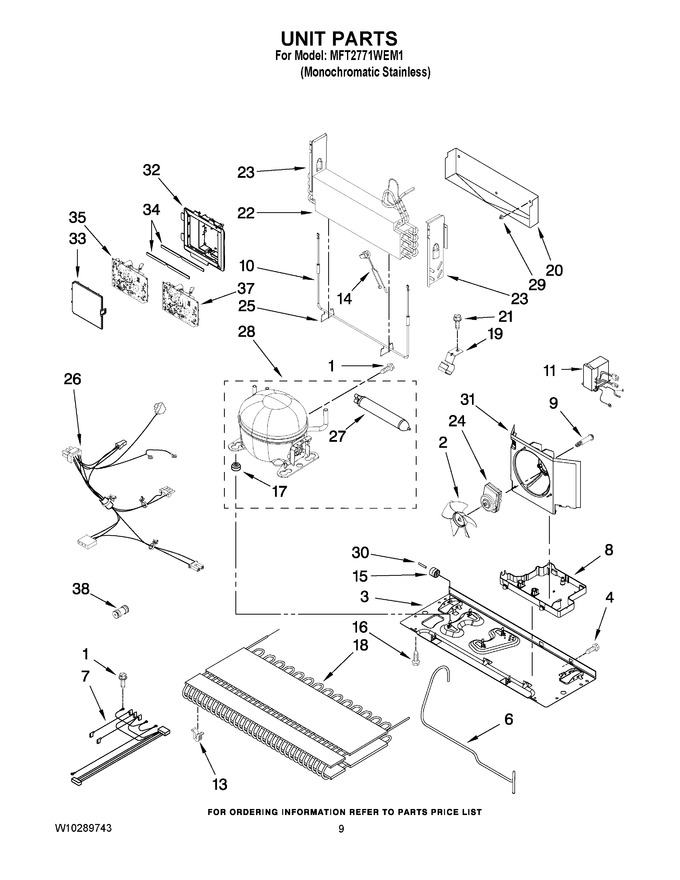

05 - Unit Parts


06 - Shelf Parts


07 - Motor And Ice Container Parts


08 - Icemaker Parts


09 - Freezer Door Parts


10 - Dispenser Front Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12992301		Screw				$ 7.32
2	WP12825803		Blade, Fan   (Replaces: 12825803)			Immediately	$ 75.12
3	W11727651		Basepan   (Replaces: W10210985)				$ 105.29
4	67006425		Screw   (Replaces: 12990511)			Immediately	$ 6.95
6	W10242974		Tube, Discharge				$ 82.85
7	W10180142		Harness, Evap. Heater		Appelez-nous	-
8	WPW10655368		Pan, Drain   (Replaces: W10215085)			Immediately	$ 99.03
9	W10829281		Screw, Shoulder   (Replaces: W10216919)				$ 12.65
10	WP12729123		Heater, Defrost   (Replaces: 12729123)				$ 182.32
11	W10893917		Box, Inverter   (Replaces: W10186719)			Immediately	$ 448.37
13	WPW10137529		Grommet, Cond. (4)   (Replaces: W10137529)				$ 8.34
14	WP67006387		Thermostat, Defrost   (Replaces: 12639311SP)			Immediately	$ 117.68
15	12477102		Roller (2)			Immediately	$ 7.38
16	12992101		Screw		Appelez-nous	-
17	WPW10169124		Grommet (4)   (Replaces: 10835903SP)			Immediately	$ 7.19
18	WPW10346415		Condenser   (Replaces: W10135026)				$ 335.38
19	10547003		Clip, Drier		Appelez-nous	-
20	W11547653		Tray, Drip   (Replaces: 12225403WD)				$ 54.30
21	WP33001882		Screw   (Replaces: 12990701)				$ 79.72
22	12002730		Evaporator   (Replaces: 12959803)				$ 346.32
23	12963102SP		Dam (right Side)		Appelez-nous	-
23	12963002SP		Dam (left Side)		Appelez-nous	-
24	W11613295		Motor, Fan   (Replaces: 12825101)			Immediately	$ 136.84
25	W11673433		Clip, Heater   (Replaces: 10428101)				$ 141.12
26	W10271463		Harness, Unit With Power Cord				$ 264.56
27	WPW10143759		Drier   (Replaces: W10143759)			Immediately	$ 30.78
28	W10276644		Compressor (includes Items 11 And 27)   (Replaces: W10168473)			Immediately	$ 725.31
29	10623002		Clip, Evaporator				$ 11.53
30	67006434		Axle, Roller (2)   (Replaces: 12477202)			Immediately	$ 7.52
31	W11556315		Shroud   (Replaces: W10189184)				$ 79.66
32	W10159461		Box, Hv Control Lid, Hv Box		Appelez-nous	-
33	W11226688		Lid, Hv Box   (Replaces: 12957702)				$ 81.10
34	12957801		Gasket, Hv Box		Appelez-nous	-
35	WPW10267646		Board, Control (hv, Gemini)   (Replaces: W10267646)				$ 356.02
37	WPW10226427		Power Supply   (Replaces: W10226427)			Immediately	$ 335.17
38	WP4373559		Connector, Water   (Replaces: 2209709)				$ 77.35
NI	978026		Valve, Access (5/16``)			Immediately	$ 128.09
NI	SF5538		Valve, Access(3/8``)   (Replaces: 978027)				$ 21.64
NI	978028		Valve, Access (1/2``)		Appelez-nous	-
NI	978029		Valve, Access (5/8``)				$ 93.85
NI	978030		Valve, Access (3/4``)				$ 130.71
NI	876764		Valve, Access(3/16``)			Immediately	$ 91.35
NI	N/P		Refrigerant Charge (5.25 Ozs.(r-134a))		Appelez-nous	-
NI	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25

    View Diagram in Separate Window       Print Part List
