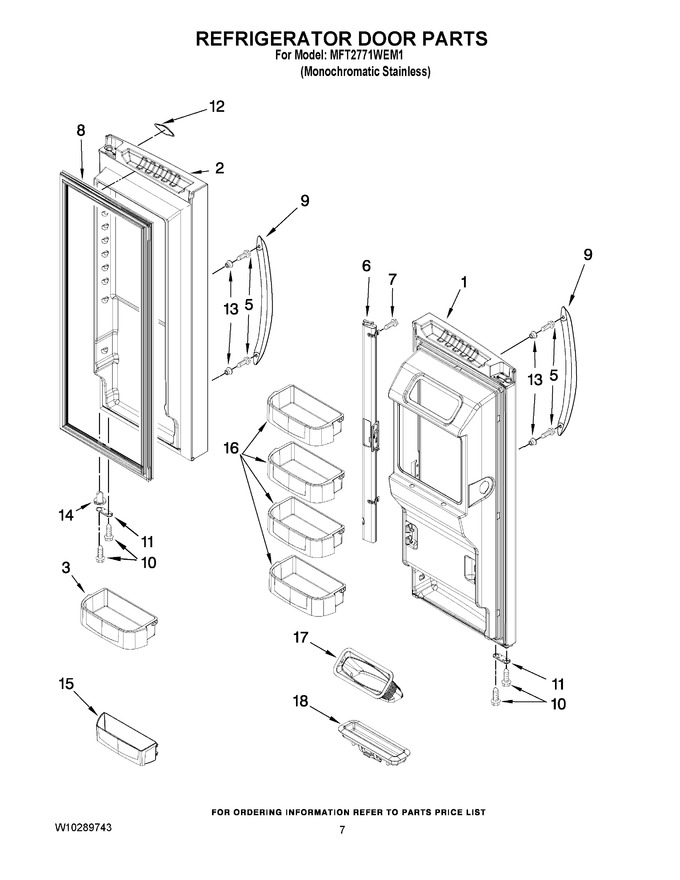

04 - Refrigerator Door Parts


05 - Unit Parts


06 - Shelf Parts


07 - Motor And Ice Container Parts


08 - Icemaker Parts


09 - Freezer Door Parts


10 - Dispenser Front Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	13102607SQ		Door, Left (stainless)		Appelez-nous	-
2	13102606SQ		Door, Right (stainless)				$ 623.93
3	W10237235		Bucket, Door Gallon (lh)		Appelez-nous	-
5	67006901		Bucket, Door   (Replaces: 12991703)			Immediately	$ 8.02
6	WP12722815AP		Mullion, Door (apollo Grey)   (Replaces: 12722815AP)				$ 321.91
7	W11311945		Screw   (Replaces: 12990204)				$ 14.02
8	W10830055		Gasket, Door (apollo Grey)   (Replaces: W10163991)			Immediately	$ 229.10
9	W11690159		Handle, Door (stainless)   (Replaces: W10197295)				$ 165.49
10	WP98165		Screw   (Replaces: 12990504)				$ 8.00
11	W11703060		Stop, Door (apollo Grey)   (Replaces: 12968202AP)				$ 14.72
12	WPW10170766		Nameplate   (Replaces: W10170766)			Immediately	$ 67.14
13	WP67006113		Mount, Handle   (Replaces: 13001201)			Immediately	$ 11.96
14	WP12028505AP		Closure, Door (apollo Grey)   (Replaces: 12028505AP)			Immediately	$ 61.46
15	WPW10212139		Bucket, Small   (Replaces: W10212139)			Immediately	$ 78.54
16	W10237237		Bucket, Door Gallon (rh) (without Gripper)				$ 116.24
17	W10213592		Chute, Ice Door Opening				$ 28.23
18	W10212141		Latch, Ice Bin		Appelez-nous	-
