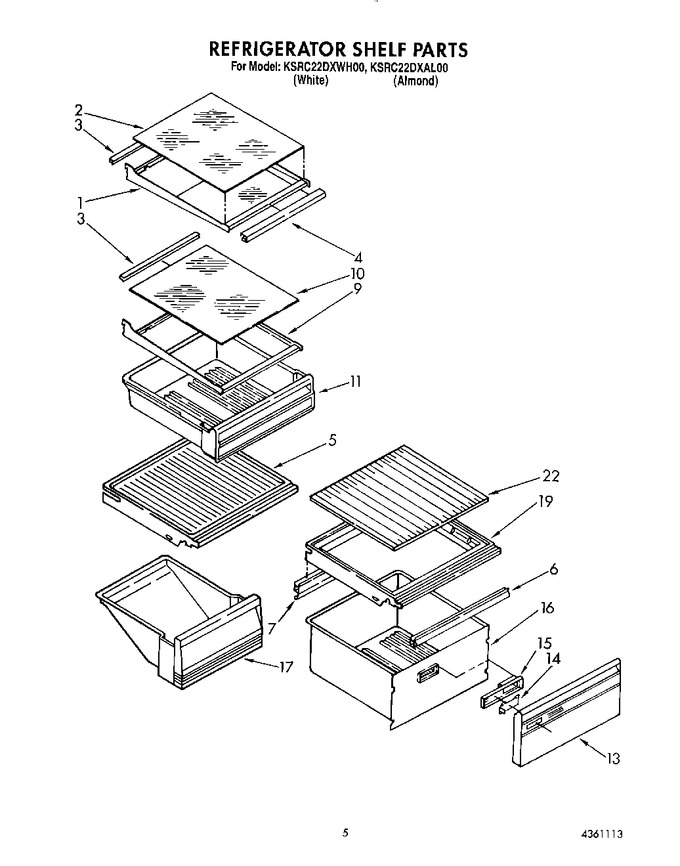

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1125597		Shelf Assembly, Cantilever (2)		Appelez-nous	-
2	1125593		Glass, Shelf		Appelez-nous	-
3	1125594		Retainer, Glass		Appelez-nous	-
4	1125786		Gasket, Front		Appelez-nous	-
5	WP2148298		Cover, Meat Pan   (Replaces: 1126323)				$ 183.32
6	1115291		Gasket, Cover (front)		Appelez-nous	-
7	1115293		Gasket, Cover (rear)		Appelez-nous	-
9	1126272		Pan Shelf & Slide Assembly		Appelez-nous	-
10	1126279		Glass, Shelf		Appelez-nous	-
11	1126274		Utility Bin		Appelez-nous	-
13	1126290		Front, Crisper		Appelez-nous	-
14	1124819		Slide, Humidity		Appelez-nous	-
15	1124820		Housing, Slide		Appelez-nous	-
16	WP2148279		Pan, Crisper   (Replaces: 1114682)				$ 144.08
17	1126288		Meat Pan		Appelez-nous	-
19	WP1126289		Crisper Cover   (Replaces: 1126289)				$ 190.80
22	1126293		Glass, Crisper		Appelez-nous	-
