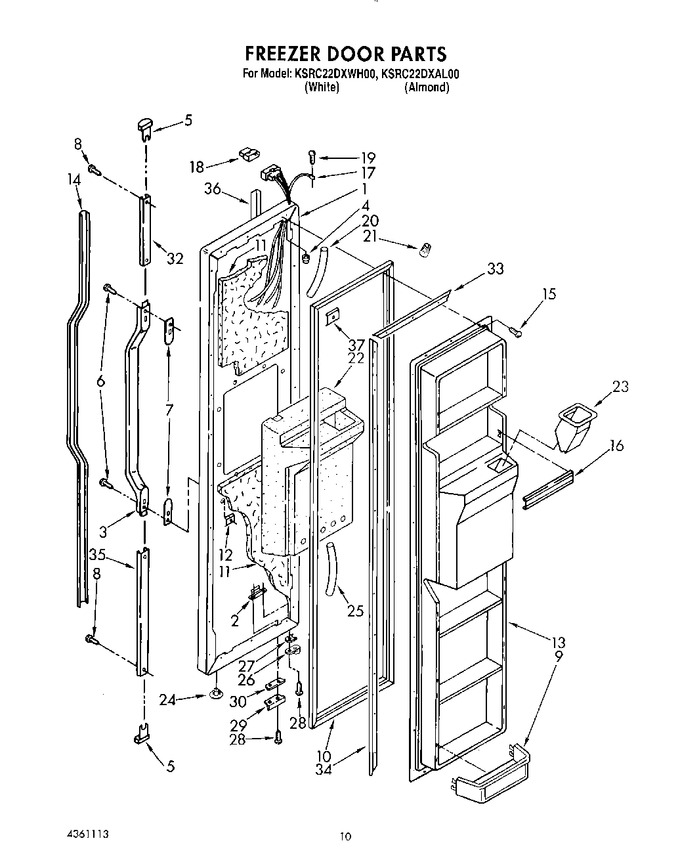

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 1125946 | Freezer, Door Panel (also Order Item 11) (white) |
|
- | |||||
| 1 | 1125952 | Freezer, Door Panel (also Order Item 11) (almond) |
|
- | |||||
| 2 | 988402 | Tap Plate |
|
- | |||||
| 3 | 1107215 | Handle Assembly |
|
- | |||||
| 4 | 939886 | Seal, Hinge Pin |
|
- | |||||
| 5 | 1107341 | End Cap (2) |
|
- | |||||
| 6 | WP488729 | Screw, 8 X 1/2 (4) (Replaces: 487909) |
|
Immediately | $ 8.28 | ||||
| 7 | 1107651 | Spacer, Handle |
|
- | |||||
| 8 | 489075 | Screw (2) |
|
- | |||||
| 9 | 1117928 | Shelf Bin (4) |
|
- | |||||
| 10 | 2188405A | Door Gasket, Magnetic (Replaces: 1125926) |
|
$ 368.63 | |||||
| 11 | 876029 | Foam Insulation |
|
- | |||||
| 12 | 941242 | Screw Anchor (2) |
|
- | |||||
| 13 | 1125649 | Panel, Interior Door |
|
- | |||||
| 14 | 1117950 | Insert, Handle (white) |
|
- | |||||
| 14 | 1117951 | Insert, Handle (almond) |
|
- | |||||
| 15 | WP489069 | Screw, 7 X 1/2 (28) (Replaces: 489101) |
|
Immediately | $ 8.40 | ||||
| 15 | WPW10141645 | Screw (repair) (Replaces: 489084) |
|
$ 8.05 | |||||
| 16 | 1125800 | Trim, Door Shelf |
|
- | |||||
| 17 | 1116960 | Harness, Door (includes Item 18) |
|
- | |||||
| 18 | 936183 | Connector, Plug |
|
- | |||||
| 19 | WP488234 | Screw, 8-32 X 5/32 (Replaces: 488889) |
|
$ 7.08 | |||||
| 20 | 1119059 | Tube, Door Wiring |
|
- | |||||
| 21 | 227991 | Wire Connector |
|
- | |||||
| 22 | 1115206 | Insulation, Dispenser |
|
- | |||||
| 23 | 987188 | Chute, Ice |
|
- | |||||
| 24 | 534927 | Hole Plug (2) |
|
- | |||||
| 25 | 2147080 | Tube, Door Wiring |
|
- | |||||
| 26 | WPW10329686 | Door Closer (lower Cam) (Replaces: 986759) |
|
Immediately | $ 5.90 | ||||
| 26 | 4318165 | Door Closer, Upper Cam (Replaces: 986758) |
|
Immediately | $ 29.74 | ||||
| 27 | WP1104787 | Shim, Door Closer (Replaces: 1104787) |
|
$ 7.96 | |||||
| 28 | WP489399 | Screw, 8 X 1/2 (Replaces: 489358) |
|
$ 7.30 | |||||
| 29 | 988420 | Bracket, Door Stop |
|
- | |||||
| 30 | 988421 | Shim |
|
- | |||||
| 32 | 1107241 | Retainer, Insert |
|
- | |||||
| 33 | 1117767 | Gasket Retainer, Top & Bottom |
|
- | |||||
| 34 | 1117766 | Gasket Retainer, Side (2) |
|
$ 36.55 | |||||
| 35 | 1117953 | Retainer, Insert |
|
- | |||||
| 36 | 1119061 | Trim, Door |
|
- | |||||
| 37 | WP939101 | Screw Anchor (2) (Replaces: 939101) |
|
$ 7.88 |
