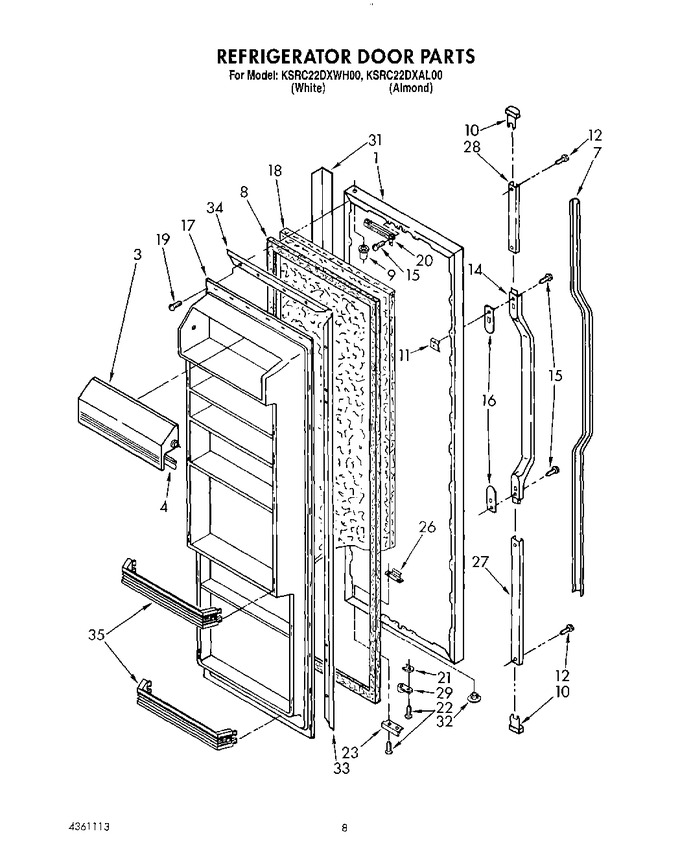

KSRC22DXWH00 | Leon's : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	1117852	Refrigerator Door (almond (also Order Item 18))	Appelez-nous	-
1	1117848	Refrigerator, Door Panel (white)	Appelez-nous	-
3	1125733	Door, Compartment	Appelez-nous	-
4	1125695	Gasket, Utility Door	Appelez-nous	-
7	1117950	Insert, Handle (white)	Appelez-nous	-
7	1117951	Insert, Handle (almond)	Appelez-nous	-
8	2188404A	Door Gasket, Magnetic (Replaces: 1125927)			$ 269.26
9	509929	Cap, Hinge Sleeve	Appelez-nous	-
10	1107341	End Cap, Handle	Appelez-nous	-
11	941242	Screw Anchor (2)	Appelez-nous	-
12	489075	Screw (2)	Appelez-nous	-
14	1107215	Handle Assembly	Appelez-nous	-
15	WP488729	Screw, 8 X 1/2 (4) (Replaces: 487909)		Immediately	$ 7.79
16	1107651	Spacer, Handle	Appelez-nous	-
17	1126204	Panel, Interior Door	Appelez-nous	-
18	876029	Foam Insulation (required When Replacing Exterior Door Panel)	Appelez-nous	-
19	WP489069	Screw, 7 X 1/2 (30) (Replaces: 489101)		Immediately	$ 7.86
19	WPW10141645	Screw (repair) (Replaces: 489084)			$ 7.67
20	1117898	Door Closer, Upper Cam	Appelez-nous	-
21	WP1104787	Shim, Door Closer (Replaces: 1104787)			$ 7.58
22	WP489069	Screw, 8 X 1/2 (Replaces: 488938)		Immediately	$ 7.86
23	988420	Bracket, Door Stop	Appelez-nous	-
26	988402	Tap Plate	Appelez-nous	-
27	1117953	Retainer, Insert (bottom)	Appelez-nous	-
28	1107241	Retainer, Insert	Appelez-nous	-
29	N/A	N/a	Appelez-nous	-
31	1119061	Trim, Door	Appelez-nous	-
32	534927	Hole Plug (2)	Appelez-nous	-
33	1117766	Gasket Retainer, Side (2)			$ 36.55
34	1118301	Gasket Retainer, Top & Bottom	Appelez-nous	-
35	4318416	Trim Kit Panel (black Grille Kit)	Appelez-nous	-
35	1126206	Shelf Bin (4)			$ 36.28
35	4318331	Trim Kit	Appelez-nous	-
35	4211136	Trim Kit Panel (white)	Appelez-nous	-
35	4211135	Trim Kit Panel (almond Handle Insert)	Appelez-nous	-
35	4318334	Trim Kit Panel (black)	Appelez-nous	-
35	4318335	Trim Kit Panel (woodgrain)	Appelez-nous	-
NI	988421	Shim	Appelez-nous	-
