SELECT A DIAGRAM

01 - Cabinet


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Freezer Interior


05 - Air Flow


06 - Refrigerator Door


07 - Freezer Door


08 - Dispenser Front


09 - Unit


10 - Freezer Liner


11 - Control


12 - Icemaker, Lit/optional

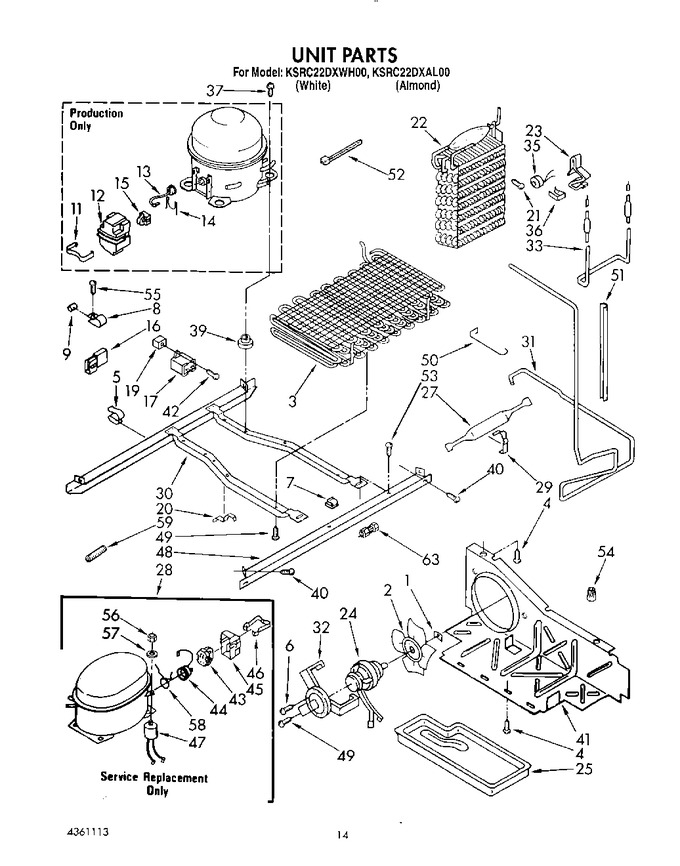

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP486692		Speed Nut   (Replaces: 486692)				$ 8.43
2	1108179		Fan, Blade				$ 49.54
3	1105640		Condenser Assembly		Appelez-nous	-
4	WP489464		Screw   (Replaces: 489337)			Immediately	$ 8.38
5	548745		Clip, Wire (2)		Appelez-nous	-
6	681390		Screw, 8-32 X 3/8   (Replaces: 489019)				$ 13.71
7	934011		Clip (3)		Appelez-nous	-
8	510716		Tube Clamp		Appelez-nous	-
9	510769		Dampener		Appelez-nous	-
11	943322		Spring, Relay Case		Appelez-nous	-
12	1105055		Case, Relay		Appelez-nous	-
13	945586		Overload		Appelez-nous	-
14	943320		Overload Spring		Appelez-nous	-
16	1118850		Housing Plug		Appelez-nous	-
17	WPW10662129		Running, Capacitor   (Replaces: 1114291)			Immediately	$ 58.86
19	509812		Screw Grommet		Appelez-nous	-
20	548744		Clip, Unit Cover (2)		Appelez-nous	-
21	WP489478		Screw   (Replaces: 489242)				$ 8.18
22	1106987		Evaporator		Appelez-nous	-
23	1108431		Clamp (4)		Appelez-nous	-
24	833697		Fan Motor   (Replaces: 2149963)			Immediately	$ 88.15
25	1105524		Tray, Evaporator		Appelez-nous	-
27	W10843121		Drier   (Replaces: 1105550)			Immediately	$ 57.13
28	876765		Tube Kit			Immediately	$ 90.65
28	482981		Compressor (includes Items 43, 44, 45, 46, 47, 56, 57, & 58) (also Order)		Appelez-nous	-
29	1127590		Clamp, Dryer		Appelez-nous	-
30	2304903		Unit Mounting Frame   (Replaces: 1127944)				$ 244.68
31	1106990		Exchanger, Heat		Appelez-nous	-
32	548695		Fan, Motor Bracket		Appelez-nous	-
33	2154542		Heater, Defrost		Appelez-nous	-
35	WP4387499		Bimetal, Defrost   (Replaces: 2154544)				$ 126.90
36	513584		Clamp		Appelez-nous	-
37	876811		Screw, 1/4-28 X 1   (Replaces: 489373)				$ 7.79
39	876811		Grommet (4)   (Replaces: 1100826)				$ 7.79
40	489340		Screw		Appelez-nous	-
41	1105530		Baffle, Air		Appelez-nous	-
42	W11693756		Screw, 8 X 5/8   (Replaces: 488687)			Immediately	$ 14.76
43	WP2262181		Relay   (Replaces: 1108143)				$ 128.78
44	483037		Overload		Appelez-nous	-
45	1105015		Cover, Terminal		Appelez-nous	-
46	938384		Strap		Appelez-nous	-
47	482996		Capacitor		Appelez-nous	-
48	2149717		Unit Mounting Rail		Appelez-nous	-
49	488624		Screw		Appelez-nous	-
50	1105614		Guard, Fan		Appelez-nous	-
51	1114634		Sleeve		Appelez-nous	-
52	851095		Strap		Appelez-nous	-
53	WP489427		Screw, 1/4-28 X 1/2 (2)   (Replaces: 489339)				$ 7.84
54	227991		Wire Connector		Appelez-nous	-
55	WPW10141625		Screw, 8-32 X 1/2   (Replaces: 488197)				$ 22.22
56	489142		Nut		Appelez-nous	-
57	489143		Washer		Appelez-nous	-
58	1114190		Overload Spring		Appelez-nous	-
59	983659		Spring, Tube Forming		Appelez-nous	-
63	876764		Valve, Access(3/16``)			Immediately	$ 95.92
63	978028		Valve, Access (1/2)		Appelez-nous	-
63	978029		Valve Access (5/8``)				$ 93.85
63	978030		Valve, Access (3/4``)				$ 137.25
63	WP4211117		Union   (Replaces: 2150347)				$ 10.46
63	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
63	978026		Valve, Access (5/16``)			Immediately	$ 134.49
63	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64

    View Diagram in Separate Window       Print Part List
