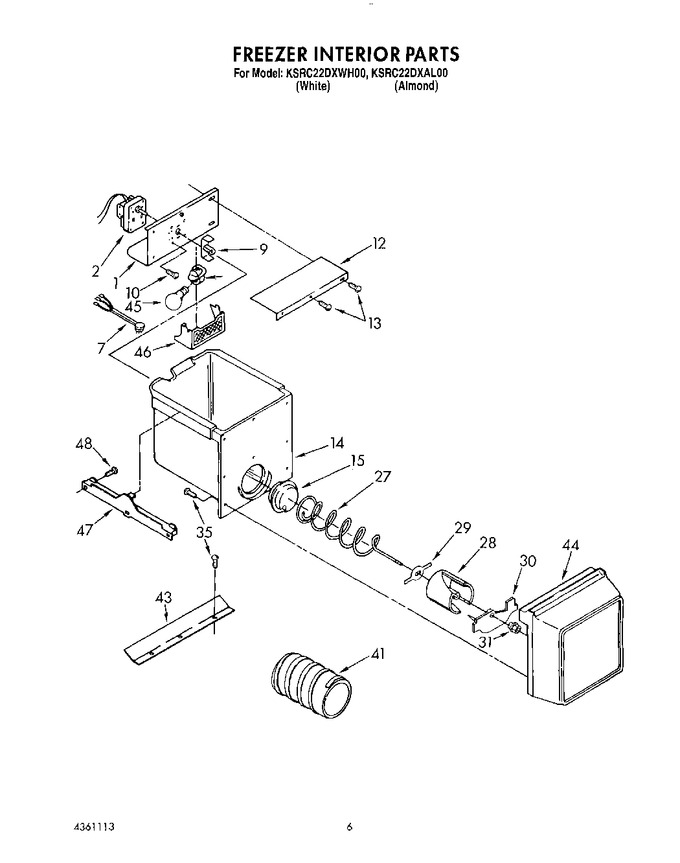

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10284487		Bracket, Motor   (Replaces: 1115208)				$ 119.81
2	851152		Motor, Dispenser		Appelez-nous	-
7	2149942		Wiring Assembly, Ice Dispenser		Appelez-nous	-
9	WPW10169511		Coupling, Motor   (Replaces: 983663)				$ 24.51
10	WP489478		Screw   (Replaces: 489242)				$ 8.18
12	WPW10284487		Cover, Motor   (Replaces: 1115210)				$ 119.81
13	00487294		Screw, 8-32 X 3/8   (Replaces: 487294)				$ 175.09
14	WP2196089		Ice Container   (Replaces: 2152703)				$ 220.24
15	W10749708		Coupling, Conveyor   (Replaces: 983668)				$ 27.44
27	1115214		Conveyor		Appelez-nous	-
28	4388736		Drum   (Replaces: 946193)				$ 96.97
29	4388736		Drive Bar   (Replaces: 946192)				$ 96.97
30	1115362		Floating Baffle		Appelez-nous	-
31	946195		Nut, Bearing		Appelez-nous	-
35	WP488787		Screw, (8-18 X 1/2)   (Replaces: 488886)				$ 11.26
41	4317870		Sleeve-auger   (Replaces: 2152021)				$ 136.02
43	1127233		Deflector, Ice Container		Appelez-nous	-
44	1126034		Front Cover, Ice Container		Appelez-nous	-
45	316538904		Light Bulb   (Replaces: 527949)			Immediately	$ 22.75
46	983359		Light Lens, Dispenser		Appelez-nous	-
47	W10845585		Slide, Container (left Side)   (Replaces: 1119237)				$ 139.41
47	W10845583		Slide, Container (right Side)   (Replaces: 1119293)				$ 130.12
48	718257		Screw   (Replaces: 489100)		Appelez-nous	-
NI	303776		Screw, 8-32 X 5/16 (4)   (Replaces: 488906)		Appelez-nous	-
NI	WP1115374		Clip, Wiring   (Replaces: 1115374)				$ 8.14
NI	4387478		Socket, Light   (Replaces: 851067)			Immediately	$ 115.67

    View Diagram in Separate Window       Print Part List
