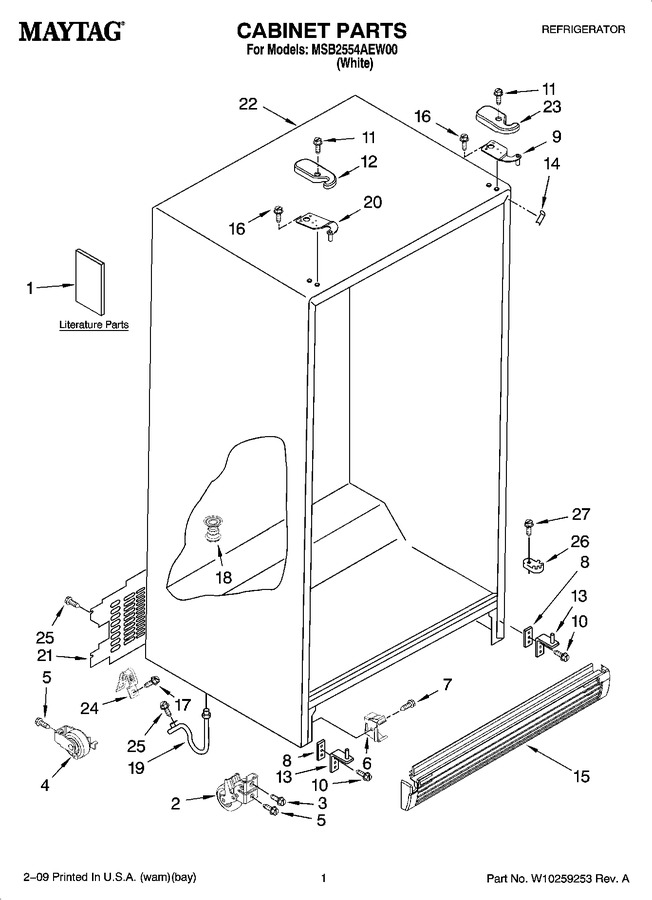

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10179960 | Energy Guide |
|
- | |||||
| 1 | W10142192 | Service And Wiring Sheet |
|
- | |||||
| 1 | W10217561 | Owner`s Manual |
|
- | |||||
| 2 | 2174748 | Front Roller (2) |
|
- | |||||
| 3 | W10850698 | Screw (Replaces: 3400517) |
|
$ 14.42 | |||||
| 4 | WPW10250570 | Rear Roller (2) (Replaces: 2196236) |
|
$ 42.18 | |||||
| 5 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.84 | |||||
| 6 | WP2155013 | Clip, Grille (Replaces: 2155013) |
|
Immediately | $ 8.11 | ||||
| 7 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 8 | 2209697 | Shim |
|
$ 41.25 | |||||
| 9 | WP2203771 | Hinge Top, Rc (Replaces: 2203771) |
|
$ 103.13 | |||||
| 10 | WP489497 | Screw (Replaces: 3400113) |
|
Immediately | $ 29.09 | ||||
| 11 | WP8281227 | Screw (Replaces: 8281227) |
|
$ 10.96 | |||||
| 12 | W10138581 | Hinge Cover (fc) |
|
- | |||||
| 13 | 8201707 | Bottom Hinge (Replaces: 2217075) |
|
$ 97.45 | |||||
| 14 | WPW10283959 | Filler, Wrapper (Replaces: 2201014) |
|
$ 8.21 | |||||
| 15 | WPW10283946 | Grille (Replaces: 2198470W) |
|
$ 150.70 | |||||
| 16 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 29.09 | ||||
| 17 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 8.38 | ||||
| 18 | W11566763 | Drain Fitting (Replaces: 2304888) |
|
Immediately | $ 53.45 | ||||
| 19 | W11512417 | Extension Tube (Replaces: 2304937) |
|
$ 36.53 | |||||
| 20 | WP2203770 | Hinge, Top Fc (Replaces: 2203770) |
|
$ 100.30 | |||||
| 21 | 2214575 | Cover, Unit (Replaces: 2214574) |
|
- | |||||
| 23 | W10138576 | Hinge Cover (rc) |
|
- | |||||
| 24 | 489348 | Clamp, Service Cord |
|
- | |||||
| 25 | WPW10141645 | Screw (Replaces: 489084) |
|
$ 8.05 | |||||
| 26 | WPW10329686 | Door Closer, Lower Cam (Replaces: 2155311) |
|
Immediately | $ 5.90 | ||||
| 27 | WP489483 | Screw (Replaces: 489483) |
|
$ 11.41 |
