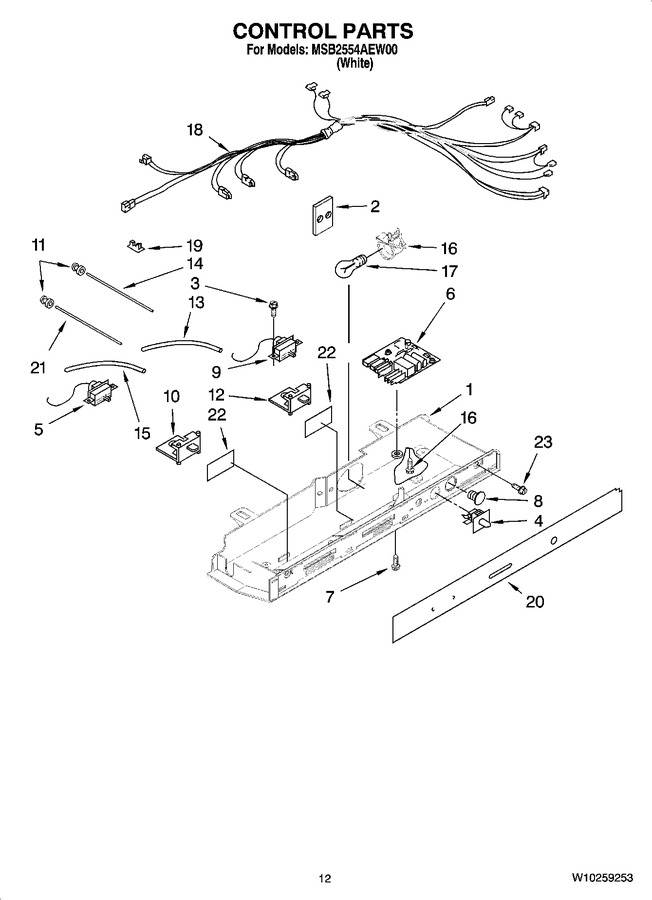

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2200135		Control Box		Appelez-nous	-
2	W10173095		Heat Shield		Appelez-nous	-
3	2006254		Screw (2)   (Replaces: 489214)				$ 13.79
4	WP2149705		Switch, Light   (Replaces: 2321287)			Immediately	$ 40.40
5	WP2321289		Thermostat (fc)   (Replaces: 2321289)				$ 230.19
6	WP2188379		Control Board Assembly   (Replaces: 2321261)				$ 193.40
7	489392		Screw (2)   (Replaces: 489398)				$ 14.02
8	940014		Hole Plug				$ 18.33
9	WP2321305		Thermostat (rc)   (Replaces: 2321305)				$ 241.74
10	2161466		Slide, Air Control				$ 22.28
11	2172906		Grommet, Light Bar (4)		Appelez-nous	-
12	2161466		Slide, Thermostat				$ 22.28
13	WP2196003		Tube, Barrier   (Replaces: 2182150)				$ 7.95
14	2179920		Light Bar (rc)				$ 37.08
15	WP2196003		Tube, Barrier   (Replaces: 2196003)				$ 7.95
16	W11447232		Light Socket   (Replaces: W10134764)			Immediately	$ 13.21
17	WP67002552		Light Bulb   (Replaces: 851682)			Immediately	$ 11.75
18	2310533		Control Box Harness				$ 329.81
19	1115375		Clip-wiring				$ 11.15
20	W10203047		Escutcheon, Control Box		Appelez-nous	-
21	2179921		Light Bar (fc)		Appelez-nous	-
22	2172940		Window		Appelez-nous	-
23	WPW10141645		Screw (2)   (Replaces: 489084)				$ 7.67
