SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Refrigerator Door Parts


06 - Freezer Door Parts


07 - Air Flow Parts


08 - Control Parts


09 - Unit Parts


10 - Optional Parts (not Included)

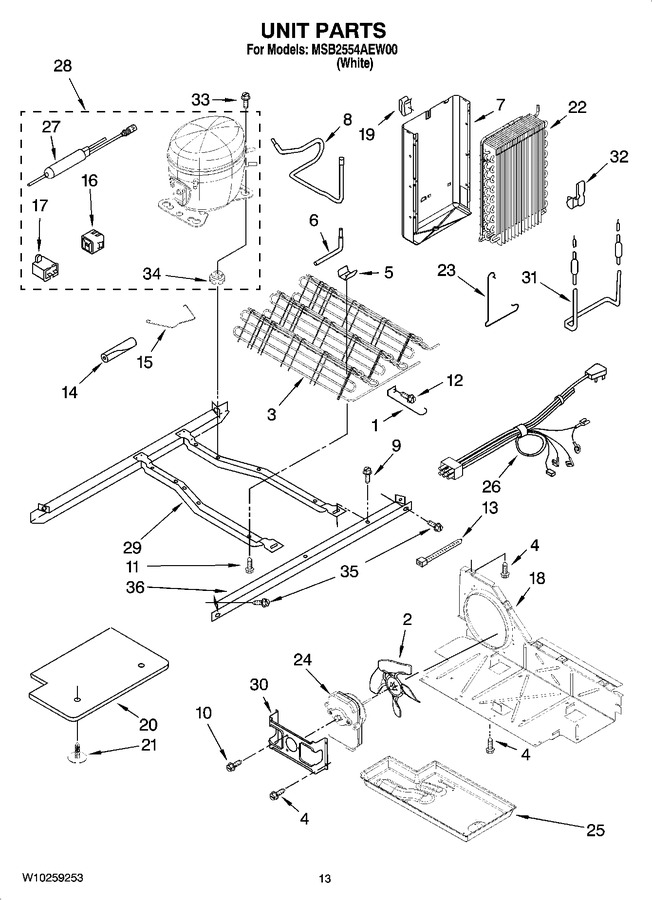

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1110663		Guard, Fan		Appelez-nous	-
2	W11458267		Fan, Blade   (Replaces: 2225834)			Immediately	$ 25.19
3	2324712		Condenser Assembly   (Replaces: W10222348)				$ 323.45
4	WP489464		Screw   (Replaces: 489464)			Immediately	$ 8.38
5	W10683556		Clip, Condenser   (Replaces: 2311725)				$ 19.38
6	2325479		Process Tube		Appelez-nous	-
7	W10194475		Heat Shield And Drain Pan		Appelez-nous	-
8	2205765		Tube, Suction				$ 36.04
9	WP489427		Screw   (Replaces: 489427)				$ 7.84
10	WP8533993		Screw   (Replaces: 8533993)				$ 11.21
11	W11544659		Screw   (Replaces: 8281232)				$ 14.35
12	WP489478		Screw   (Replaces: 489478)				$ 8.18
13	WPW10339879		Wire Tie   (Replaces: 2263990)				$ 8.30
14	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 21.32
15	2302129		Clip, Retaining		Appelez-nous	-
16	WP2303345		Start-device, Combination Relay And Overload (service)   (Replaces: 2303345)				$ 132.66
16	2312003		Start-device, Combination Relay And Overload (production)		Appelez-nous	-
17	2321245		Capacitor (service)		Appelez-nous	-
18	W10163483		Air Baffle		Appelez-nous	-
19	2155547		Clip, Heat		Appelez-nous	-
20	2304899		Unit Cover, Bottom		Appelez-nous	-
21	489396		Clip				$ 11.26
22	WP2188823		Evaporator   (Replaces: 2188823)			Immediately	$ 381.49
23	2161324		Clip		Appelez-nous	-
24	WP2321271		Motor, Fan   (Replaces: 2321271)				$ 325.47
25	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 113.18
26	W10123575		Harness, Unit		Appelez-nous	-
27	WPW10143759		Drier (production)   (Replaces: W10177049)			Immediately	$ 30.78
27	W10843121		Drier (service)   (Replaces: 4387019)			Immediately	$ 57.13
28	WP8201733		Compressor (includes Items 16, 17, 27, & 34) (also Order 876765 Tube Kit)   (Replaces: W10120454)				$ 581.19
29	W10196321		Unit Mounting Frame		Appelez-nous	-
30	WP2181929		Bracket, Fan Motor   (Replaces: 2181929)				$ 12.93
31	WPW10123653		Heater, Defrost   (Replaces: W10123653)				$ 164.49
32	2161324		Clip, Heater		Appelez-nous	-
33	876811		Screw   (Replaces: 489373)				$ 7.79
34	876811		Grommet (4) (service)   (Replaces: 1100826)				$ 7.79
35	489340		Screw		Appelez-nous	-
36	WPW10196323		Unit Mounting Rail   (Replaces: W10196323)				$ 124.89
NI	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
NI	978026		Valve, Access (5/16``)			Immediately	$ 134.49
NI	SF5538		Valve, Access(3/8``)   (Replaces: 978027)				$ 21.64
NI	978028		Valve, Access (1/2``)		Appelez-nous	-
NI	978029		Valve, Access (5/8``)				$ 93.85
NI	978030		Valve, Access (3/4``)				$ 137.25
NI	876764		Valve, Access(3/16``)			Immediately	$ 95.92

    View Diagram in Separate Window       Print Part List
