Diagram # Part Number Description Series Availability Ships Price Add to Cart
2 W10175967 Escutcheon, Meat Pan Control Special Order $ 77.20

3 2182757 Slide Meat Pan Control Special Order $ 75.15

4 2257741 Louver Appelez-nous -
5 2256035 Bracket, Dual Crisper Light Special Order $ 62.54

6 W10123602 Wire Harness, Dual Crisper Appelez-nous -
7 2209769 Light Lens Appelez-nous -
8 WP67002552 Light Bulb   (Replaces: 851682) In-Stock Immediately $ 12.34

9 W10759522 Screw (2)   (Replaces: W10004810) Special Order $ 8.24

10 WP2256085 Bracket Retainer   (Replaces: 2256085) Special Order $ 36.10

11 WP488488 Screw   (Replaces: 489290) Special Order $ 8.52

12 WPW10129864 Air Diffuser Assembly   (Replaces: W10129864) Special Order $ 361.52

13 WP2212240 Air Diffuser Cover   (Replaces: 2212240) Special Order $ 138.15

14 2150331 Cover, Wiring Special Order $ 25.62

15 W11447232 Socket   (Replaces: W10134764) In-Stock Immediately $ 13.87


    View Diagram in Separate Window     Print Icon   Print Part List

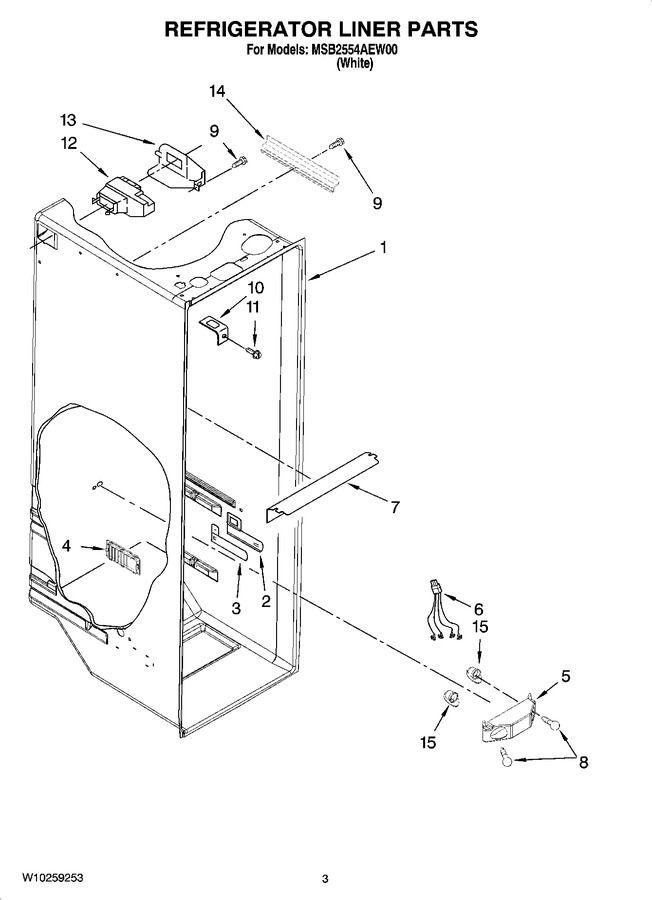

Diagram for MSB2554AEW00
