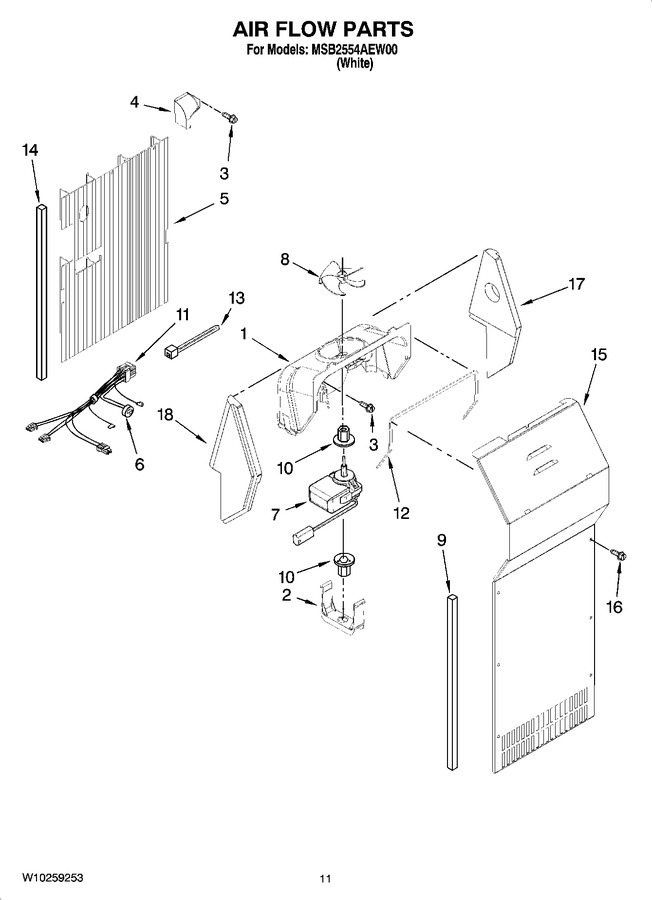

07 - Air Flow Parts


08 - Control Parts


09 - Unit Parts


10 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP2182120		Fan Scroll   (Replaces: 2182120)			Immediately	$ 117.57
2	2155590		Retainer, Fan Motor				$ 5.83
3	WP489478		Screw   (Replaces: 489478)				$ 8.18
4	W10803597		Air Scoop   (Replaces: 2161229)				$ 86.12
5	W11755719		Air Duct Freezer   (Replaces: 2203594)		Appelez-nous	-
6	WPW10225581		Bi-metal, Defrost   (Replaces: 2188824)			Immediately	$ 50.77
7	WP2321275		Fan Motor   (Replaces: 2321275)				$ 318.82
8	WP2169142		Fan Blade   (Replaces: 2169142)			Immediately	$ 43.41
9	WP2304241		Gasket, Evaporator Cover (2)   (Replaces: 2304241)			Immediately	$ 86.94
10	WP2176759		Fan Grommet (2)   (Replaces: 2176759)				$ 8.16
11	W10242395		Harness, Fan Evaporator (includes 6)   (Replaces: W10129781)		Appelez-nous	-
12	WP2155789		Gasket, Fan Scroll   (Replaces: 2155789)				$ 8.18
13	WPW10339879		Strap   (Replaces: 2263990)				$ 8.30
14	4388500		Gasket   (Replaces: 2203876)				$ 94.91
15	W10194476		Cover, Evaporator (includes 9)		Appelez-nous	-
16	4389654		Screw (6)   (Replaces: 8281159)				$ 14.58
17	4388358		Support, R.s   (Replaces: 2203595)				$ 32.72
18	4388358		Support, L.s.   (Replaces: 2203596)				$ 32.72
