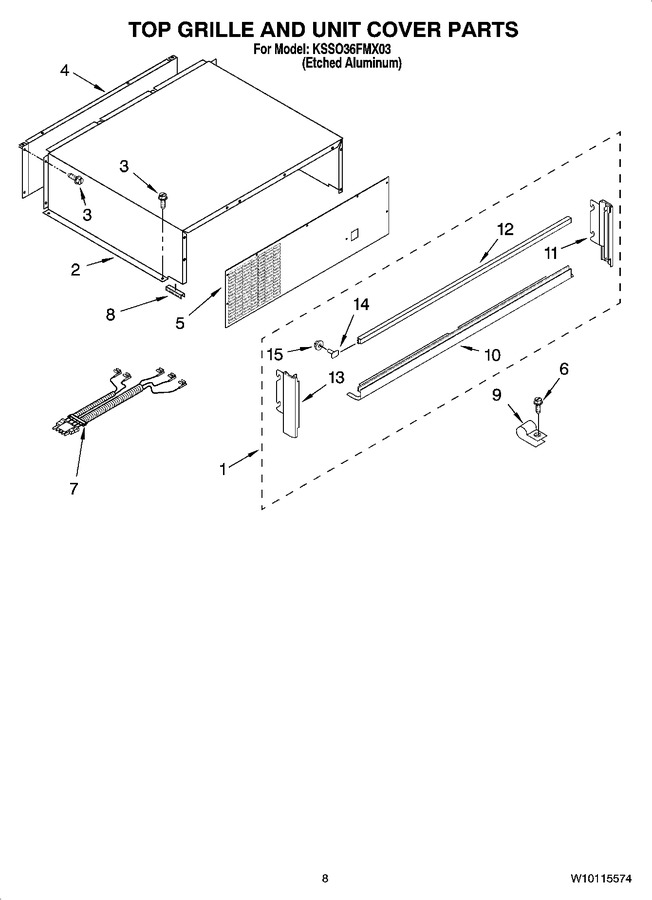

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2259422X		Top Grille Assembly (etched Aluminum)		Appelez-nous	-
2	2259320		Cover, Unit		Appelez-nous	-
3	W11624204		Screw   (Replaces: 486194)				$ 14.02
4	2256466		Back Panel				$ 311.64
5	2320678		Cover-unit, Front		Appelez-nous	-
6	WP965173		Screw   (Replaces: 487415)			Immediately	$ 10.72
7	2310194		Wire Assembly, Rc/fc Light Switch				$ 69.47
8	2215910		Grommet, Flexible				$ 89.83
9	489348		Clamp		Appelez-nous	-
10	2259434X		Grille-trim, Bottom		Appelez-nous	-
11	2259420X		Grille-trim, Right Side		Appelez-nous	-
12	2259440X		Grille-trim, Top		Appelez-nous	-
13	2259421X		Grille-trim, Left Side		Appelez-nous	-
14	WP488130		Nut   (Replaces: 1161548)				$ 6.97
15	2003347		Screw, 8-32 X .437				$ 14.28
