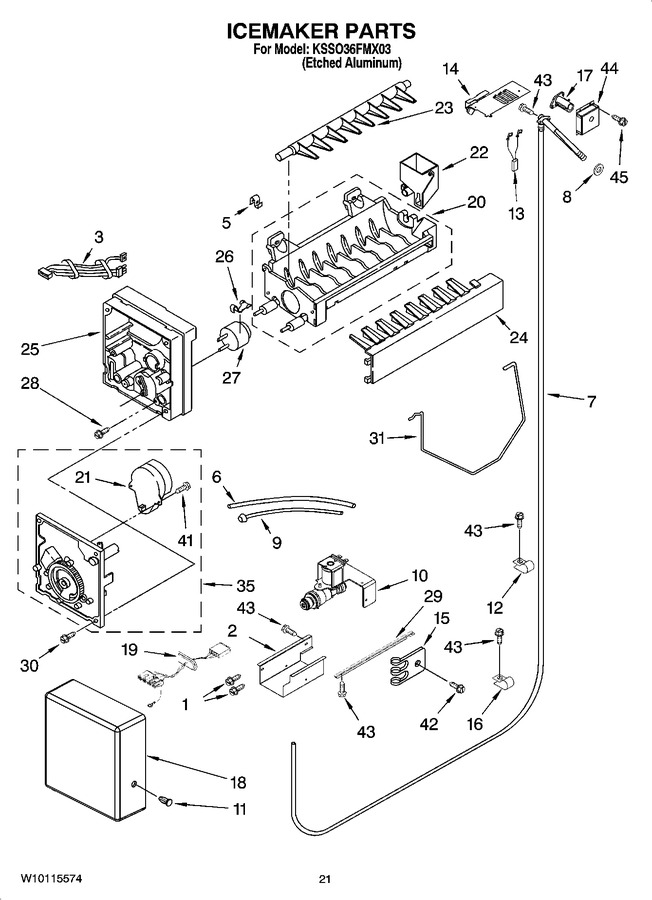

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP489128 | Screw (Replaces: 488500) |
|
$ 10.88 | |||||
| 2 | 2320597 | Shield, Valve Electrical |
|
- | |||||
| 3 | 2310136 | Wire Assembly, Icemaker |
|
$ 170.18 | |||||
| 5 | WP628379 | Clip, Fuse (Replaces: 628379) |
|
$ 10.57 | |||||
| 6 | 2320654 | Tube, Filter Inlet |
|
$ 54.75 | |||||
| 7 | 2320670 | Water Inlet Tube Assembly |
|
- | |||||
| 8 | WP1106508 | Seal Gasket (Replaces: 1106508) |
|
Immediately | $ 9.93 | ||||
| 9 | W11533506 | Tube, Filter Outlet (Replaces: 2317912) |
|
Immediately | $ 31.57 | ||||
| 10 | WP2307650 | Valve, Solenoid (Replaces: 2307650) |
|
Immediately | $ 203.52 | ||||
| 11 | 489115 | Fastener-snap In |
|
$ 5.51 | |||||
| 12 | W10833902 | Clamp, Tube (Replaces: 2221070) |
|
$ 10.99 | |||||
| 13 | 2310108 | Jumper, Fill Tube Heater |
|
- | |||||
| 14 | WP2221231 | Heat Shield (Replaces: 2221231) |
|
$ 85.08 | |||||
| 15 | WP488366 | Clamp, Nylon Valve (Replaces: 2208136) |
|
$ 11.18 | |||||
| 16 | 488946 | Clamp, Tube |
|
$ 20.45 | |||||
| 17 | WP2221240 | Heater, Fill Tube (Replaces: 2221240) |
|
$ 196.74 | |||||
| 18 | 2257538 | Cover |
|
- | |||||
| 19 | 2310193 | Wire Assy. (water Valve) |
|
- | |||||
| 20 | WPW10190929 | Mold & Heater (also Order 542638 Silicone Grease) (Replaces: 628228) |
|
$ 233.15 | |||||
| 21 | W10190935 | Motor (Replaces: 626676) |
|
Immediately | $ 110.07 | ||||
| 22 | WP628356 | Cup-water Fill (Replaces: 628356) |
|
$ 51.19 | |||||
| 23 | WP627843 | Ejector (Replaces: 627843) |
|
$ 83.60 | |||||
| 24 | WP2182124 | Ice Striper (Replaces: 2182124) |
|
$ 86.05 | |||||
| 25 | WP2195914 | Support (Replaces: 2195914) |
|
$ 104.57 | |||||
| 26 | WP2315522 | Retainer, Thermostat (2) (Replaces: 2315522) |
|
$ 11.05 | |||||
| 27 | WP627985 | Thermostat (also Order 542639 Cement Alumilastic) (Replaces: 627985) |
|
$ 109.18 | |||||
| 28 | 8533917 | Screw |
|
$ 13.37 | |||||
| 29 | 2320559 | Support, Valve |
|
$ 84.56 | |||||
| 30 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 7.86 | ||||
| 31 | W11807379 | Arm, Shut Off (Replaces: 2313990) |
|
Immediately | $ 60.20 | ||||
| 35 | 8201515 | Module Assembly (includes Items 21 & 41) (Replaces: 626678) |
|
Immediately | $ 141.64 | ||||
| 41 | 489136 | Screw, (2) |
|
$ 10.29 | |||||
| 42 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 7.83 | ||||
| 43 | W11624204 | Screw (Replaces: 486194) |
|
$ 14.02 | |||||
| 44 | 2259064 | Cover, Fill Tube |
|
$ 64.34 | |||||
| 45 | WP488729 | Screw (Replaces: 487539) |
|
Immediately | $ 7.79 | ||||
| 100 | 2220861 | Front Panel Kit (stainless Steel) |
|
- | |||||
| 100 | 2220855 | Front Panel Kit (black) |
|
- | |||||
| 100 | 2220852 | Front Panel Kit (white) |
|
- | |||||
| 100 | WPW10277450 | Complete Icemaker Assembly (Replaces: 2320638) |
|
Immediately | $ 268.05 | ||||
| 100 | 978849 | Static Cleaner, Black Acrylic Panel |
|
$ 15.82 |
