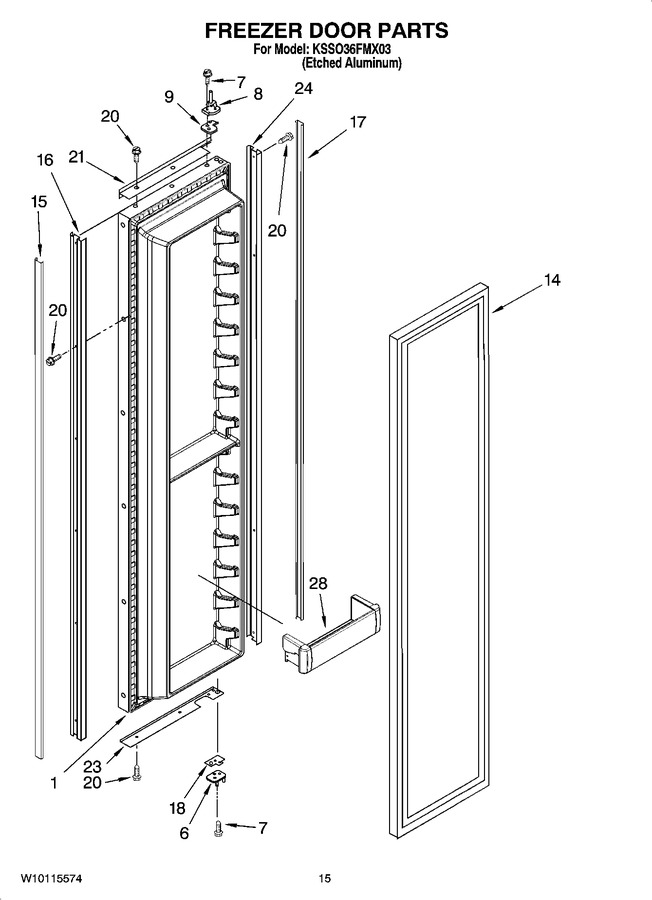

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2252326		Freezer Door Panel (includes Item 14)		Appelez-nous	-
6	W11752085		Hinge, Bottom   (Replaces: 2302879)				$ 63.07
7	W11474472		Screw   (Replaces: 489282)			Immediately	$ 8.63
8	W11724512		Hinge, Top   (Replaces: 2266854)				$ 312.50
9	2256381		Spacer-door, Top				$ 24.49
14	W11624976		Door Gasket, Magnetic   (Replaces: 2222813)			Immediately	$ 316.47
15	2259365X		Cover, Screw (handle Side) (etched Aluminum)				$ 102.27
16	2259041X		Trim, Door (handle Side) (etched Aluminum)				$ 194.71
17	2259448X		Cover, Screw (hinge Side) (etched Aluminum)		Appelez-nous	-
18	2257637		Door, Spacer				$ 15.45
20	WP8281250		Screw Stainless Steel   (Replaces: 8281250)				$ 11.42
21	2005019		Trim, Door (top) (etched Aluminum)		Appelez-nous	-
23	2215984		Trim (bottom) (etched Aluminum)		Appelez-nous	-
24	2257687X		Trim, Door (hinge Side) (etched Aluminum)		Appelez-nous	-
28	W10323601		Bin, Shelf F.c. (6)   (Replaces: 2222775)				$ 92.19
